Description

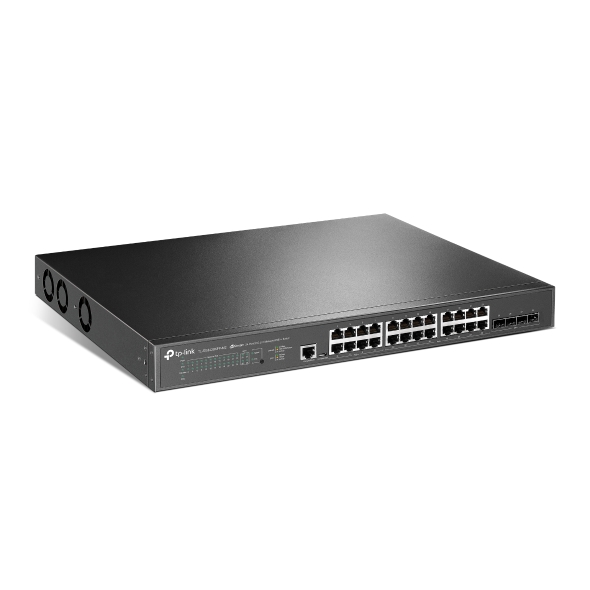

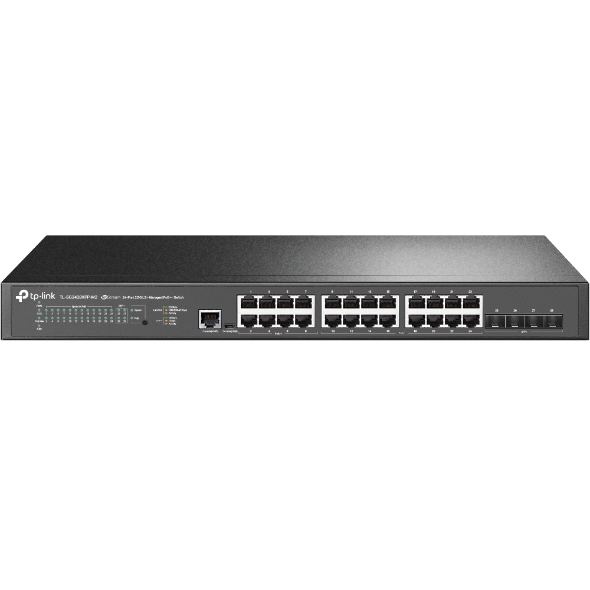

JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
- 2.5G PoE++/PoE+ Ports for WiFi 7/6E/6: 24? 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.
- 10G Lightning-Fast Uplink:?4? 10 Gbps?SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 500 W PoE Budget: 8נ802.3bt/at/af/-compliant PoE++ and 16נ802.3at/af-compliant PoE+ ports with a total power supply of 500 W*.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
SPECIFICATIONS
| Interface | ? 24? 2.5 Gbps RJ45 Ports ? 4? 10G SFP+ Slots ? 1? RJ45 Console Port ? 1? Micro-USB Console Port |
|---|---|
| Fan Quantity | 3 |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | ? Standard: 802.3bt/at/af compliant ? PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port ? PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port ? Power Budget: 500 W |
| Dimensions ( W x D x H ) | 17.3 ? 13.0 ? 1.7 in (440 ? 330 ? 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 629.1 W (110V/60Hz) |
| Max Heat Dissipation | 2153.45 BTU/h (110 V/60 Hz) |
