Description

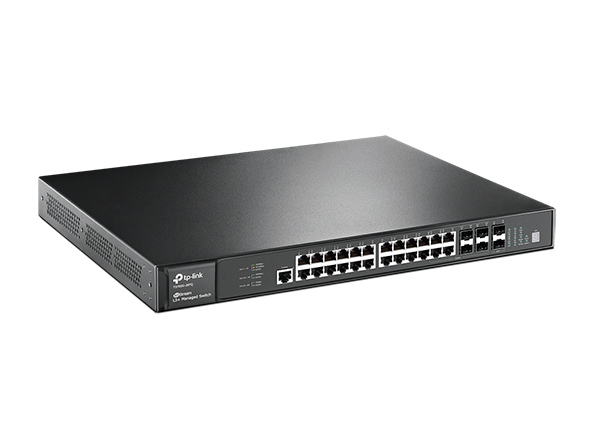

T3700G-28TQ
JetStream 28-Port Gigabit Stackable L3 Managed Switch
- Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
- True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
- 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery

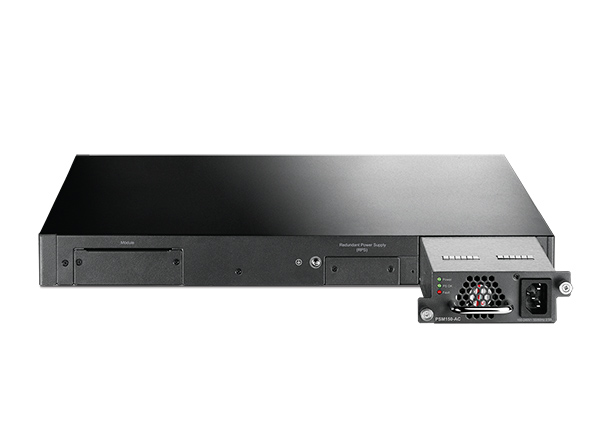

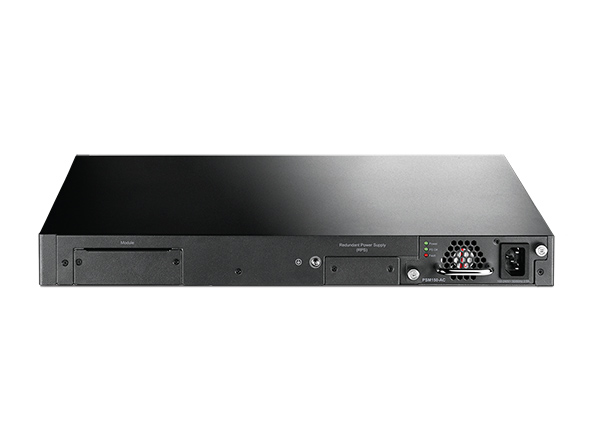

- Removable power unit and redundant power supply functionality minimizes downtime
- PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 combo gigabit SFP Slots Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots) 1 Console Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR |
| Fan Quantity | 4 |
| Physical Security Lock | No |
| Power Supply | 100~240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 17.32*13*1.73 in.(440*330*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 63W (220V/50Hz) |
| Max Heat Dissipation | 214.96 BTU/h |
| PHYSICAL STACKING | |
|---|---|
| Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables | TXM431-SR TXM431-LR TXC432-CU1M TXC432-CU3M |
| Max Number of Stacking Ports Installable | 2 SFP+ |
| Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
| No. of Units Per Stack | 8 |
| PERFORMANCE | |
|---|---|
| Switching Capacity | Up to 128Gbps for a standalone switch |
| Bandwidth/Backplane | Up to 320Gbps when 8 units in the stack |
| Packet Forwarding Rate | Up to 95.2Mpps for a standalone switch |
| MAC Address Table | 32K |
| Packet Buffer Memory | 16 Mbits |
| Jumbo Frame | 10K Bytes |
| Number of Routes | 12K |
| Number of Static Routes | 256 |
| Number of IP Interfaces | 128 |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
| L3 Features | Wire-speed IP forwarding Static Routing RIP v1, v2 OSPF v2 ECMP PIM-SM/PIM-DM/IGMP DHCP Server/Relay ARP Proxy VRRP |
| L2 Features | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 32 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP |
| Access Control List | L2?L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
| Security | IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements | Microsoft? Windows? 98SE, NT, 2000, XP, Vista? or Windows 7/8, MAC? OS, NetWare?, UNIX? or Linux. |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
