Description

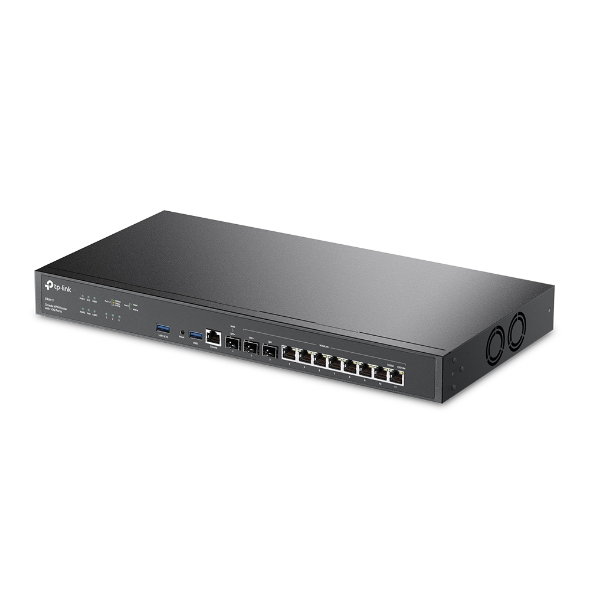

ER8411
Omada VPN Router with 10G Ports
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Two 10GE SFP+?Ports: 1? WAN and 1? WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
- Up to 10?WAN Ports: Fiber and RJ45 WAN ports?with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and?for WFH.
- Abundant Security Features: Powerful?Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide?world-class security.
| SECURITY | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | ? WEB Group Filtering*5 ? URL Filtering ? Web Security*5 |
| ARP Inspection | ? Sending GARP Packets*5 ? ARP Scanning*5 ? IP-MAC Binding*5 |
| Attack Defense | ? TCP/UDP/ICMP Flood Defense ? Block TCP Scan (Stealth FIN/Xmas/Null) ? Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | ? IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q ? TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN |

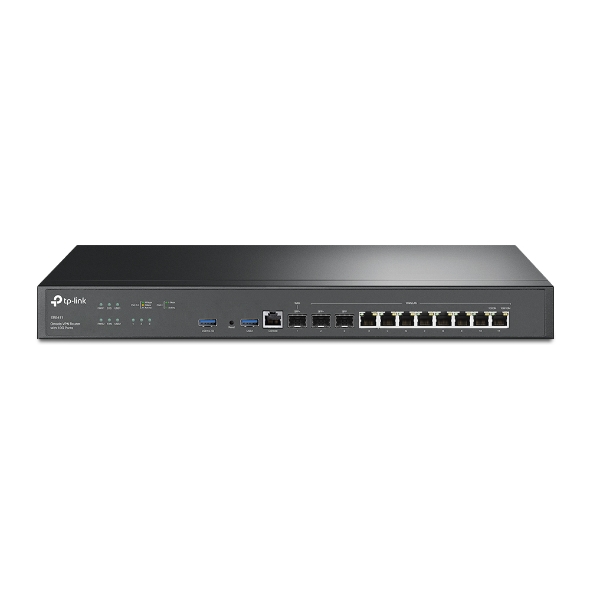

| Interface | ? 2? 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) ? 1? 1GE SFP WAN/LAN Ports ? 8? 1GE RJ45 WAN/LAN Ports ? 1? RJ45 Console Ports ? 2? USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Network Media | ? 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) ? 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) ? 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | 2 |
| Button | Reset Button |

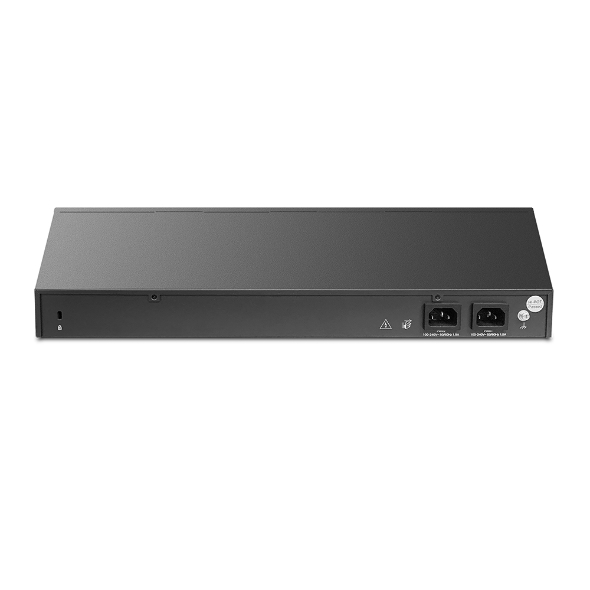

| Power Supply | Redundant Dual Power Supplies (100?240 VAC, 50/60 Hz) |
| PoE Budget | – |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 17.3 ? 8.7 ? 1.7 in (440 ? 220 ? 44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rack Mountable |
| Max Power Consumption | ? 26.36 W (with USB 3.0 connected) ? 19.12 W (without USB 3.0 connected) |
| PERFORMANCE | |
|---|---|
| IPS Throughput | TCP: 4924 Mbps; UDP: 4521 Mbps |
| DPI Throughput | TCP: 5524 Mbps; UDP: 3547 Mbps |
| WireGuard VPN | 1411 Mbps |
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | ? Upload: 9445.82 Mbps ? Download: 9449.26 Mbps |
| NAT(DHCP) | ? Upload: 9426.83 Mbps ? Download: 9426.20 Mbps |
| NAT(PPPoE) | ? Upload: 9413.96 Mbps ? Download: 9102.01 Mbps |
| NAT (L2TP) | ? Upload: 4230.62 Mbps ? Download: 4169.53 Mbps |
| NAT (PPTP) | ? Upload: 3933.86 Mbps ? Download: 3821.97 Mbps |
| 64 Byte Packet Forwarding Rate | ? Upload: 1080 Mbps ? Download: 1030 Mbps |
| IPsec VPN Throughput | ? SHA1-AES256: 2140.45 Mbps ? SHA2-AES256: 2080.20 Mbps |
| OpenVPN | 1665.64 Mbps |
| L2TP VPN Throughput | ? Unencrypted: 5013.50 Mbps ? Encrypted: 2274.74 Mbps |
| PPTP VPN Throughput | ? Unencrypted: 10143 Mbps ? Encrypted: 952 Mbps |
| SSL VPN Throughput | 1511.10 Mbps |
| 66 Byte Packet forwarding rate | – |
| 1,518 Byte Packet forwarding rate | ? Upload: 9970 Mbps ? Download: 9970 Mbps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | ? Static/Dynamic IP ? PPPoE ? PPTP ? L2TP ? 6to4 Tunnel ? Pass-Through ? Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address*4 |
| DHCP | ? DHCP Server/Client ? DHCP Address Reservation ? Multi-net DHCP ? Multi-IP Interfaces |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | ? Static Routing ? Policy Routing |
| Bandwidth Control | ? IP/Port-based Bandwidth Control ? Guarantee & Limited Bandwidth |
| Load Balance | ? Intelligent Load Balance ? Application Optimized Routing ? Link Backup (Timing*5, Failover) ? Online Detection |
| NAT | ? One-to-One NAT*5 ? Multi-Net NAT ? Virtual Server ? Port Triggering*5 ? NAT-DMZ ? FTP/H.323/SIP/IPSec/PPTP ALG ? UPnP |
| Security | ? SPI Firewall ? VPN Passthrough ? FTP/H.323/PPTP/SIP/IPsec ALG ? DoS Defence, Ping of Death ? Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| SSL VPN | ? SSL VPN Server ? SSL VPN Client ? 500 OpenVPN Tunnels |
| IPsec VPN | ? 300 IPSec VPN Tunnels ? LAN-to-LAN, Client-to-LAN ? Main, Aggressive Negotiation Mode ? DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm ? IKE v1/v2 ? MD5, SHA1 Authentication Algorithm ? NAT Traversal (NAT-T) ? Dead Peer Detection (DPD) ? Perfect Forward Secrecy (PFS) |
| PPTP VPN | ? PPTP VPN Server ? PPTP VPN Client (32)*6 ? 300 Tunnels (Shared with L2TP) ? PPTP with MPPE Encryption |
| L2TP VPN | ? L2TP VPN Server ? L2TP VPN Client (32)*6 ? 300 Tunnels (Shared with PPTP) ? L2TP over IPSec |
| OpenVPN | ? OpenVPN Server ? OpenVPN Client (10)*6 ? 110 OpenVPN Tunnels |
| AUTHENTICATION | |
|---|---|
| Web Authentication | ? No Authentication ? Simple Password*2 ? Hotspot?Local User / Voucher*2?/ SMS*2?/ Radius*2? ? External Radius Sever ? External Portal Sever*2 ? Facebook Check-In*2 ? Instagram Follow*2 |
| MANAGEMENT | |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | ? Omada Hardware Controller (OC300) ? Omada Hardware Controller (OC200) ? Omada Software Controller ? Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | ? Web Management Interface ? Remote Management ? Export & Import Configuration ? SNMP v1/v2c/v3 ? Diagnostics (Ping & Traceroute)*5 ? NTP Synchronize*5 ? Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | ? Automatic Device Discovery ? Intelligent Network Monitoring ? Abnormal Event Warnings ? Unified Configuration ? Reboot Schedule ? Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | ? Omada 10G Multi-WAN Security Gateway ER8411 ? Power Cord ? Rack-Mount Kit ? Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista? or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | ? Operating Temperature: 0?40 ? (32?104 ?); ? Storage Temperature: -40?70 ? (-40?158 ?) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
