Description

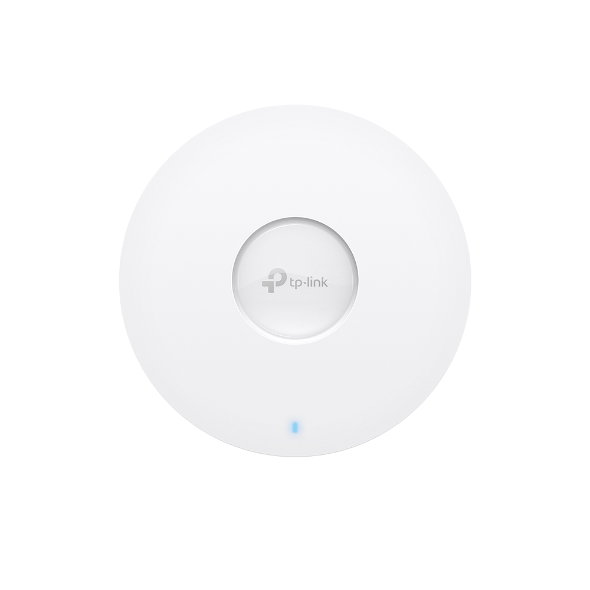

EAP610
AX1800 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds:?Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.?
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.?
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.?
- PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
- Ultra-Slim Design: ?160 mm ? 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1? Gigabit Ethernet (RJ-45) Port |
| Button | Reset |
| Power Supply | V2 and above: ? 802.3at PoE ? 48 V Passive PoE ? 12 V / 1.5 A DC (Power Adapter included) |
| Power Consumption | V2 and above: ? EU: 13.7 W (For PoE); 12.3 W (for DC) ? US: 14.2 W (For PoE); 12.8 W (for DC) |
| Dimensions ( W x D x H ) | V2 and above: 6.3 ? 6.3 ? 1.3 in (160 ? 160 ? 33.6 mm) |
| Antenna Type | Internal Omni Antenna ? 2.4 GHz: 2? 4 dBi ? 5 GHz: 2? 5 dBi |
| Mounting | ? Ceiling /Wall Mounting (Kits included) ? Junction Box Mounting |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 115?(1250 ft?)*** |
| Wireless Client Capacity | 250+** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | ? 5 GHz: Up to 1201 Mbps ? 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | ? 1024-QAM ? 4? Longer OFDM Symbol ? OFDMA ? Multiple SSIDs (Up to 16 SSIDs, 8 for each band) ? Enable/Disable Wireless Radio ? Automatic Channel Assignment ? Transmit Power Control (Adjust Transmit Power on dBm) ? QoS(WMM) ? MU-MIMO ? Seamless Roaming?? ? Omada Mesh? ? Band Steering ? Load Balance ? Airtime Fairness ? Beamforming ? Rate Limit ? Reboot Schedule ? Wireless Schedule ? Wireless Statistics based on SSID/AP/Client |
| Wireless Security | ? Captive Portal Authentication? ? Access Control ? Wireless Mac Address Filtering ? Wireless Isolation Between Clients ? SSID to VLAN Mapping ? Rogue AP Detection ? 802.1X Support ? WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | ? CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) ? FCC: |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | ? Omada Cloud-Based Controller ? Omada Hardware Controller OC300 ? Omada Hardware Controller OC200 ? Omada Software Controller |
| Cloud Access | Yes, through ? OC300 ? OC200 ? Omada Software Controller ? Omada Cloud-Based Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

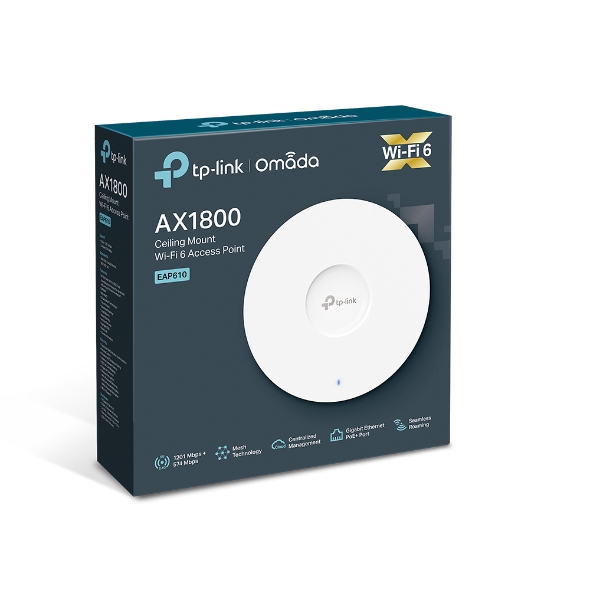

| Package Contents | ? EAP610 ? Power Adapter ? Ceiling/ Wall Mounting Kits ? Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | ? Operating Temperature: 0?40 ? (32?104 ?) ? Storage Temperature: -40?70 ? (-40?158 ?) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
