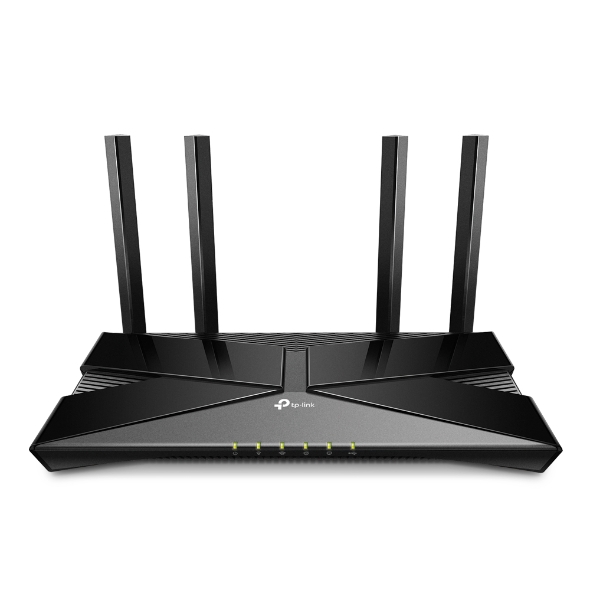

TP-LINK ARCHER AX20 AX1800 WIFI6 ROUTER Archer-AX20
TP-LINK ARCHER AX20 AX1800 WIFI6 ROUTER Archer-AX20 - Image 2
TP-LINK ARCHER AX20 AX1800 WIFI6 ROUTER Archer-AX20 - Image 3

TP-LINK ARCHER AX20 AX1800 WIFI6 ROUTER Archer-AX20

$119.00

Out of stock

SKU: ARCHER-AX20 Category: Brand:

Description

Archer AX20

AX1800 Dual-Band Wi-Fi 6 Router

  • Dual-Band Wi-Fi 6 ??Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
  • Next-Gen 1.8?Gbps Speeds ??Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8 Gbps.?
  • Connect More Devices ??Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.??
  • Extensive Coverage???Beamforming, independent FEM, and four antennas combine?to deliver focused reception to devices far away.
  • OneMesh Compatible???Use with OneMesh extenders to get whole-home coverage and enjoy smooth roaming between signals.
  • Increased Battery Life ??Target Wake Time technology reduces your devices’ power consumption to extend their battery life.?
  • USB Easy Sharing???A USB 2.0 Port enables easy?file sharing within your network or building private Cloud Storage.
  • Easy Setup ??Set up your router in minutes with the powerful TP-Link Tether App.
  • Backward Compatible ??Supports all previous 802.11 standards and all Wi-Fi devices.
Buy Now
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 2-3 Bedroom Houses

4? Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity High

Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1? 5 GHz Guest Network
1? 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
VPN Client ? Open VPN Client
? PPTP VPN Client
? L2TP VPN Client
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor 1.5 GHz Quad-Core CPU
Ethernet Ports 1? Gigabit WAN Port
4? Gigabit LAN Ports
USB Support 1? USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons WPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power 12 V ? 1.5 A
SOFTWARE
Protocols IPv4
IPv6
OneMesh? OneMesh? Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh? helps you create a more flexible network that covers your entire home with TP-Link OneMesh? products.
Learn More>
All OneMesh Products>
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm
11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm
11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm
11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-97dBm
11n HT20_MCS0:-97dBm
11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm
11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm
11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm
11ax HE40_MCS11:-61dBm
PHYSICAL
Dimensions (W?D?H) 10.2 ? 5.3 ?1.5 in
(260.2 ? 135.0 ? 38.6 mm)
Package Contents Wi-Fi Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
