Description
TL-SG1005LP
5-Port Gigabit Desktop PoE Switch with 4-Port PoE+
- 5? 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works?with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports*

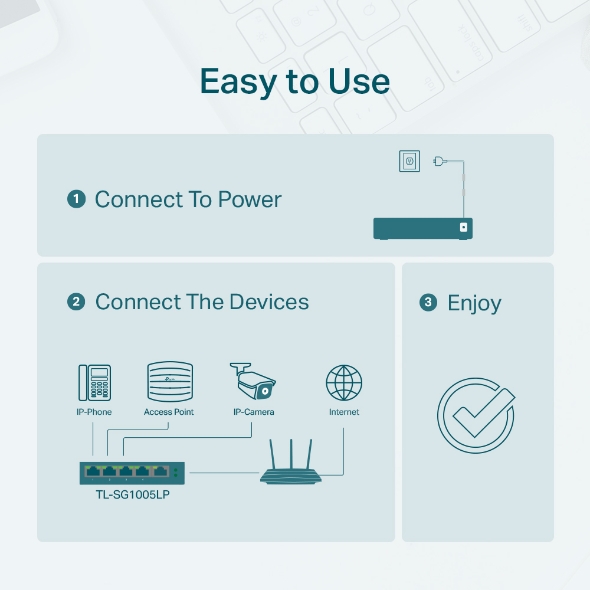

- Plug and play,?no configuration and installation required
| HARDWARE FEATURES | |
|---|---|
| Interface | ? 5? 10/100/1000Mbps RJ45 Ports ? AUTO Negotiation ? AUTO MDI/MDIX |
| Network Media | ? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | ? Standard: 802.3 af/at compliant ? PoE Ports: Ports 1?4 ? Power Supply: 40 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9?3.9?1.0 in (99.8?98?25 mm) |
| Max Power Consumption | ? 4.12 W (220/50 Hz. no PD connected) ? 47.5 W (220/50 Hz. with 40 W PD connected) |
| Max Heat Dissipation | ? 14.05 BTU/h (no PD connected) ? 161.98 BTU/h (with 40 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | ? Compatible With IEEE 802.3af/at Compliant PDs ? Mac Address Auto-Learning And Auto-Aging ? IEEE 802.3x Flow Control ? 802.1p/DSCP QoS ? IGMP Snooping |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | ? TL-SG1005LP ? Power Adapter ? Installation Guide |
| Environment | ? Operating Temperature: 0?40 ? (32?104 ?); ? Storage Temperature: -40?70 ? (-40?158 ?) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
