Description
EAP115

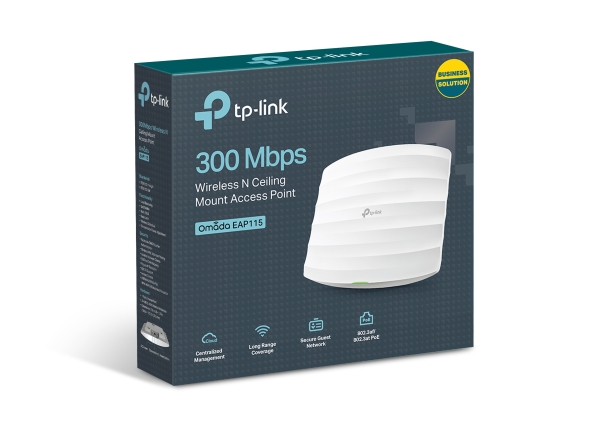

300Mbps Wireless N Ceiling Mount Access Point
- Integrated into Omada SDN: Centralized Cloud Management?and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
- PoE?Support:?Supports Power over Ethernet (802.3af/at) for convenient?deployment.
- Easy Installation:?Simple mounting design for easy attachment to a wall or ceiling.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.*
- Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
- Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1? Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE) |
| Button | Reset |
| Power Supply | 802.3af PoE or external 9VDC/0.6A power supply |
| Power Consumption | 2.8 W |
| Dimensions ( W x D x H ) | 7.5?6.8?1.2 in (189.4?172.3?29.5mm) |
| Antenna Type | Internal 2? 4 dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 60?(650ft?)? |
| Wireless Client Capacity | 100+** |
| Concurrent Clients | 100+** |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4?2.4835 GHz |
| Signal Rate | ? 11n: Up to 300Mbps(dynamic) ? 11g: Up to 54Mbps(dynamic) ? 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | ? 300M: -71dBm@10% PER ? 150M: -75dBm@10% PER ? 54M: -78dBm@10% PER ? 11M: -93dBm@8% PER ? 6M: -92dBm@10% PER ? 1M: -96dBm@8% PER |
| Wireless Functions | ? Multiple SSIDs (Up to 8 SSIDs) ? Enable/Disable Wireless Radio ? Automatic Channel Assignment ? Transmit Power Control (Adjust Transmit Power on dBm) ? QoS(WMM) ? Rate Limit ? Reboot Schedule ? Wireless Schedule ? Wireless Statistics based on SSID/AP/Client |
| Wireless Security | ? Captive Portal Authentication ? Access Control ? Wireless MAC Address Filtering ? Wireless Isolation Between Clients ? SSID to VLAN Mapping ? Rogue AP Detection ? 802.1X Support ? 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | ? CE: ?19 dBm (EIRP) ? FCC: ?21 dBm |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | ? Omada Hardware Controller (OC300) ? Omada Hardware Controller (OC200) ? Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | ? 300Mbps Wireless N Ceiling Mount Access Point EAP115 ? Power Adapter ? Mounting Kits ? Installation Guide |
| System Requirements | Microsoft Windows 11/10/8/7/Vista/XP, Linux |
| Environment | ? Operating Temperature: 0?40 ? (32?104 ?) ? Storage Temperature: -40?70 ? (-40?158 ?) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
