Description

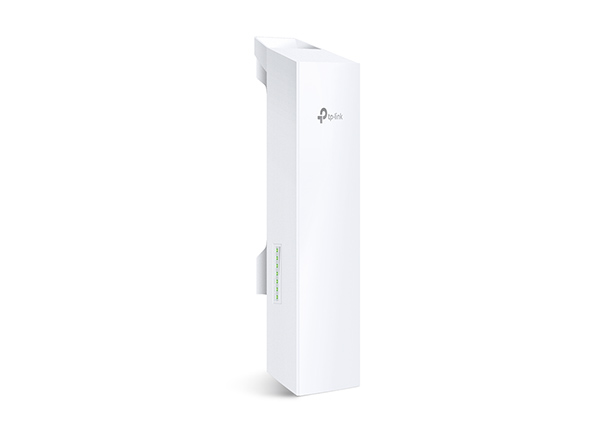

2.4GHz 300Mbps 12dBi Outdoor CPE-CPE220
- Built-in 12dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 30dBm/1000mw
- System-level optimizations for more than 13km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System ? Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
SPECIFICATIONS
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 24Kc |
|---|---|
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1) 1 Grounding Terminal 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Power Consumption | 10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 11?3.1?2.1 inch (276?79?60 mm) |
| Antenna Type | Built-in 12dBi 2×2 Dual-polarized Directional Antenna Beam Width: 60? (H-Plane) / 30? (E-Plane) Note: For more details, please refer to datasheet |
| Protection | 15KV ESD Protection 6KV Lightning Protection |
