Description

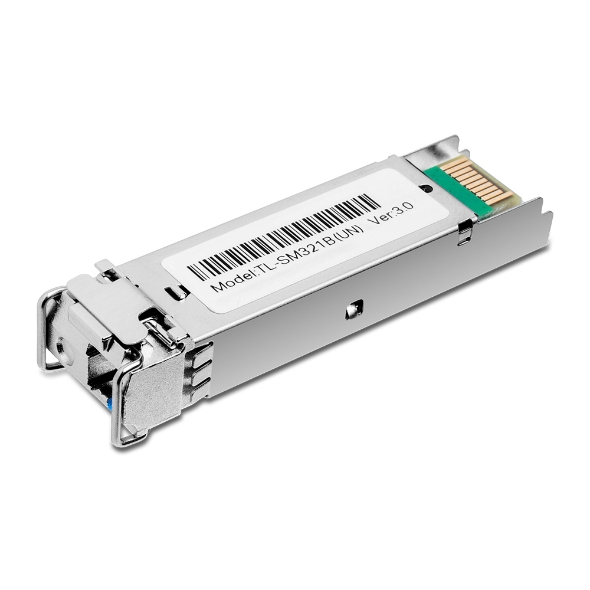

TL-SM321B
1000Base-BX WDM Bi-Directional SFP Module
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | ? SFP Module TL-SM321B ? Installation Guide |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | TX: 1310 nm RX: 1550 nm |
| Dimensions (W*D*H) | 2.2*0.6*0.5 in (55.4*14.6*12.9 mm) |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 ?m Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Environment | Operating Temperature: 0?70 ?C (32?158 ?F) Storage Temperature: -40?85 ?C ( -40?185 ?F) Operating Humidity: 10?90% RH, Non-Condensing Storage Humidity: 5?90% RH, Non-Condensing |
