Description

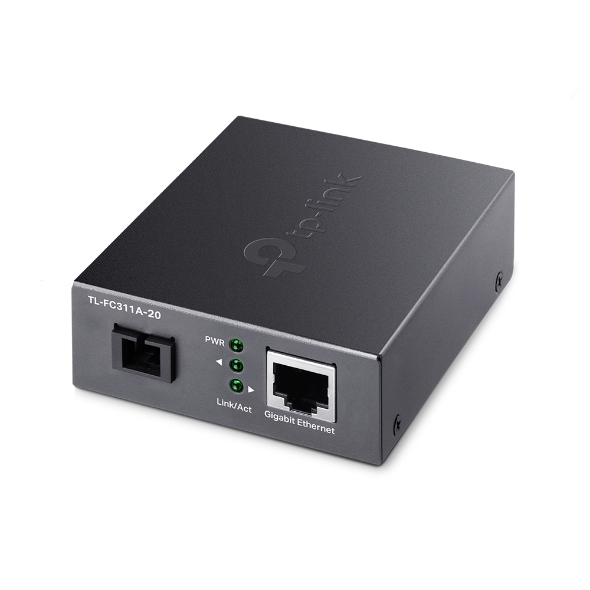

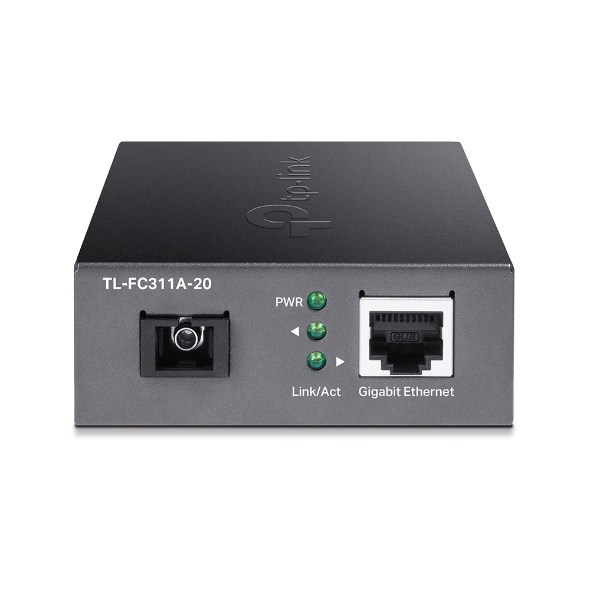

TL-FC311A-20
Gigabit WDM Media Converter
- 1נ10/100/1000Mbps Auto-Negotiation RJ45 port?supports?Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Interface | ? 1? Gigabit SC Fiber Port ? 1? 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | ? Single-mode Fiber ? UTP category 5, 5e cable (maximum 100m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Dimensions ( W x D x H ) | 3.7?2.9?1.1 in (94.5?73.0?27.0 mm) |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Fiber Type | 9/125 ?m single-mode fiber |
| OTHERS | |
|---|---|
| Package Contents | ? Media Converter TL-FC311A-20 ? Power Adapter ? Installation Guide |
