🛍️ Product Name

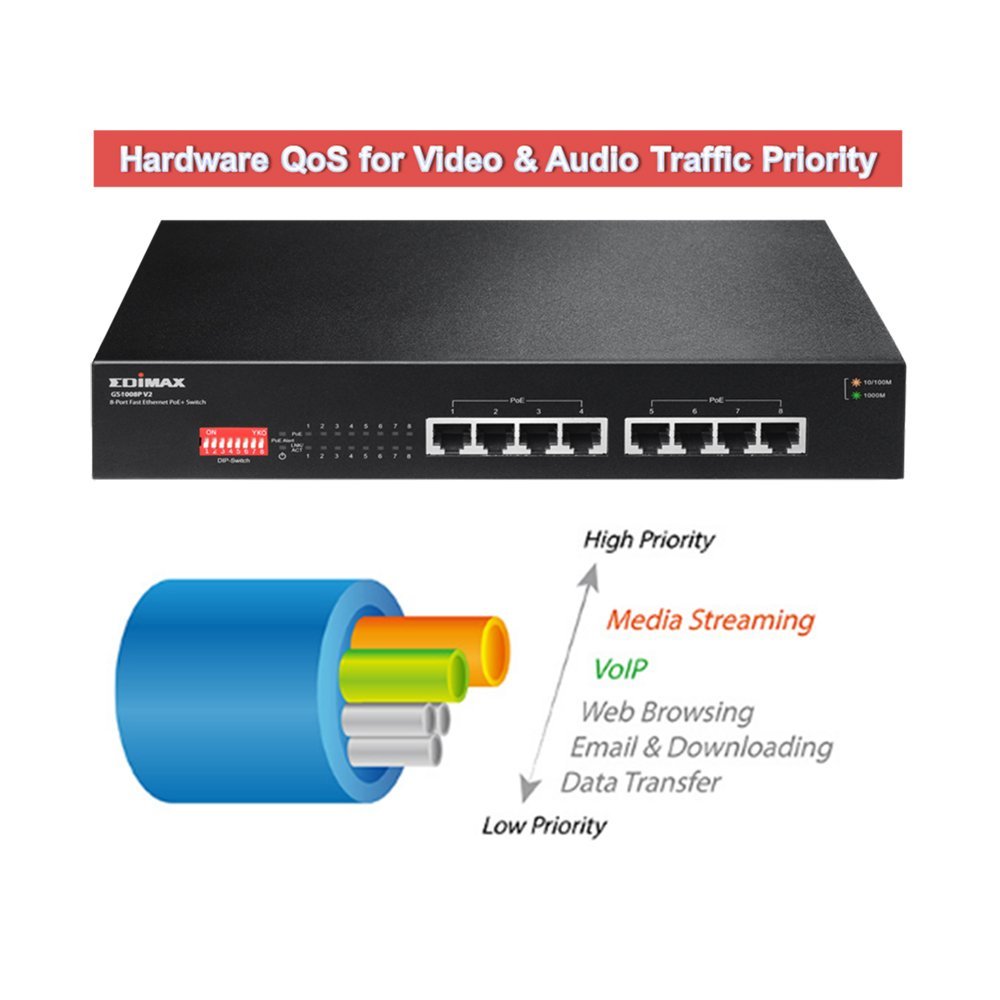

Edimax ES-1008P-V2 – 8-Port Gigabit PoE+ Switch, 802.3af/at, 160W Total Budget, DIP Switch, Long-Range Mode
📦 Product Overview
The Edimax ES-1008P-V2 is a high-power Gigabit PoE+ switch designed for small and medium-sized networks. It features 8 × 10/100/1000Mbps RJ45 ports, all supporting IEEE 802.3af/at PoE+ standards. Each port delivers up to 30W, with a total power budget of 160W. DIP switch controls allow toggling between Standard and Extend modes, enabling up to 200m PoE transmission at 10Mbps. The switch includes port-based VLAN, loop protection, and QoS features for enhanced network stability and performance.
🌟 Top Highlights
🔌 8 × PoE+ Ports – Up to 30W per port, 160W total
📶 Long-Range PoE Mode – Extend up to 200m at 10Mbps
🎛️ DIP Switch Control – Standard/Extend mode toggle
🛡️ VLAN & Loop Protection – Enhanced network stability
⚡ Gigabit Performance – Full-speed 10/100/1000Mbps switching
📐 Technical Details
| Specification | Details |
|---|---|
| Model | ES-1008P-V2 |
| Ports | 8 × 10/100/1000Mbps RJ45 (PoE+) |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 160W total, 30W max per port |
| Power Supply | Internal (AC 100–240V) |
| DIP Switch Modes | Standard / Extend (200m at 10Mbps) |
| Features | Port-based VLAN, Loop Protection, QoS |
| Switching Capacity | 16Gbps |
| Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K entries |
| Dimensions | 240 × 105 × 27 mm |
| Weight | Approx. 0.9 kg |
💡 Why You Should Buy It
✅ Full 8-port PoE+ support with high power budget
✅ Long-range mode for extended cable runs
✅ VLAN and loop protection for network integrity
✅ Ideal for IP surveillance, APs, and VoIP deployments
🎯 Recommended Use Cases
➤ IP camera and surveillance networks
➤ Wireless access point deployments
➤ VoIP phone systems
➤ Small business and office networks
🤝 Customer Assurance
🛡️ Warranty / Guarantee: 2-Year Manufacturer Warranty
🔄 Returns Policy: 30-day return window (varies by seller)
🚚 Shipping Info: Global shipping options available
📞 Customer Support: Edimax support and authorized resellers
👉 Call to Action
Deploy high-power PoE+ with Edimax ES-1008P-V2 — reliable, flexible, and built for demanding networks.
