🛍️ Product Name

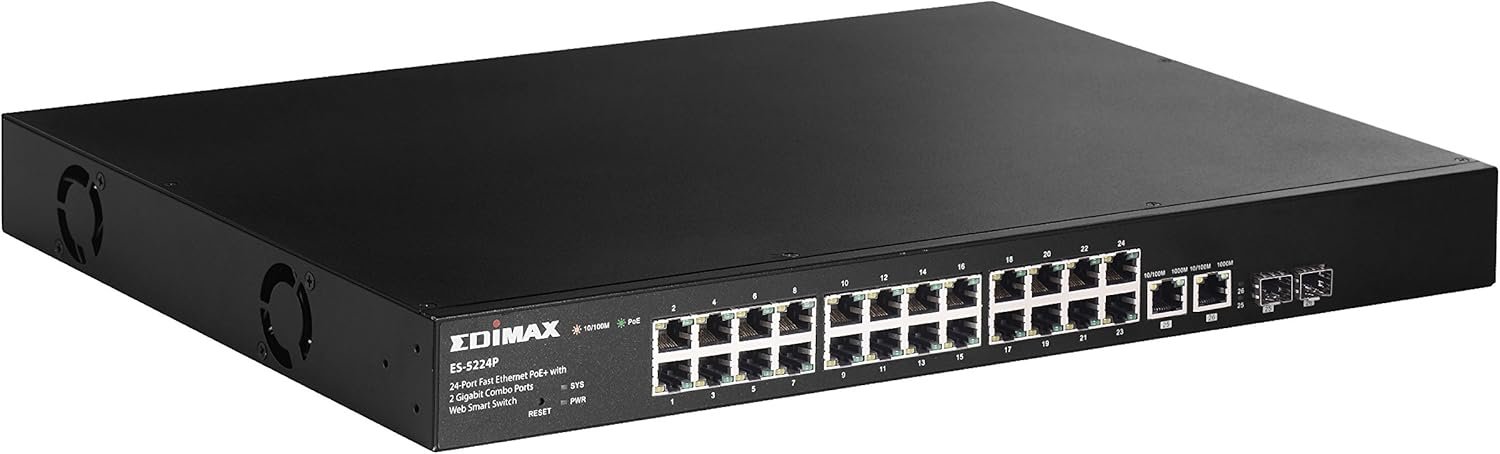

EDIMAX ES-5224P – 24-Port Fast Ethernet PoE+ Web-Smart Switch with 2 Gigabit Combo Uplink Ports, 400W PoE Budget, Rack-Mountable
📦 Product Overview
The Edimax ES-5224P is a web-smart switch designed for growing business networks that require high-density PoE+ deployment. With 24 Fast Ethernet PoE+ ports and 2 Gigabit combo uplink ports, it delivers both data and power to devices like IP cameras, VoIP phones, and wireless access points. Its 400W PoE budget, VLAN support, and IGMP Snooping make it ideal for scalable, secure, and efficient network infrastructure.
🌟 Top Highlights
🔌 24 PoE+ Ports – IEEE 802.3af/at compliant with up to 30W per port
🚀 2 Gigabit Combo Uplinks – Flexible backbone connectivity via RJ45 or SFP
🧠 Web-Smart Features – VLAN, QoS, and IGMP Snooping for traffic control
⚡ 400W PoE Budget – Supports multiple high-power devices simultaneously
🏗️ Rack-Mountable Design – 19-inch metal housing for professional installations
📐 Technical Details
| Specification | Details |
|---|---|
| Model | ES-5224P |
| Ethernet Ports | 24 x 10/100Mbps PoE+ Fast Ethernet |
| Uplink Ports | 2 x 10/100/1000Mbps Gigabit Combo (RJ45/SFP) |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 400W total, up to 30W per port |
| Switching Capacity | 4.4Gbps |
| MAC Address Table | 4K entries |
| VLAN Support | IEEE 802.1Q |
| IGMP Snooping | Version 1 & 2 |
| Form Factor | 19-inch rack-mountable metal case |
💡 Why You Should Buy It
✅ Supports high-density PoE deployments with 400W budget
✅ Enables secure, segmented networks with VLAN and IGMP
✅ Ideal for powering IP surveillance and wireless infrastructure
✅ Built for scalable SMB environments with smart management
🎯 Recommended Use Cases
➤ Powering IP cameras and VoIP phones
➤ Connecting wireless access points in large offices
➤ Segmenting traffic in enterprise networks
➤ Expanding LAN infrastructure with PoE+ support
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Power your growing network with Edimax — smart, scalable, and PoE+ ready.
