🛍️ Product Name

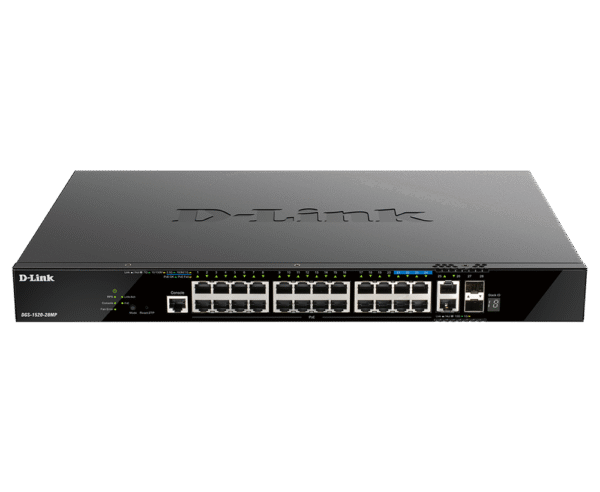

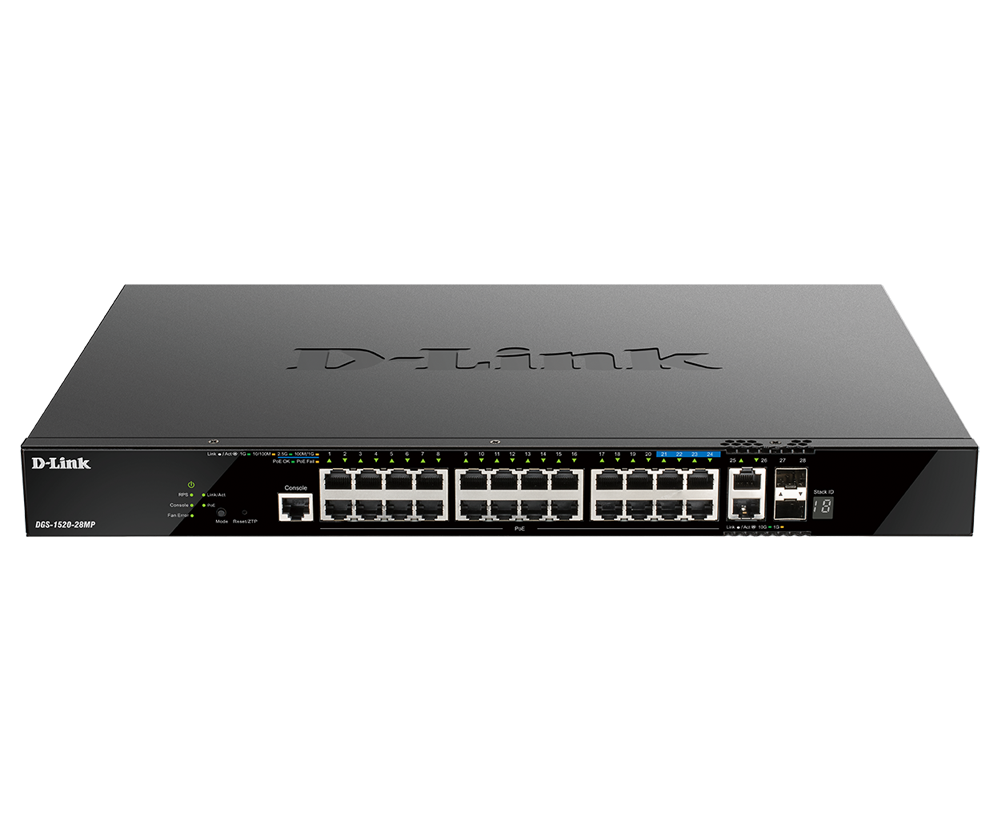

D-Link DGS-1520-28MP 28-Port Layer 3 Stackable Smart Managed PoE Switch – 20 x GbE PoE+, 4 x 2.5G PoE+, 2 x 10GBase-T, 2 x 10G SFP+, 370W Budget
📦 Product Overview
The D-Link DGS-1520-28MP is a next-generation Layer 3 smart managed switch designed for high-performance enterprise and campus networks. It features 20 Gigabit PoE+ ports, 4 multi-gigabit 2.5G PoE+ ports ideal for Wi-Fi 6 access points, and 4 10G uplinks (2 SFP+ and 2 copper). With a 370W PoE budget (expandable to 740W via RPS), physical stacking support for up to 8 switches, and advanced L2/L3 features including OSPF, RIP, and PIM multicast routing, it delivers scalable, secure, and efficient network control.
🌟 Top Highlights
🔌 24 PoE+ Ports – 20 x 1G + 4 x 2.5G PoE+ ports
🚀 4 x 10G Uplinks – 2 x 10GBase-T + 2 x 10G SFP+ for stacking or uplink
📦 370W PoE Budget – Expandable to 740W with optional RPS
📡 Wi-Fi 6 Ready – 2.5G PoE+ ports ideal for high-throughput APs
🧠 Advanced Layer 3 Features – OSPF, RIPng, PIM-SM/DM/SSM, IGMP, MLD
📐 Technical Details
| Specification | Details |
|---|---|
| Model | DGS-1520-28MP |
| Total Ports | 28 (20 x 1G PoE+, 4 x 2.5G PoE+, 2 x 10GBase-T, 2 x 10G SFP+) |
| PoE Standards | IEEE 802.3af/at |
| Max Power per Port | 30W |
| PoE Budget | 370W (expandable to 740W with RPS) |
| Switching Capacity | 216 Gbps |
| MAC Address Table | 32K entries |
| Packet Buffer Memory | 4.1 MB |
| Stacking | Physical: up to 8 units; Virtual: up to 32 units |
| Routing Protocols | OSPF, RIP/RIPng, PIM-SM/DM/SSM, IGMP v1/v2/v3, MLD v1/v2 |
| Management Interface | Web GUI, CLI, SNMP, Zero Touch Provisioning |
| Housing | Metal, rackmountable |
| Dimensions | 440 x 250 x 44 mm |
| Weight | 4.2 kg |
| Power Input | 100–240V AC, 50/60Hz internal power supply |
| Certifications | CE, FCC, VCCI, BSMI |
💡 Why You Should Buy It
✅ Powers Wi-Fi 6 APs and IP cameras with multi-gigabit PoE+ ports
✅ Supports 10G uplinks for core network integration
✅ Stackable for scalable enterprise deployments
✅ Advanced Layer 3 routing and multicast support
🎯 Recommended Use Cases
➤ Wi-Fi 6 access point deployments
➤ IP surveillance and VoIP networks
➤ Campus and enterprise edge switching
➤ High-speed uplink to core or data center
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through D-Link support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by trusted logistics partners with tracking support
📞 Customer Support: Assistance available via official D-Link channels and authorized resellers
👉 Call to Action
Deploy next-gen PoE+ switching with D-Link’s DGS-1520-28MP — scalable, secure, and Wi-Fi 6 ready.
