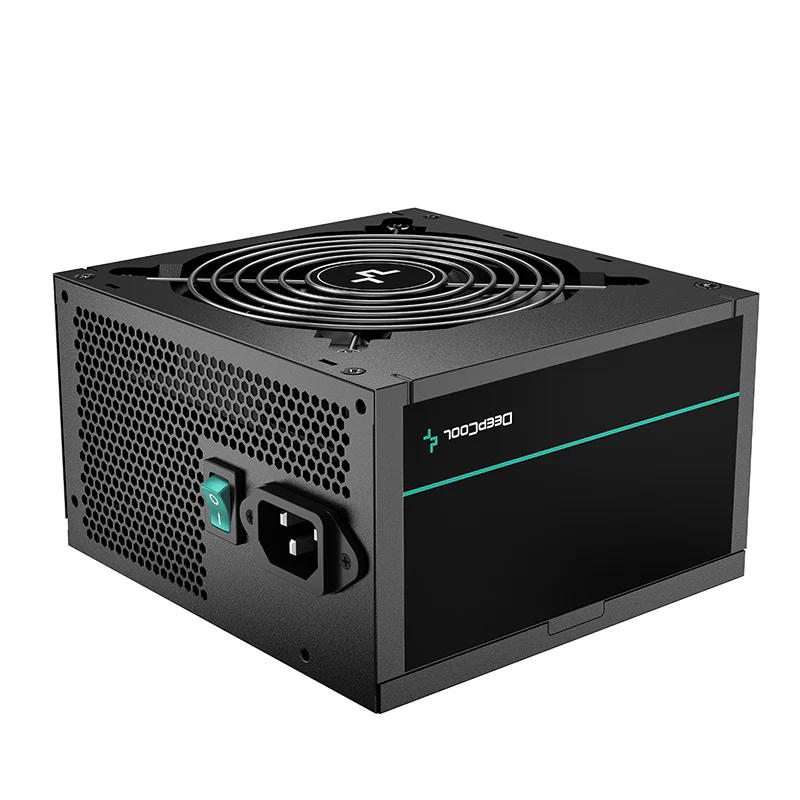

DeepCool PM850D-UK 850W 80 PLUS Gold Non-Modular Power Supply

The DeepCool PM850D-UK is a high-efficiency, non-modular ATX power supply unit built for demanding desktop PC builds. With 80 PLUS Gold certification, it delivers reliable and energy-efficient power to your system. Designed using high-quality Japanese capacitors and equipped with a silent 120mm Hypro Bearing cooling fan, it ensures optimal thermal management while operating quietly. Ideal for gaming and productivity systems, it provides the necessary stability and protection to power high-end CPUs and GPUs.

SPECIFICATIONS

• Model: PM850D-UK

• Type: ATX12V v2.4

• Power Output: 850W

• Efficiency Certification: 80 PLUS Gold

• Efficiency: ≥90% under typical 50% load

• Cooling Fan: 120mm Hypro Bearing Fan

• Topology: Full Bridge SRC LLC + DC to DC

• Capacitor Type: Japanese Bulk Capacitors

• Protections: OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OCP (Over Current Protection), UVP (Under Voltage Protection)

• Dimensions (L x W x H): 150 × 140 × 86 mm

• Connectors:

  • 1 × 24-pin Main Power

  • 2 × 4+4-pin CPU

  • 3 × 6+2-pin PCIe

  • 6 × SATA

  • 3 × 4-pin Peripheral (Molex)

• Power Factor Correction: Active PFC
