🛍️ Product Name

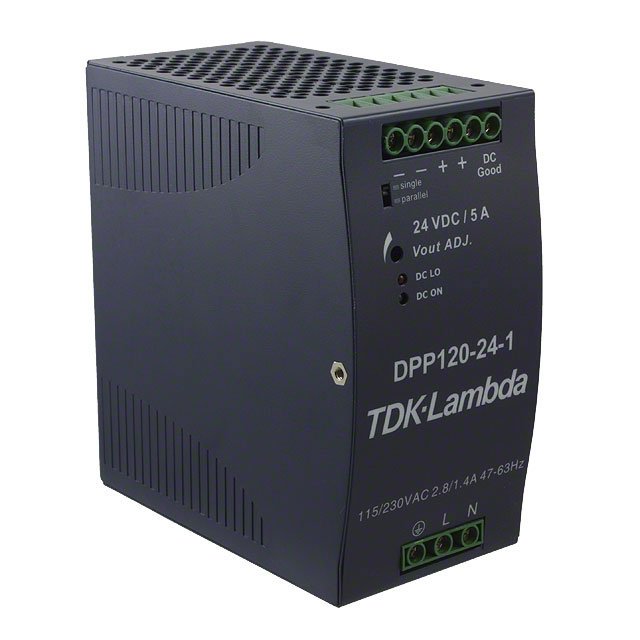

TDK-Lambda DPP120-24-1 AC/DC DIN Rail Power Supply – Single Output, 24V 5A, 120W, UL508 Compliant
📦 Product Overview
The TDK-Lambda DPP120-24-1 is a compact, industrial-grade AC/DC power supply designed for DIN rail mounting. Delivering a stable 24V output at up to 5A, it’s ideal for automation systems, control panels, and industrial equipment requiring reliable 120W performance. With global safety approvals and robust EMC compliance, it ensures dependable operation in demanding environments.
🌟 Top Highlights
⚡ Wide Input Range – Operates from 90–132VAC / 186–264VAC with auto-select
🔌 DIN Rail Mounting – TS35/7.5 or TS35/15 compatibility for streamlined installation
🛡️ UL508 Approved – Meets industrial safety standards for control equipment
🌍 Global Use – CE marked and suitable for worldwide deployment (except Japan)
📏 Compact Design – Saves panel space with efficient footprint
📐 Technical Details
| Specification | Details |
|---|---|
| Output Voltage | 24V DC |
| Output Current | 5A |
| Rated Power | 120W |
| Input Voltage Range | 90–132VAC / 186–264VAC (auto-select) |
| Input Frequency | 47–63Hz |
| Efficiency | Up to 87% |
| Mounting Type | DIN Rail (TS35/7.5 or TS35/15) |
| Operating Temperature | -10°C to +71°C (derating above 55°C) |
| Approvals | UL508, EN61000-3-2, CE |
| Dimensions | 50mm x 125mm x 100mm (W x H x D) |
| Weight | Approx. 0.6kg |
💡 Why You Should Buy It
✅ Trusted TDK-Lambda quality for industrial reliability
✅ Compact DIN rail design saves space in control cabinets
✅ Wide input range supports global installations
✅ UL508 compliance ensures safe integration in automation systems
🎯 Recommended Use Cases
➤ Industrial automation panels
➤ PLC and control systems
➤ Building management systems
➤ Machine tools and robotics
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Power your industrial systems with precision — choose TDK-Lambda DPP120-24-1 for dependable 24V output
