Description

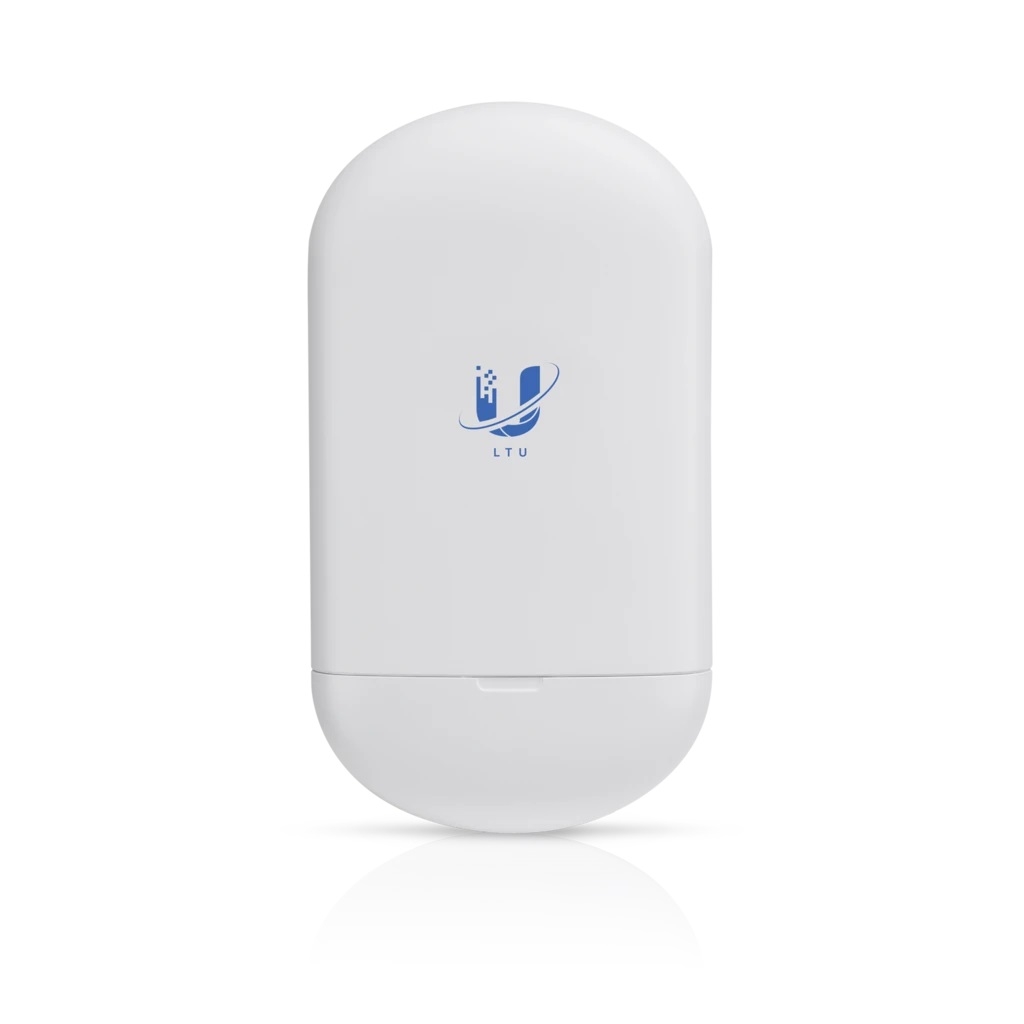

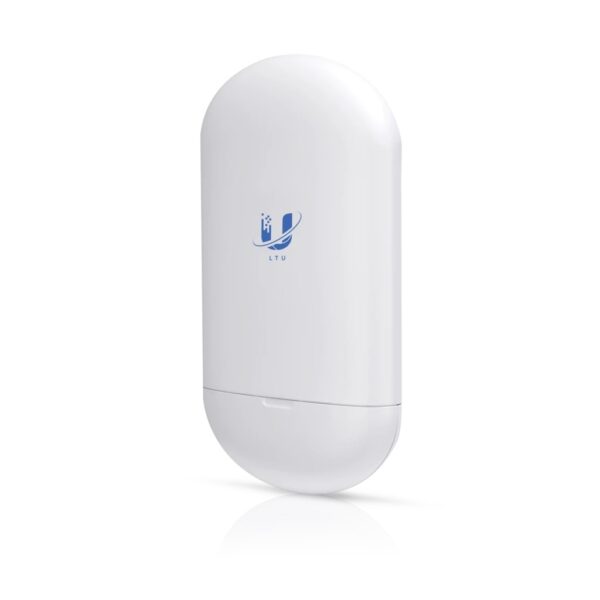

Ubiquiti UniFi 5 GHz PtMP LTU Client
CPE Modes
The LTU Lite supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split
The LTU Lite can use different frequencies for TX and RX to avoid interference.

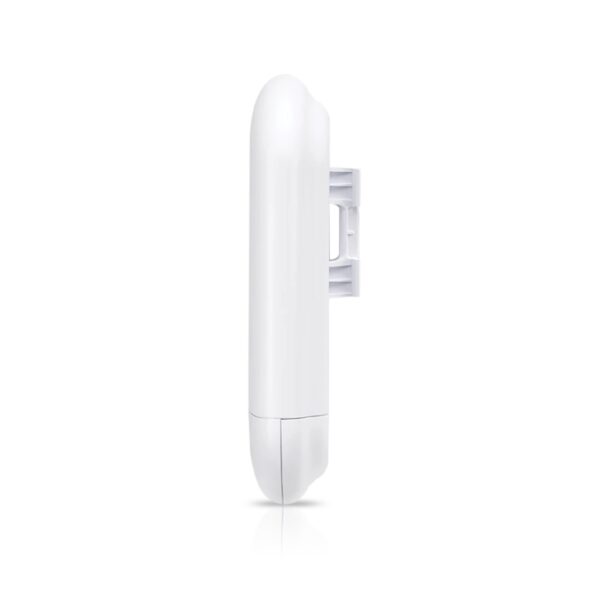

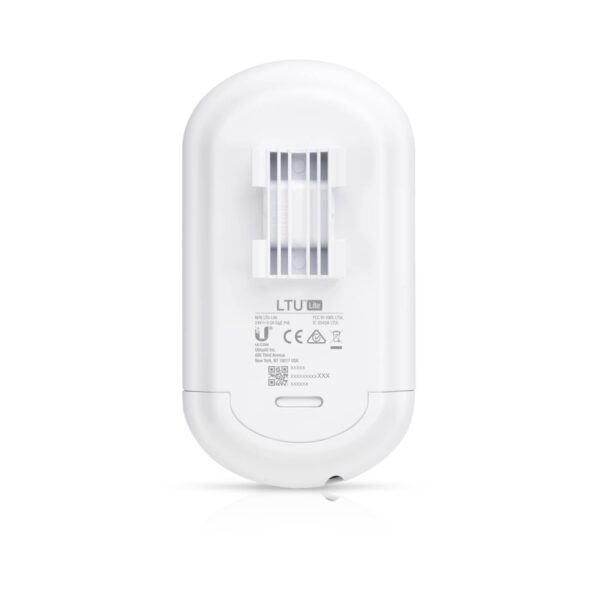

Convenient Mount Options
The LTU Lite is designed for quick yet reliable mounting on a pole or on a wall. All necessary mounting hardware is include.
Signal Control
The LTU Lite’s TX output power is controlled by the AP’s target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.
SPECIFICATIONS
| Dimensions | 153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56″) |
|---|---|
| Weight | 250 g (8.82 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 😎 |
| Supported Voltage Range | 22 – 26V |
