Description

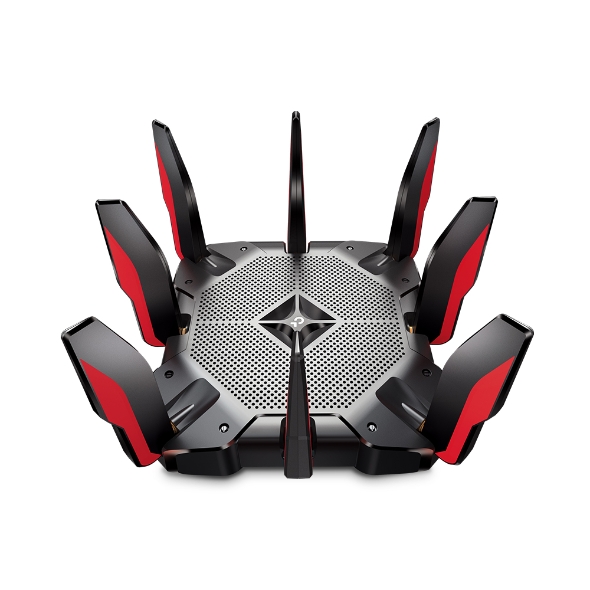

AX11000 Tri-Band Wi-Fi 6 Gaming Router
- Ultra-Fast Wi-Fi for Extreme Gaming???AX11000 speed machine that delivers 12-streams?Wi-Fi?Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
- Game Accelerator?? Detect and?optimize?gaming streams, to ensure your gaming stays immersive
- Game Protector?? Keep your accounts and documents safe with Homecare? security system powered by Trend Micro?.
- Game Statistics?? Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
- Ultra Connective?- 2.5 Gbps WAN port and eight Gigabit LAN ports,?2 USB 3.0 in Type A and Type C provide extensive connectivity.
- Powerful Processing???1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
- Highly Efficient?? OFDMA increases the avg. throughput and reduces the lag.
- Easy and Smart???Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX11000 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range | 4-6 Bedroom Houses
8? Detachable High-Performance Antennas Beamforming High-Power FEM 4T4R |
| WiFi Capacity | Very High
Tri-Band 4?4 MU-MIMO OFDMA Airtime Fairness DFS 12 Streams |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare? Antivirus Malicious Site Checker |
| Guest Network | 1? 5 GHz Guest Network 1? 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| VPN Client | OpenVPN PPTP L2TP |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Processor | 1.8 GHz 64 Bit Quad-Core CPU |
| Ethernet Ports | 1? 2.5 Gbps WAN Port 8? Gigabit LAN Ports Static Link Aggregation (LAG) available with 2? LAN ports |
| USB Support | 1? USB-C 3.0 Port 1? USB-A 3.0 Port Supported Partition Formats: Supported Functions: |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ? 5 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Game Center | Game Accelerator Detects and optimizes gaming streams to keep latency as low as possible Game Statistics Game Protector |
| Service Kits | HomeCare? Learn More> |
| OneMesh? | OneMesh? Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh? helps you create a more flexible network that covers your entire home with TP-Link OneMesh? products. Learn More> All OneMesh Products> |
| Parental Controls | HomeCare? Parental Controls
Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | Game Accelerator QoS QoS by Device HomeCare? QoS QoS by Application |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
| WiFi Reception Sensitivity | 5 GHz_1: 11a 6Mbps?-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 5 GHz_2: 11a 6Mbps?-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 2.4 GHz? 11g 6Mbps?-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W?D?H) | 11.3 ? 11.3 ? 7.2 in (288 ? 288 ? 184 mm) |
| Package Contents | Wi-Fi Router Archer AX11000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
