Description

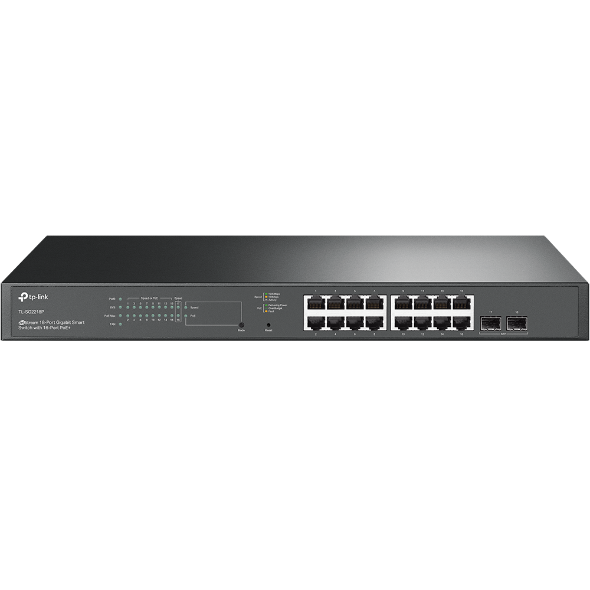

JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
- 150 W PoE Budget: 16× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
- Full Gigabit Ports: 16× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
SPECIFICATIONS
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|---|---|
| Interface | • 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Gigabit SFP Slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF |
| Fan Quantity | 1 |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 16 Ports • PoE Power Budget: 150 W* |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • 181.4 W (110 V/60 Hz) (with 150 W PD connected) • 178.3 W (220 V/50 Hz) (with 150 W PD connected) |
| Max Heat Dissipation | • 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected) • 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected) |
