Description

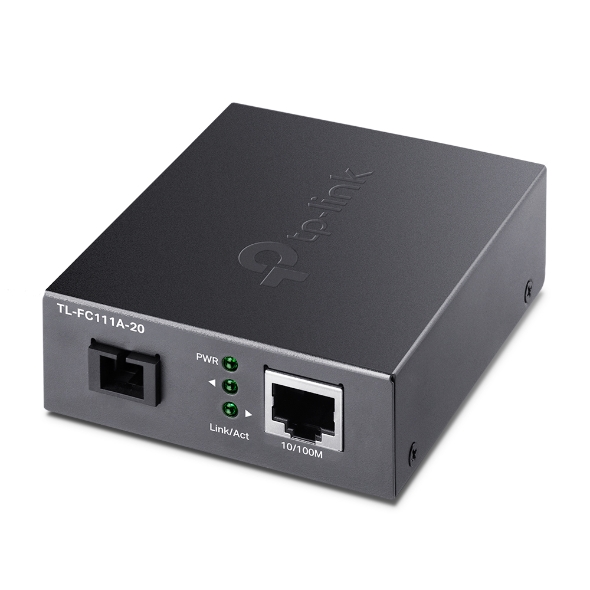

TL-FC111A-20
10/100 Mbps WDM Media Converter
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Interface | ? 1? 100 Mbps SC Fiber Port ? 1? 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (?100 m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 94.5*73*27 mm |
| Wave Length | 1550 nm TX, 1310 nm RX |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Fiber Type | 9/125 ?m single-mode fber (?20 km) |
| OTHERS | |
|---|---|
| Package Contents | ? Media Converter TL-FC111A-20 ? Power Adapter ? Installation Guide |
