Description

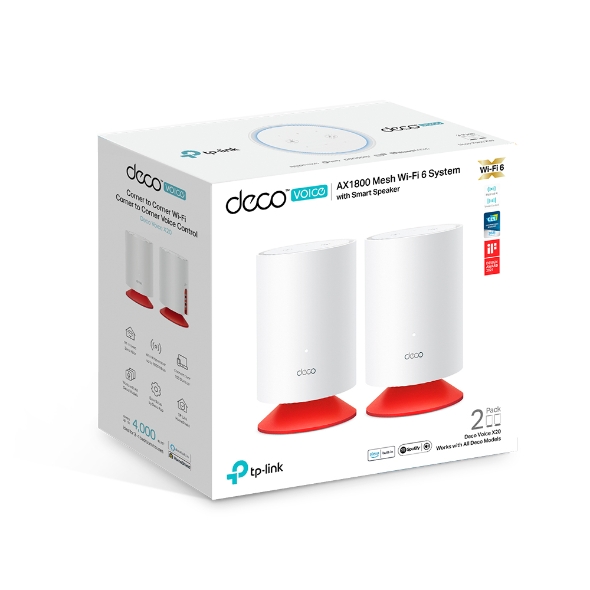

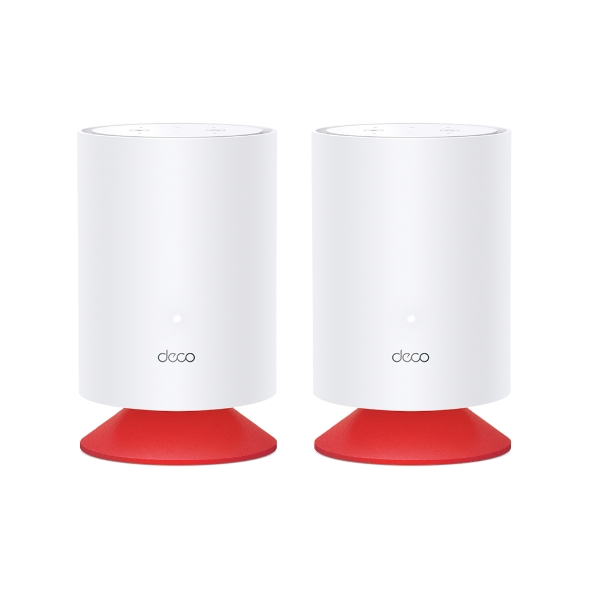

Deco Voice X20
AX1800 Mesh Wi-Fi 6 System with Smart Speaker
- Super-fast WiFi 6 speeds: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- TP-Link Mesh Technology: Walk throughout your home and stay connected with the fastest possible speeds.
- Alexa Built-in: Embrace a smarter home with whole-home voice control via Amazon Alexa.
- Integrated Smart Speaker: Supports popular audio providers throughout your home with premium sound.
- TP-Link HomeShield: Provides reliable IoT protection, robust parental controls, and comprehensive security reports.
- Full Gigabit Ethernet: 2? Gigabit WAN/LAN Ethernet ports per Deco Voice unit provide warp-speed wired connections.
- Setup Made Easier Than Ever: The Deco app walks you through the setup step-by-step.
- Works with All Deco Models: Compatible with all Deco models to form a unified whole-home mesh network.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 1-3 Bedroom Houses (1-pack) 3-4 Bedroom Houses (2-pack) 4-6 Bedroom Houses (3-pack) Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2? Antennas (Internal) Beamforming |
| WiFi Capacity | High
Dual-Band MU-MIMO OFDMA 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Performance | Microphone Quadruple microphone array Speaker |
| Ethernet Ports | 2? Gigabit Ports
*Per Deco Voice Unit |
| Buttons | 1 Reset Button 1 Mute Button 1 Action Button 2 Volume Buttons |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
| Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection |
| Guest Network | 1? 5 GHz Guest Network 1? 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| Parental Controls | HomeShield Parental Controls
Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm(2.4 GHz) <30 dBm(5 GHz) |
| PHYSICAL | |
|---|---|
| Dimensions (W?D?H) | 4.13 ? 4.13 ? 6.69 in (105 ? 105 ? 170 mm) |
| Package Contents | Deco Voice X20 (1-pack) 1 Deco Voice X20 unit 1 RJ45 Ethernet cable 1 Power adapter 1 Quick Installation Guide Deco Voice X20 (2-pack) Deco Voice X20 (3-pack) |
| OTHERS | |
|---|---|
| System Requirements | Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certifications | CE, EAC, FCC, IC, RoHS, RCM |
| Environment | Operating Temperature: 0?C~40?C (32?F~104?F) Storage Temperature: -40?C~60?C (-40 ?F~140 ?F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
