Description

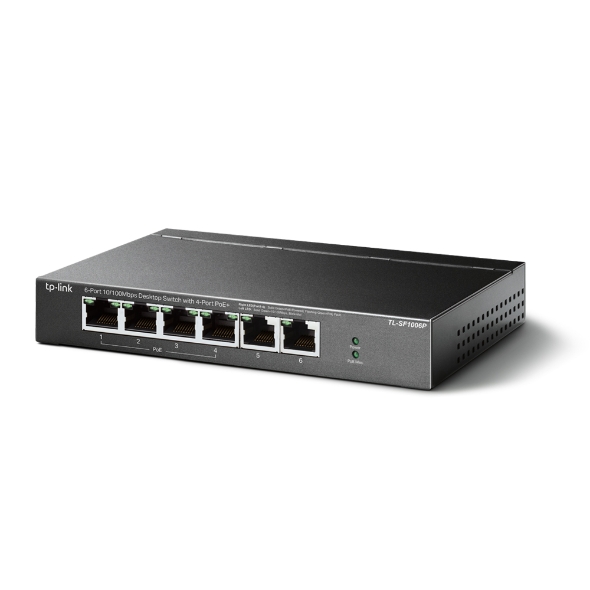

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- 6? 10/100 Mbps RJ45 ports
- 4? PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1?2?to guarantee the quality of sensitive application
- Supports PoE Power up to 30 W for each PoE port
SPECIFICATIONS
| Interface | ? 6? 10/100 Mbps RJ45 Ports (ports 1?4 support 802.3af/at PoE+) ? AUTO Negotiation ? AUTO MDI/MDIX |
|---|---|
| Network Media | ? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 0.8928 Mpps |
| PoE Ports (RJ45) | ? Standard: 802.3 af/at compliant ? PoE Ports: Ports 1?4 ? Power Supply: 67 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.2 Gbps |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
