Description

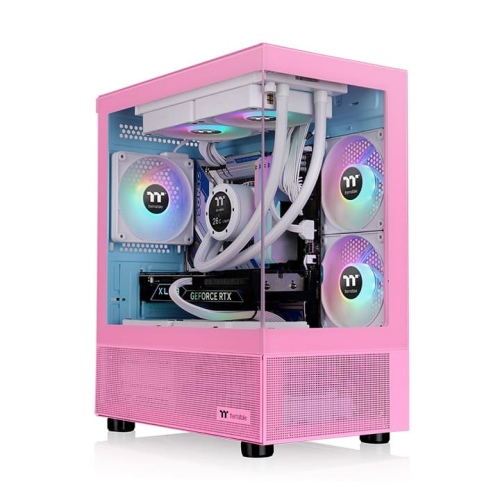

THERMALTAKE CA-1Z4-00MAWN-01 View 170 TG ARGB Bubble Pink Micro Chassis
Built for amazing views, the View 170 TG ARGB Bubble Pink Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed.
SPECIFICATIONS
| P/N | CA-1Z4-00MAWN-01 |
|---|---|
| Series | View |
| Model | View 170 TG ARGB Bubble Pink |
| CASE TYPE | Micro Case |
| Dimension (H x W x D) | 438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inch) |
| NET WEIGHT | 4.65 kg / 10.25 lbs. |
| PANEL | 3mm Tempered Glass x 2 |
| Color | Bubble Pink |
| MATERIAL | SPCC |
| COOLING SYSTEM | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): |
| Drive Bays | 1 x 3.5”, 2 x 2.5” |
| EXPANSION SLOTS | 4 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O Port | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 2 x 120mm, 1 x 120mm |
| RADIATOR SUPPORT | Top: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| CLEARANCE | CPU cooler max height: 160mm VGA max length: 340mm PSU max length: 180mm |
