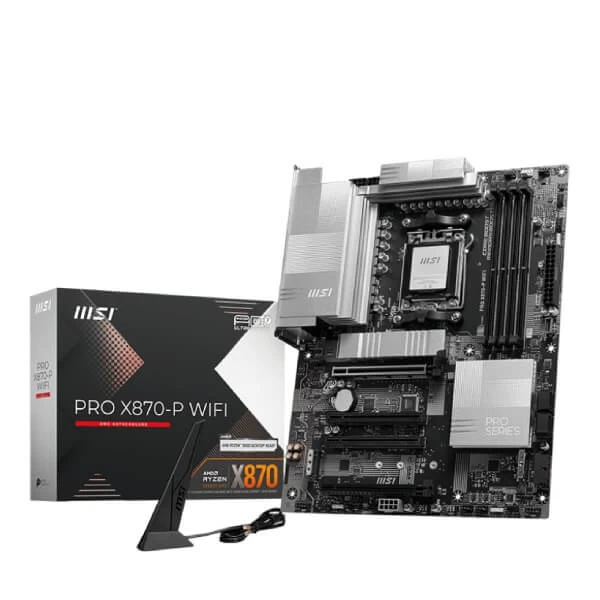

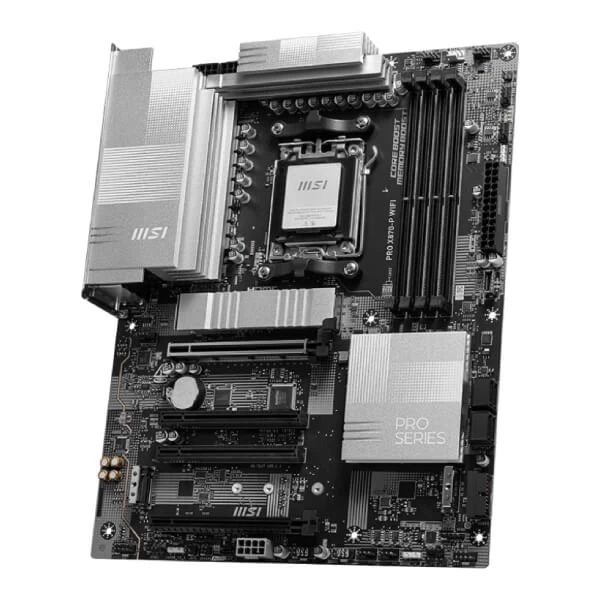

    • MSI PRO X870-P Wifi,AMD Ryzen AM5, DDR5, ATX 911-7E47-001 MB 8107
    MSI PRO X870-P Wifi,AMD Ryzen AM5, DDR5, ATX 911-7E47-001 MB 8107 - Image 2
    MSI PRO X870-P Wifi,AMD Ryzen AM5, DDR5, ATX 911-7E47-001 MB 8107 - Image 3
    MSI PRO X870-P Wifi,AMD Ryzen AM5, DDR5, ATX 911-7E47-001 MB 8107 - Image 4

    MSI PRO X870-P Wifi,AMD Ryzen AM5, DDR5, ATX 911-7E47-001 MB 8107

    $585.00

    2 in stock

    SKU: 911-7E47-001 Tags: , , , , , , , , , , , Brand:

    Description

    MSI Pro X870-P WiFi Motherboard

    • Supports AMD Ryze 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
      Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
    • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
    • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
      Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
    • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

    SPECIFICATIONS

    Model PRO X870-P WIFI
    Chipset AMD X870
    CPU Supports AMD Ryzen? 9000/ 8000/ 7000 Series Desktop Processors
    Socket AM5
    Memory
    • 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
      Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
      Ryzen? 9000 Series Processors max. overclocking frequency:
    • ?1DPC 1R Max speed up to 8200+ MT/s
    • ?1DPC 2R Max speed up to 6400+ MT/s
    • ?2DPC 1R Max speed up to 6400+ MT/s
    • ?2DPC 2R Max speed up to 4800+ MT/s
    • Supports AMD POR Speed and JEDEC Speed
    • Supports Memory Overclocking and AMD EXPOTM
    • Supports Dual-Channel mode
    • Supports Non-ECC, Un-buffered memory
    • Supports CUDIMM, Clock Driver bypass mode only*

    * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
    ? The DIMM slots on this motherboard have double-sided latches.
    ? Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information
    Onboard Graphics
    • 1x HDMI
    • Support HDMITM 2.1, maximum resolution of 4K 60Hz*
    • 1x Type-C DisplayPort
    • USB4? port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot
    • 4x PCI-E x16 slot
    • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
    • PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

    PCI_E1 slot

    • Supports PCIe 5.0 x16 (For Ryzen? 9000/ 7000 Series processors)
    • Supports PCIe 4.0 x8 (For Ryzen? 8700/ 8600/ 8400 Series processors)
    • Supports PCIe 4.0 x4 (For Ryzen? 8500/ 8300 Series processor)

    * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
    Audio Realtek ALC897
    7.1-Channel High Definition Audio
    Storage
    • 3x M.2
    • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
      4x SATA 6G

    M2_1 slot

    • Supports up to PCIe 5.0 x4 (For Ryzen? 9000/ 7000 Series processors)
    • Supports up to PCIe 4.0 x4 (For Ryzen? 8000 Series processors)
