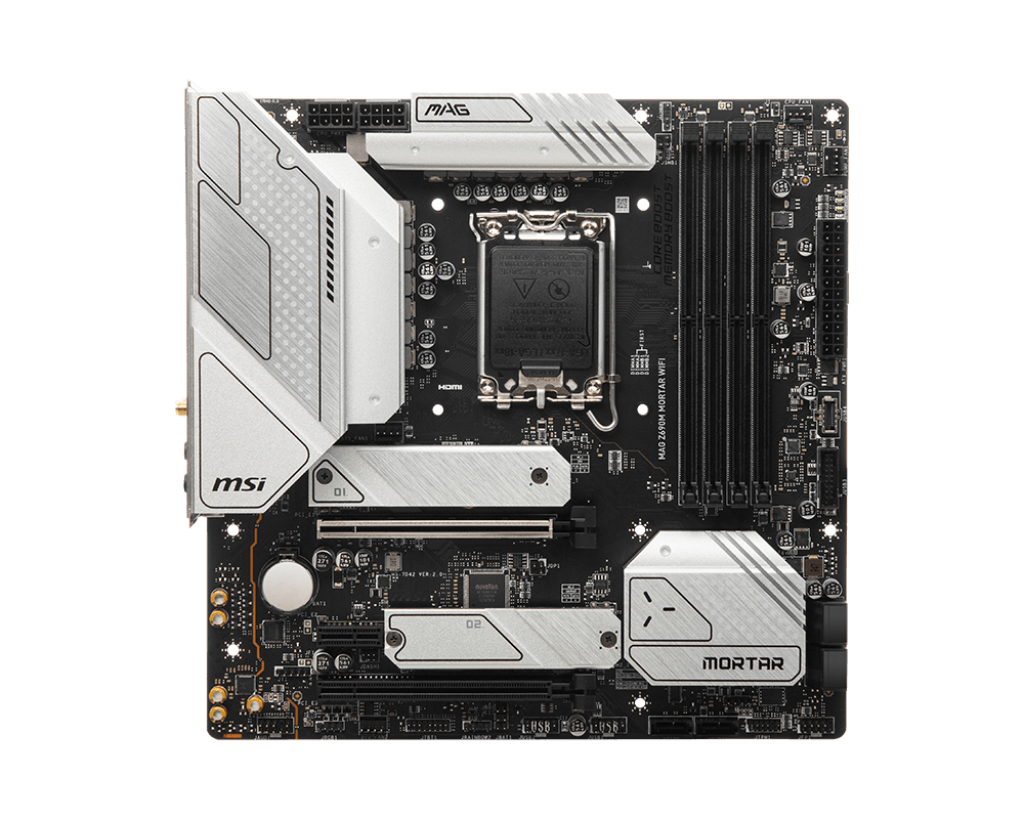

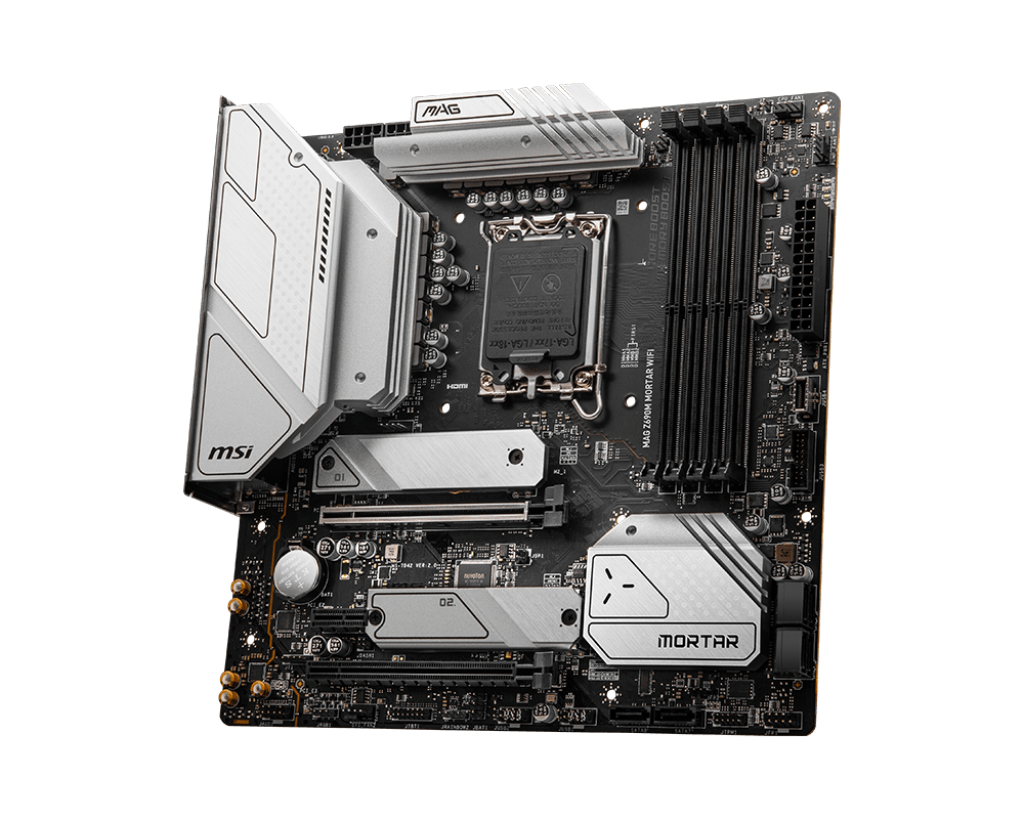

?MAG-Z690M-MORTAR-WIFI |
| ?PROCESSOR |
- Supports 12th Gen Intel? Core?, Pentium? Gold and Celeron? processors 1
- Processor socket LGA1700
|
| ?CHIPSET |
?Intel Z690 Chipset |
| ?MEMORY |
- 4x DDR5 memory slots, support up to 128GB 1
- Supports 1R 4800 MHz (by JEDEC & POR)
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 6200+ MHz
- 1DPC 2R Max speed up to 5200+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Intel? XMP 3.0 OC
- Supports Dual Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
|
| ?EXPANSION SLOT |
- 2x PCIe x16 slots
- PCI_E1 slot (From CPU)
- Supports PCIe 4.0 x16
- PCI_E3 slot (From Z690 Chipset)
- Supports PCIe 3.0 x4
- 1x PCIe 3.0 x1 slot
|
| ?MULTI-GPU |
?Supports 2-Way AMD? CrossFire?? ?Technology |
| ?ONBOARD GRAPHICS |
- ?1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
|
| ?STORAGE |
- 4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset) 1
- 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
- 2x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (From Z690 Chipset) 1
- Supports PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel? Optane? Memory
|
| ?RAID |
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1
|
| ?USB |
?Intel? Z690 Chipset
- ?1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
- 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
- 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
- 4x USB 2.0 ports on the back panel
USB Hub-GL3590
- 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
- 4x USB 2.0 ports available through internal connectors
|
| ?AUDIO |
?Realtek? ALC1200 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| ?LAN |
?1x Realtek? 8125BG 2.5Gbps LAN? ?controller |
| ?WIRELESS LAN & BLUETOOTH? |
?Intel? Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1
- (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth? 5.2 2, FIPS, FISMA
|
| ?INTERNAL CONNECTORS |
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C connector
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 2x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
- 1x TBT connector (supports RTD3)
- 1x Tuning Controller connector
|
| ?LED FEATURE |
- 4x EZ Debug LED
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
|

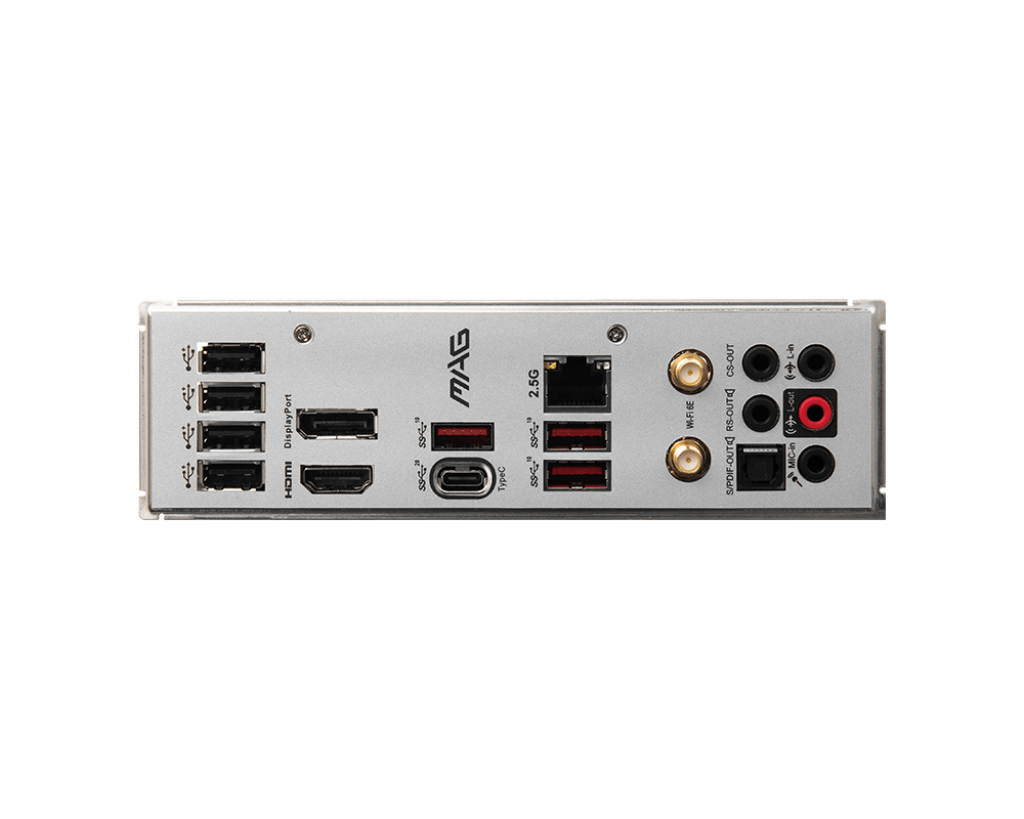

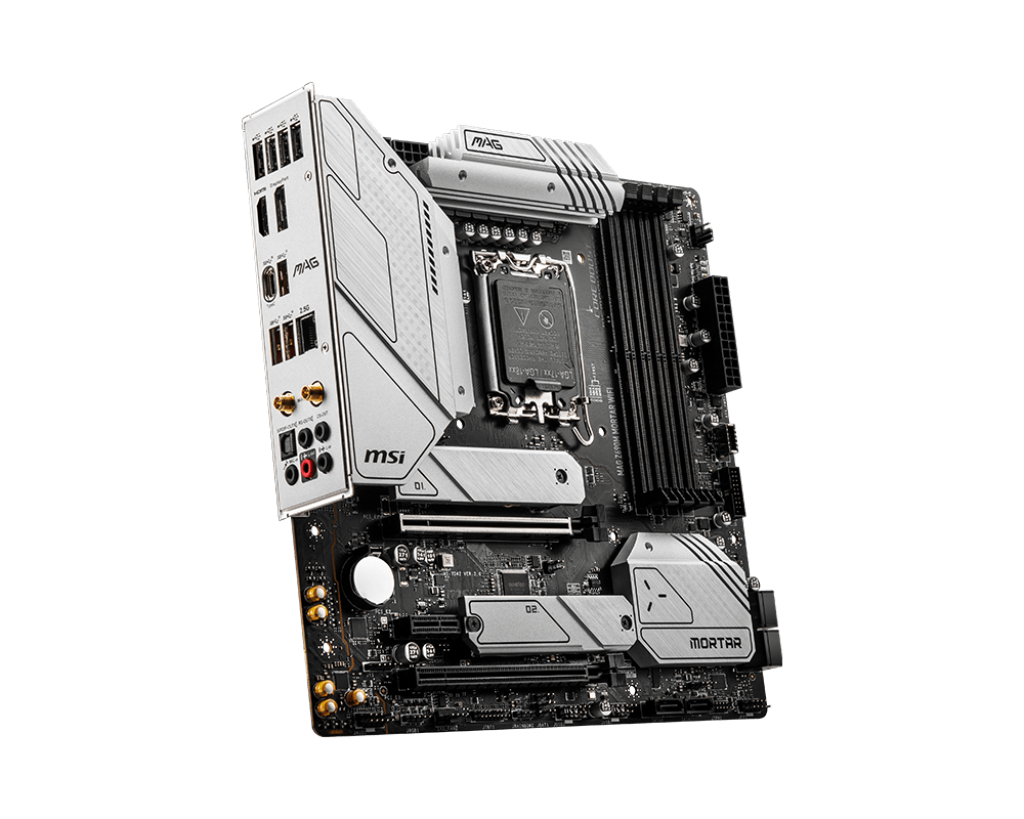

| ?BACK PANEL PORTS |
- USB 2.0 Port
- DisplayPort 1.4
- USB 3.2 Gen 2 10Gbps Type-A
- 2.5G LAN Port
- Wi-Fi / Bluetooth Antenna
- HD Audio Connectors
- HDMI 2.1 Port
- USB 3.2 Gen 2×2 20Gbps Type-C
- Optical S/PDIF OUT
|
| ?DIMENSIONS |
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
|
