Description

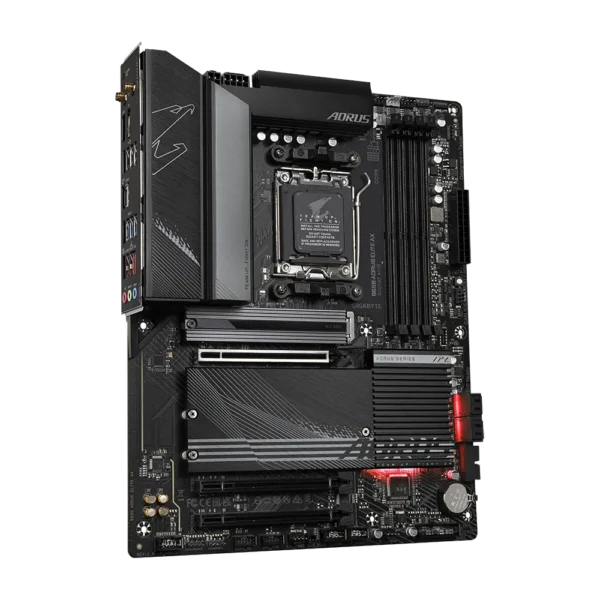

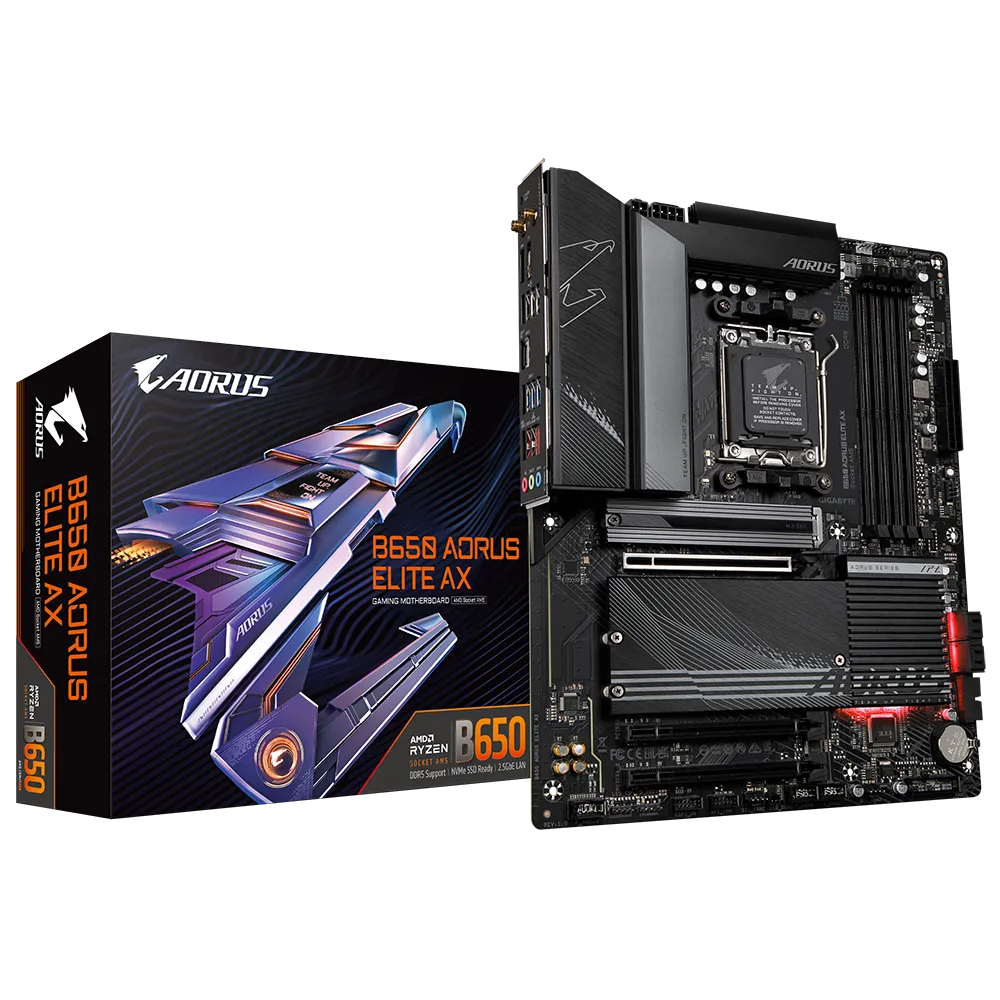

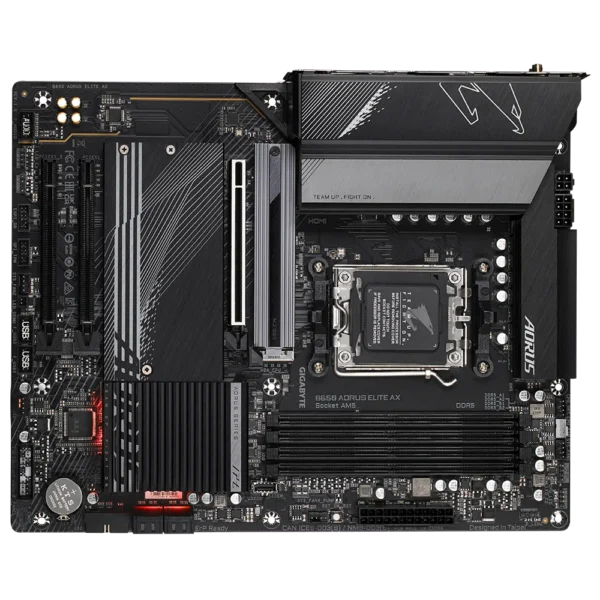

B650 AORUS ELITE AX (rev. 1.2)
- AMD Socket AM5?Supports AMD Ryzen? 7000/ Ryzen? 8000/ Ryzen? 9000 Series Processors
- Unparalleled Performance?Twin 14*+2+1 Phases Digital VRM Solution
- Dual Channel DDR5?4*SMD DIMMs with AMD EXPO? & Intel??XMP Memory Module Support
- Next Generation Storage?1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Fully Covered Heatpipe & M.2 Thermal Guard?To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch?PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks?2.5GbE LAN & Wi-Fi 6E 802.11ax

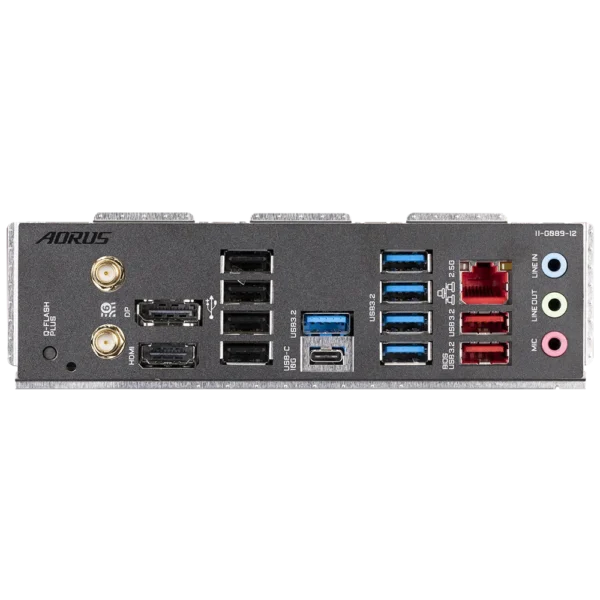

- Extended Connectivity?DP, HDMI, Rear USB-C??10Gb/s, Front USB-C??20Gb/s
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
SPECIFICATIONS
-
CPU
- AMD Socket AM5, support for: AMD Ryzen? 7000 / Ryzen? 8000 / Ryzen? 9000 Series Processors
(Please refer “CPU Support List” for more information.)
-
Chipset
- AMD B650
-
- Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256?GB (64?GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory module
Memory
-
Onboard GraphicsIntegrated Graphics Processor:
- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
* Support for DisplayPort 1.4 version and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
-
Audio
- Realtek??Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
-
LAN
- Realtek??2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Wireless Communication moduleRealtek??Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
-
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen? 7000 Series Processors/ Ryzen? 9000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
-
Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen? 7000 Series Processors/ Ryzen? 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
