Name: GIGABYTE B560M-DS3H V2 LGA1200 DDR4 M.ATX INTEL MOTHERBOARD
Brand: GIGABYTE
SKU: 889523028957
Availability: OutOfStock

Description

B560M DS3H V2

Supports 11th and 10th Gen Intel^???Core? Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast?NVMe PCIe 4.0/3.0* x4 M.2
GbE LAN with Bandwidth Management
USB 3.2 Gen1 Type-C^??for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS

CPU	LGA1200 package: 11th Generation Intel? Core? i9 processors / Intel? Core? i7 processors / Intel? Core? i5 processors 10th Generation Intel? Core? i9 processors / Intel? Core? i7 processors / Intel? Core? i5 processors / Intel? Core? i3 processors/ Intel? Pentium? processors / Intel? Celeron? processors* * Limited to processors with 4 MB Intel? Smart Cache, Intel? Celeron? G5xx5 family. L3 cache varies with CPU (Please refer to “CPU Support List” for more information.)
Chipset	Intel? B560 Express Chipset
Memory	11th Generation Intel? Core? i9/i7/i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel? Core? i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel? Core? i5/i3/Pentium?/Celeron? processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)
Onboard Graphics	Integrated Graphics Processor-Intel? HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Audio	Realtek? Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN	Realtek? GbE LAN chip (1 Gbps/100 Mbps)

Reviews

There are no reviews yet.

Be the first to review “GIGABYTE B560M-DS3H V2 LGA1200 DDR4 M.ATX INTEL MOTHERBOARD”

You must be logged in to post a review.

GIGABYTE B560M-DS3H V2 LGA1200 DDR4 M.ATX INTEL MOTHERBOARD

Description

B560M DS3H V2

SPECIFICATIONS

Reviews

Related products

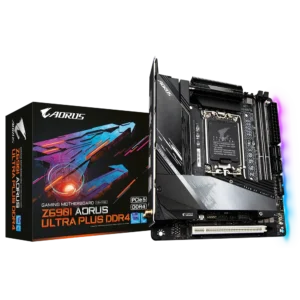

Gigabyte Z690 I AORUS ULTRA PLUS DDR4 V 1.0

Gigabyte Z690M AORUS ELITE DDR4 V 1.0

GIGABYTE B760 AORUS MASTER DDR4 LGA1700 ATX MOTHERBOARD

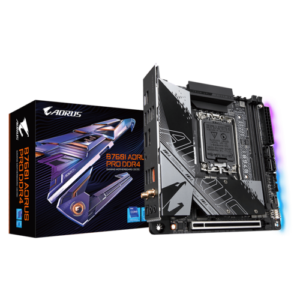

GIGABYTE B760I AORUS PRO DDR4 LGA1700 M-ATX MOTHERBOARD
