Description

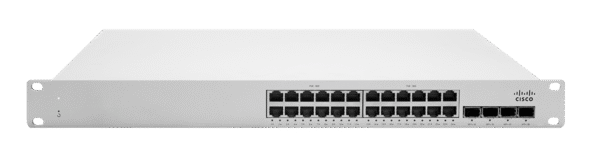

Cisco Meraki MS225-24-HW 24x 1GB RJ-45 4x 10GB SFP+ Unclaimed Switch
Meraki MS225 MS225-24 24 Ports Manageable Ethernet Switch – Gigabit Ethernet, 10 Gigabit Ethernet – 10/100/1000Base-T, 10GBase-X – 3 Layer Supported – Modular – Twisted Pair, Optical Fiber – 1U – Rack-mountable, Desktop
SPECIFICATIONS
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 1x RJ-45 Management
- Stacking Ports : 2x Stacking Connectors
- Stacking Options : Up to 80 Gbps of bandwidth (Stacking-compatible with the MS210) – support for up to 8 stack members for built-in redundancy and performance – Stacking Cables are not included
- Stacking Cable Options : MA-CBL-40G-50CM, MA-CBL-40G-1M, MA-CBL-40G-3M
- Virtual Stacking : Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Power Supplies Included : 1x Internal AC Power Supply – 1x RPS Slot (PWR-RPS2300 – Remote Power System (RPS) Chassis – not included)
- PoE Budget : Integrated Mounting Brackets
- Switching Capacity : 128 Gbps
- Forwarding Rate : 95.24 Mpps
- MAC Address Table Size : 16,000
- Model Number : MS225-24-HW
