Description
AX3000 Dual Band WiFi 6 (802.11ax)
- Next-Gen Wi-Fi Standard – Supporting the latest Wi-Fi standard 802.11AX (Wi-Fi 6) and 160MHz bandwidth for better capacity and efficiency.
- Ultra-fast Wi-Fi Speed – RT-AX3000 supports 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
- Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
- Commercial-grade Security – lifetime free AiProtection, powered by Trend Micro™, blocks internet security threats for all your connected smart devices.
- Better Partner with Mesh System – Compatible with ASUS AiMesh Wi Fi system for seamless whole-home coverage.
SPECIFICATIONS
| Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |
| Product Segment | AX 3000 (2402Mbps+574Mbps) |
| Coverage | Large homes |
| Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n : up to 300 Mbps 802.11ac : up to 867 Mbps 802.11ax (2.4GHz) : up to 574 Mbps 802.11ax (5GHz) : up to 2402 Mbps |
| Antenna | External antenna x 4 |
| Transmit/Receive | 2.4 GHz 2 x 2 5 GHz 2 x 2 |
| Processor | 1.5 GHz tri-core processor |
| Memory | 256 MB Flash 512 MB RAM |
| Wi-Fi Technology | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Firewall & Access Control | Firewall: SPI intrusion detection, DoS protection Access control：Parental control, Network service filter, URL filter, Port filter |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
| VPN Support | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |

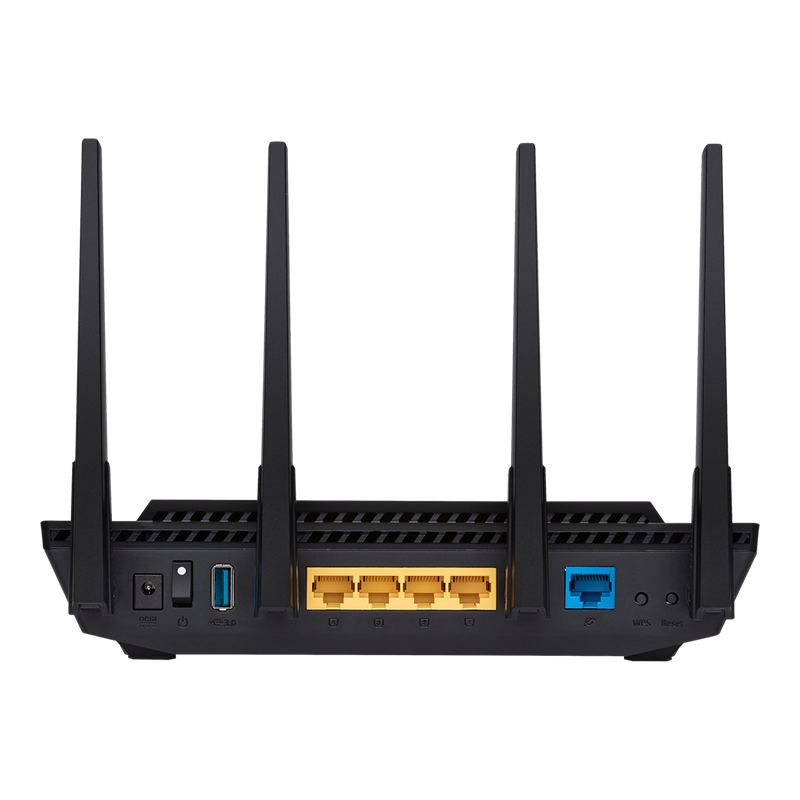

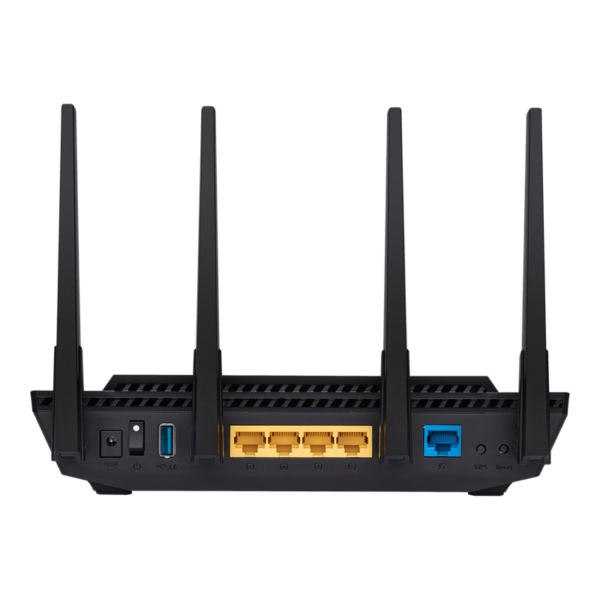

| Ports | RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 USB 3.1 Gen 1 x 1 |
| Features | Router app MU-MIMO Traffic Analyzer Adaptive QoS AiProtection Pro Parental Control Guest Network : VPN server : PPTP Server, IPSec server VPN client : PPTP client, L2TP client, OpenVPN client NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay Mac OS Backup Enhanced media server (AiPlayer app compatible) – Image : Jpeg – Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg – Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Printer Server – Multifunctional printer support (Windows only) – LPR protocol support Download Master – Support bt, nzb, http, ed2k – Support encryption, DHT, PEX and magnet link – Upload and download bandwidth control – Download scheduling AiDisk file server – Samba and FTP server with account management IPTV support Roaming Assist OFDMA Beamforming |
| Button | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 2.4G x 1 5G x 1 LAN x 4 WAN x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 1.75 A current |
| OS Support | Windows® 10 Windows® 8 Windows® 7 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 |
| Dimensions | 224 x 154 x 160 mm (LxWxH) |
| Weight | 538 g |
| Operation mode | Wireless router mode Access point mode Media bridge mode |
