Description

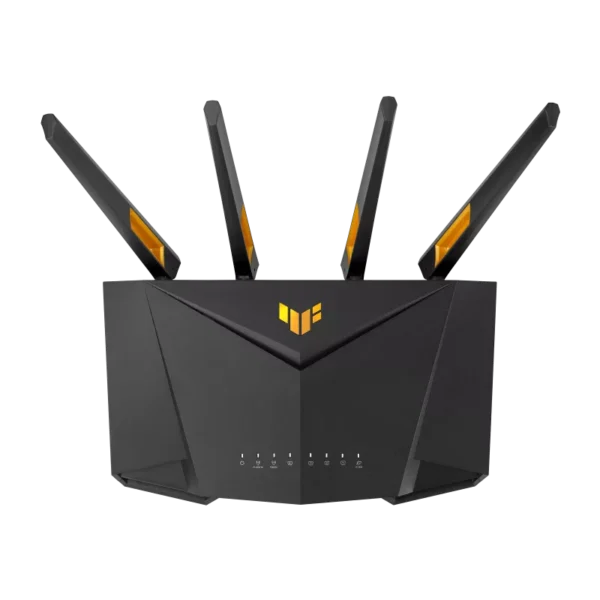

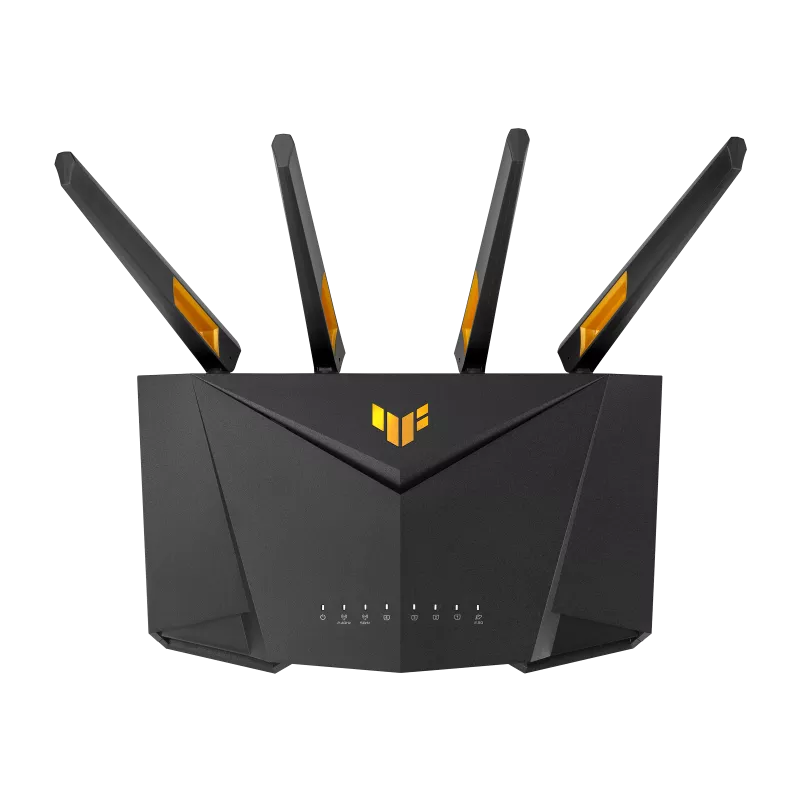

TUF Gaming AX4200 Dual Band WiFi
- Ultrafast WiFi 6 – Enjoy speeds up to 4200 Mbps and 4X network efficiency with OFDMA and 160 MHz channels.
- True Multi-Gigabit wired speeds – Aggregated 2 Gigabit LAN connections, wired 2.5Gbps port and WiFi 6.
- Easy Port Forwarding in 3 Steps – Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration.
- ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers.
- Tested Durability and Stable Operation – TUF Gaming AX4200 is built to be durable and undergoes verified testing to ensure reliable, stable operation.
SPECIFICATIONS
| Model Number | TUF Gaming AX4200 |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX4200 ultimate AX performance: 574+3603 Mbps |
| AX technology | Yes |
| Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps |
| Antenna | External antenna x 4 |
| Transmit/Receive | 2.4GHz 2×2 5GHz 3×3 |
| Processor | 2.0 GHz quad-core processor |
| Memory | 256 MB Flash 512 MB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4GHz / 5GHz |

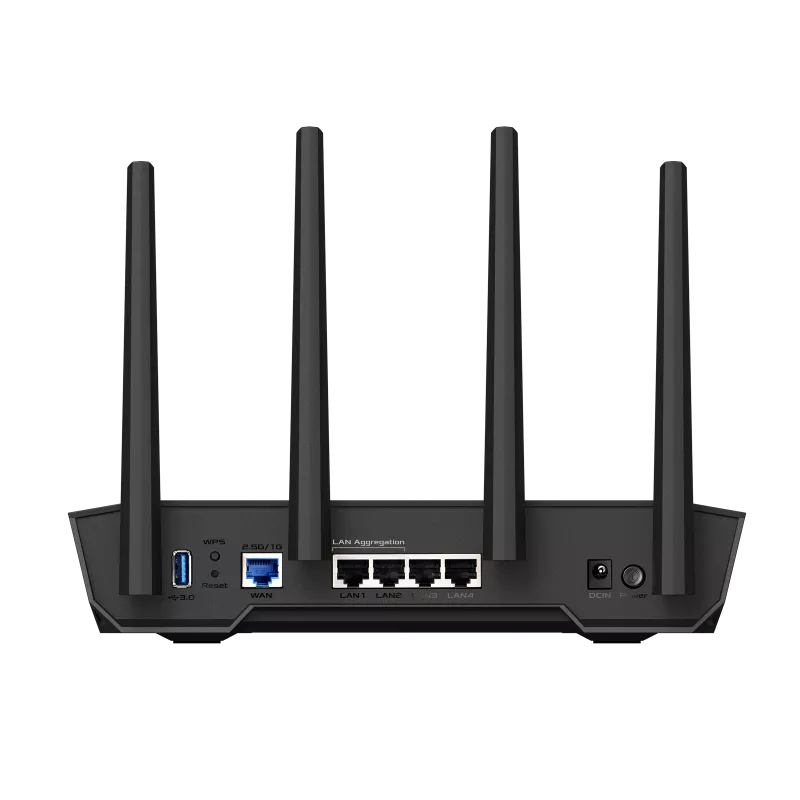

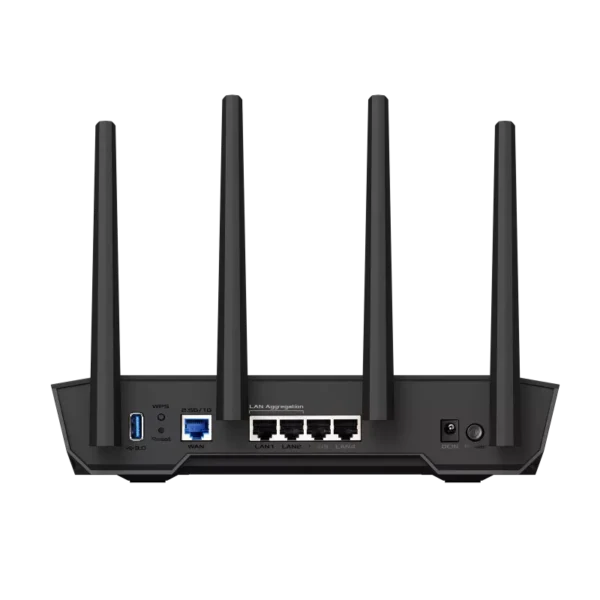

| Ports | RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, |
| Button | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 2.4G x 1 5G x 1 LAN x 4 WAN x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 2.5 A current |
| Package content | TUF Gaming AX4200 Dual Band WiFi 6 router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 547.4 g |
| AiMesh | AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Game | Game Boost / Acceleration |
| AiProtection | AiProtection Pro AiProtection Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control | Parental Control Parental Control Customized Internet schedule |
| Traffic Control | Adaptive QoS Bandwidth Monitor Bandwidth limiter Maximum Bandwidth limiter rule : 32 Traditional QoS Maximum Traditional QoS rule : 32 Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Traffic analysis period : Daily, Weekly, Monthly Website history |
| Wireless | IPv6 Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise UTF-8 SSID Guest Network Maximum Guest Network rule : 2.4GHz x3, 5GHz x3 Guest Network Connection time limit WPS WiFi MAC address filter Maximum MAC filters : 64 Wireless scheduler Airtime fairness RADIUS Client Universal beamforming Explicit beamforming |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP 3G/4G LTE dongle Android tethering Port forwarding Maximum port forwarding rule : 64 Port triggering Maximum port triggering rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay Safe browsing DNS-over-TLS |
| LAN | DHCP Server IPTV LAN Link Aggregation Manually assign IP address Maximum manually assign IP address rule : 64 |
| VPN | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 3G/4G LTE dongle Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
