Description

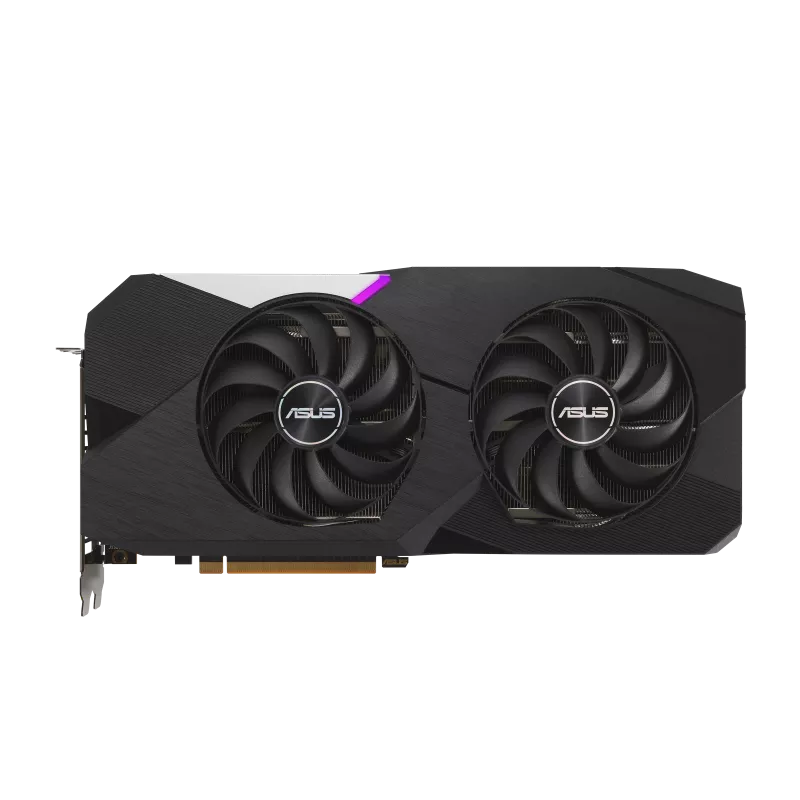

Dual Radeon? RX 6700 XT
- Axial-tech fan design?features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings?can last up to twice as long as sleeve bearing designs.
- Auto-Extreme Technology?uses automation to enhance reliability.

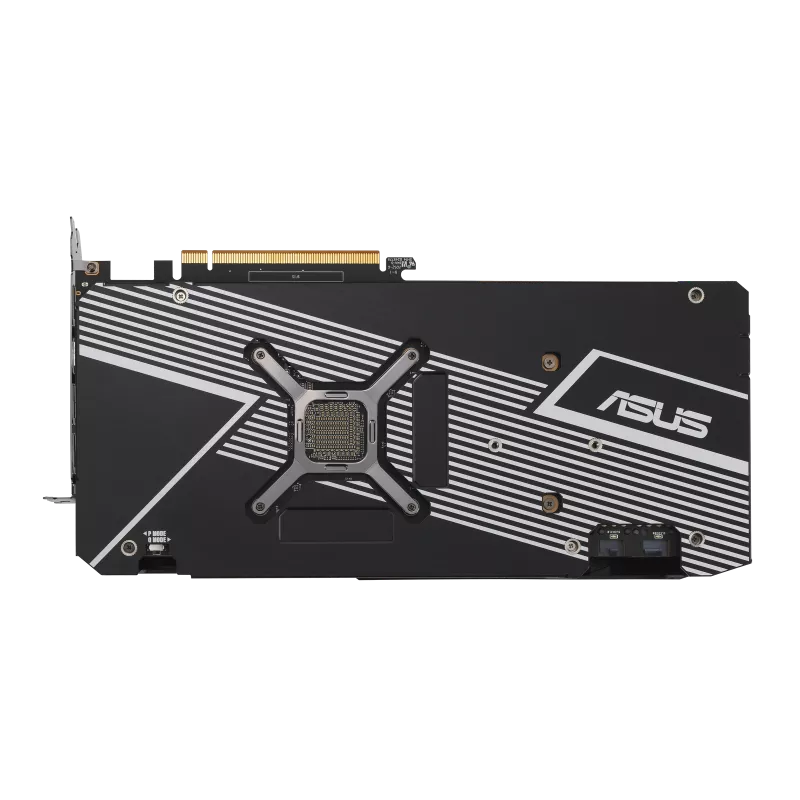

- A?protective backplate?prevents PCB flex and trace damage.
SPECIFICATIONS
Model
Dual Radeon? RX 6700 XT
Graphic Engine
AMD Radeon RX 6700 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL?4.6
Video Memory
12GB GDDR6
Engine Clock
OC mode : Up to 2581 MHz (Boost Clock)/Up to 2444 MHz (Game Clock)
Gaming mode : Up to 2581 MHz (Boost Clock)/Up to 2424 MHz (Game Clock)
Gaming mode : Up to 2581 MHz (Boost Clock)/Up to 2424 MHz (Game Clock)
Stream Processors
2560
Memory Speed
16 Gbps
Memory Interface
192-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface

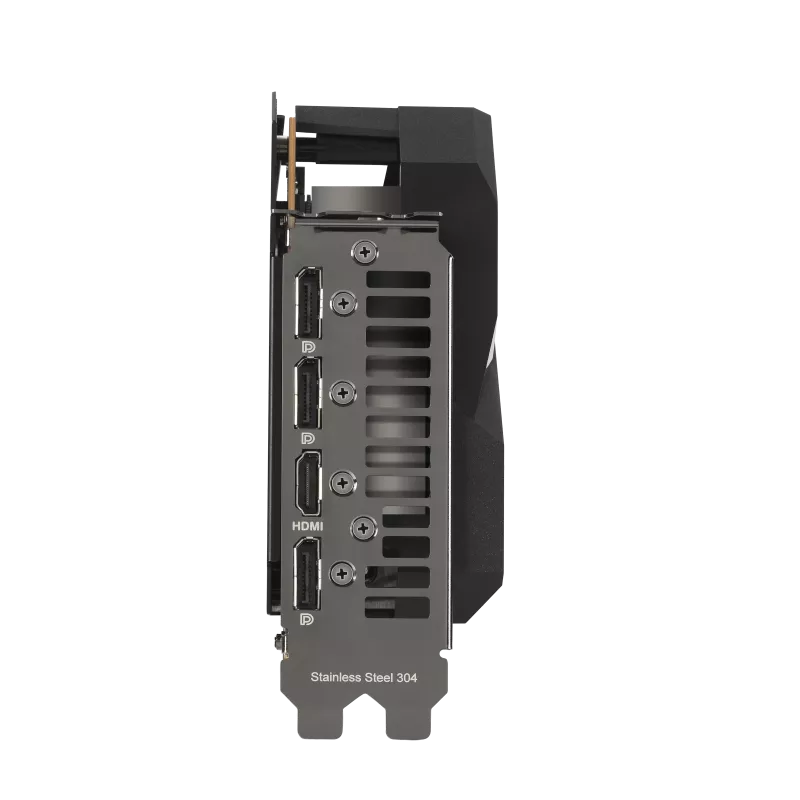

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Accessories
1 x Collection Card
1 x Speedsetup Manual
1 x Speedsetup Manual
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
295 x 139 x 55 mm
11.61 x 5.47 x 2.17 inches
11.61 x 5.47 x 2.17 inches
Recommended PSU
650W
Power Connectors
1 x 6-pin, 1 x 8-pin
Slot
2.7 Slot
