Description

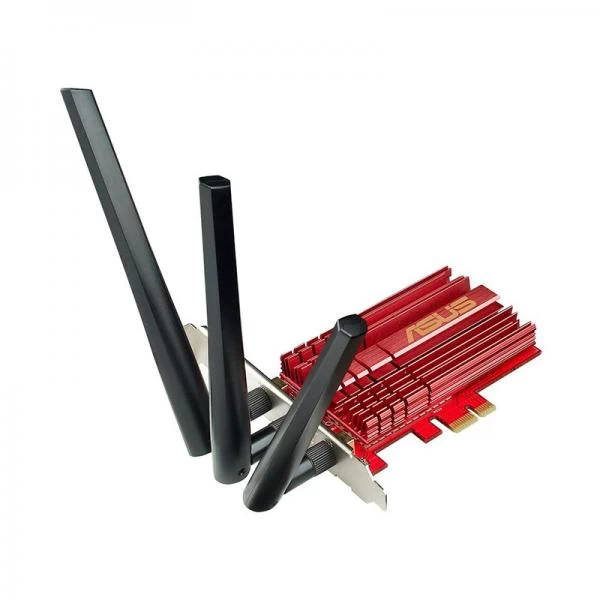

PCE-AC68
- 5th generation 802.11ac chipset gives you dual-band,2.4GHz/5GHz for up to super-fast 1.30Gbps
- Flexible extended antenna placement helps you pinpoint the best reception in your environment.
- Instant Wi-Fi upgrade for your desktop: no more messy Ethernet cables needed.
- High-power design clears up dead zones with 150% greater coverage
- Custom heatsink dissipates heat for more stable and reliable non-stop operation
SPECIFICATIONS
| Model | PCE-AC68 |
| Network Standard | IEEE 802.11 a/b/g/n/ac |
| Product Segment | AC1900 ultimate AC performance : 600+1300 Mbps |
| Interface | PCI Express |
| Data Rate | 802.11 b/g/n/ac : downlink up to 1300 Mbps, uplink up to 1300 Mbps (20/40/80MHz) 802.11 a/b/g/n/ac : downlink up to 150 Mbps, uplink up to 150 Mbps (20/40MHz) |
| Antenna | 3 x R SMA Antenna |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Operation Channel | 11 for N. America, 13 Europe (ETSI) |
| Security | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise |
| Management | Wireless configuration connection management connection profile setup |
| Output Power | ac mode : 18 ~22 dBm b mode : 22 dBm g mode : 19 ~22 dBm n mode : 18 ~22 dBm |
| Modulation | 64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM |
| Certificates | CE, FCC, IC |
| Dimensions | 103.3 x 68.9 x 21 ~ cm (WxDxH) (Without Bezel) |
| Environmental | Operating Temperature: 0 °C to 40 °C ( °F to ºF) Storage Temperature: -20 ° to 65 ° C ( °F to °F) Operating Humidity: 10 % to 90 % (Non-condensing) Storage Humidity: 10 % to 90 % (Non-condensing) |
| OS Support | Windows® 8.1 , 32bit/64bit Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP , 32bit/64bit |
