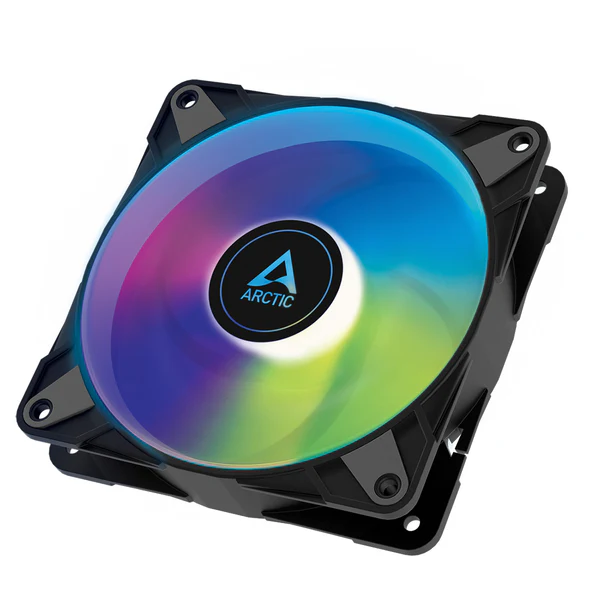

ARCTIC P12 PWM PST A-RGB – Black

ARCTIC launches their new CPU A-RGB Case Fan with P12 PWM PST A-RGB 120mm Fan. The PWM controlled is designed with PST technology which allows that all of your fans listen to one control signal and to stand down at low load and spin up whenever necessary.
The fan provides a rotational speed of up to 2000 rpm at a low noise level of 0.3 Sone. Developed with a motor which is a combination of alloy/lubricant gives reduced friction and noise. This makes the ideal solution for your silent working & gaming environment.
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
Comes with 4-pin connector with 4-Pin socket. The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level.
The P12 PWM PST A-RGB 0dB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.

Model	P12 PWM PST A-RGB
Part-Number	ACFAN00231A
Fan
Size	1x 120mm Fan
Control Type	PWM PST (PWM Sharing Technology)
Connector	4-Pin-Connector + 4-Pin-Socket
Fan Bearing	Fluid Dynamic Bearing
Performance
Fan Speed	0 – 2000 rpm
AirFlow	48.8 CFM
Static Pressure	1.85 mm H₂O
Noise Level	0.3 Sone
Operating Temperature	0 – 40 °C
Electric Characteristics
Typical Voltage	12V DC
Starting Voltage	5V
Current / Voltage	0.11 A / 12 V
Cable Length	400 mm
Miscellaneous
Dimensions	120 x 120 x 25 mm
Weight	151g
Warranty	6 Years of Warranty from the Manufacturer
