Ubiquiti NBE-5AC-Gen2 UISP airMAX NanoBeam 5AC – Outdoor 5 GHz AC CPE with Dedicated Management Radio
📦 Product Overview

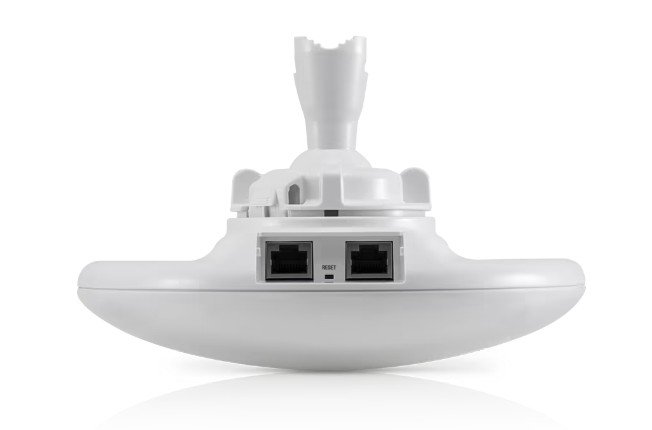

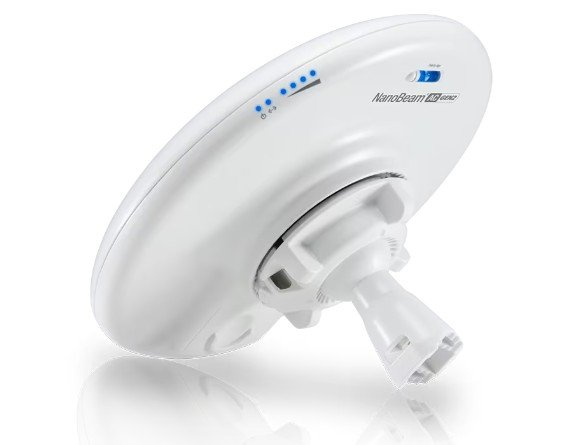

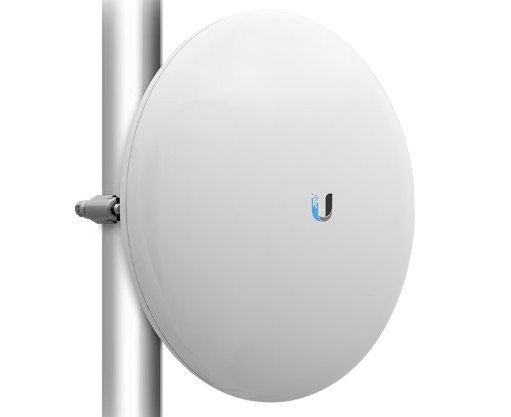

The Ubiquiti NanoBeam 5AC Gen2 is a compact, high-performance outdoor CPE designed for point-to-point (PtP) and point-to-multipoint (PtMP) links. Operating in the 5 GHz band with airMAX AC technology, it delivers improved throughput, reduced latency, and enhanced noise immunity. With a dedicated management Wi-Fi radio, installers can configure and monitor the device via the UISP mobile app, ensuring streamlined deployments and reliable connectivity in challenging environments.
🌟 Top Highlights
📡 airMAX AC Technology – Enhanced throughput and reduced latency
📶 Dedicated Management Radio – Simplifies setup via UISP mobile app
🌐 5 GHz Frequency Band – Reliable outdoor wireless connectivity
⚡ Gigabit Ethernet Port – High-speed wired backhaul
🛠️ Compact Form Factor – Easy installation with minimal visual impact
📐 Technical Details
| Specification | Details |
|---|---|
| Model | NBE-5AC-Gen2 |
| Processor | Atheros MIPS 74Kc, 560 MHz |
| Memory | 128 MB DDR2 |
| Storage | 8 MB Flash |
| Networking Interface | 1 × 10/100/1000 Mbps Gigabit Ethernet Port |
| Frequency Band | 5 GHz |
| Wireless Technology | airMAX AC |
| Management Radio | Dedicated 2.4 GHz Wi-Fi for setup and monitoring |
| Max Throughput | Up to 450+ Mbps |
| Antenna Gain | 19 dBi |
| Beamwidth | 15° |
| Power Method | Passive PoE (24V, 0.5A Gigabit Adapter included) |
| Power Consumption | 8.5W |

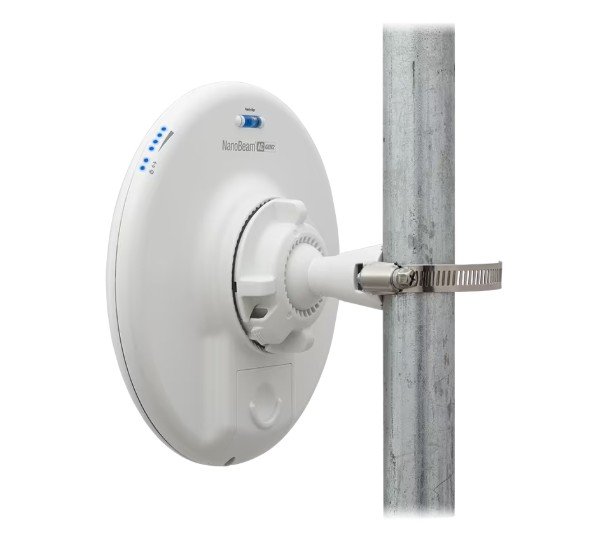

| Mounting | Pole-mount kit included |
| Dimensions | 189 × 189 × 125 mm (7.44 × 7.44 × 4.92″) |
| Weight | 530 g (18.7 oz) |
| Operating Temperature | -40 to 70°C |
| ESD/EMP Protection | ±24 kV Air / ±24 kV Contact |
| Certifications | FCC, IC, CE |
💡 Why You Should Buy It
✅ High-performance outdoor CPE with airMAX AC technology
✅ Dedicated management radio for simplified setup
✅ Compact design with strong 19 dBi antenna gain
✅ Reliable point-to-point and point-to-multipoint connectivity
🎯 Recommended Use Cases
➤ Long-distance point-to-point wireless links
➤ Point-to-multipoint deployments with UISP
➤ Rural broadband connectivity
➤ Outdoor enterprise or ISP-grade installations
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via authorized resellers and support channels
👉 Call to Action
Strengthen your UISP network with the NanoBeam 5AC Gen2 for powerful, reliable outdoor connectivity.
