🛍️ Product Name

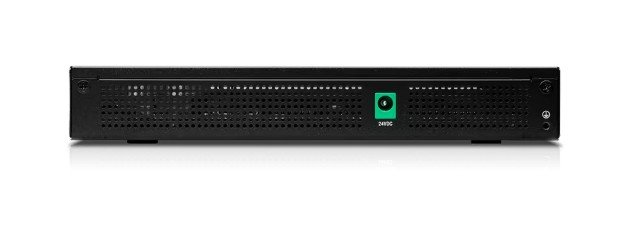

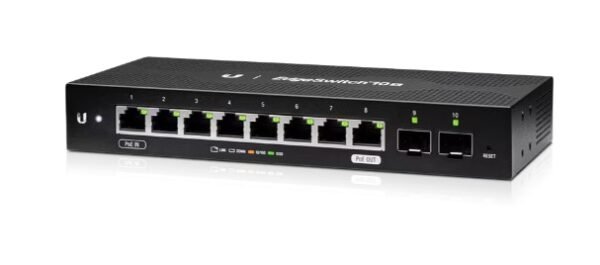

Ubiquiti ES-10X UISP EdgeSwitch 10X – Managed 10-Port Gigabit Switch with SFP and Passive PoE Support
📦 Product Overview
The Ubiquiti EdgeSwitch 10X (ES-10X) is a cost-effective managed switch designed for Wireless Internet Service Providers (WISPs) and small-to-medium business networks. Featuring eight Gigabit RJ45 ports, two SFP fiber ports, and passive PoE passthrough, it delivers reliable performance with a non-blocking throughput of 10 Gbps and a switching capacity of 20 Gbps. Compact and efficient, it is ideal for expanding network capacity while maintaining stability and control.
🌟 Top Highlights
⚡ 10-Port Design – Eight Gigabit RJ45 ports plus two SFP ports for flexible connectivity
🔌 Passive PoE Support – 24V DC PoE passthrough for powering compatible devices
🚀 High Performance – 10 Gbps non-blocking throughput and 20 Gbps switching capacity
📏 Compact Form Factor – Slim design fits easily into tight spaces
🛡️ Robust Protection – ESD/EMP protection up to ±24 kV for enhanced reliability
📐 Technical Details
| Specification | Details |
|---|---|
| Dimensions | 207 × 31.1 × 90 mm |
| Weight | 500 g |
| Networking Interfaces | 8 × 10/100/1000 Mbps RJ45, 2 × 1 Gbps SFP |
| Management Interface | Ethernet In-Band |
| PoE Interface | 24V DC passive PoE (Pins 4,5+; 7,8-) |
| Throughput | 10 Gbps non-blocking |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 24V DC, 1A adapter (included) |
| Supported Voltage Range | 9–30V DC |
| Max Passive PoE Wattage | 15W per port |
| Max Power Consumption | 8W (excluding PoE output) |
| LED Indicators | System, RJ45 link/speed/activity, SFP link/activity |
| Operating Temperature | -10 to 50 °C |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, NDAA Compliant |
💡 Why You Should Buy It
✅ Affordable managed switch with enterprise-grade features
✅ Ideal for WISP and SMB deployments
✅ Compact and efficient with low power consumption
✅ Reliable performance with advanced protection standards
🎯 Recommended Use Cases
➤ Expanding small business networks
➤ Powering wireless access points via passive PoE
➤ Fiber uplinks for high-speed connectivity
➤ Cost-effective WISP deployments
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by trusted logistics partners with tracking support
📞 Customer Support: Assistance available via authorized resellers and support channels
👉 Call to Action
Upgrade your network today with the Ubiquiti EdgeSwitch 10X — compact power, reliable performance.
