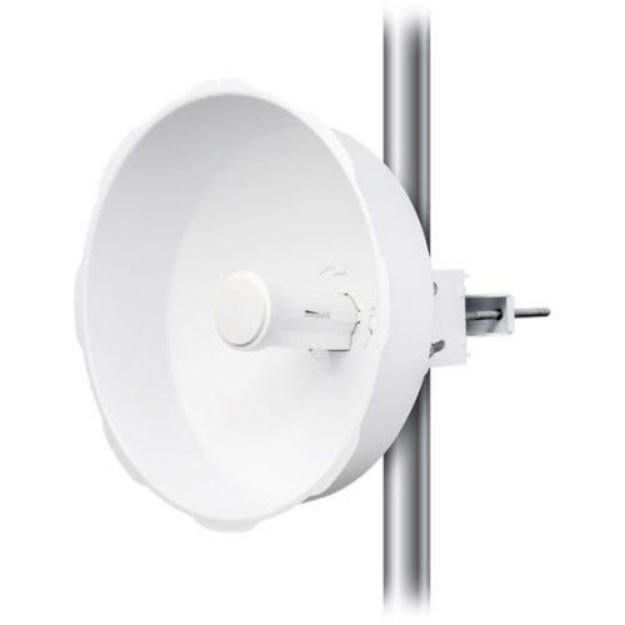

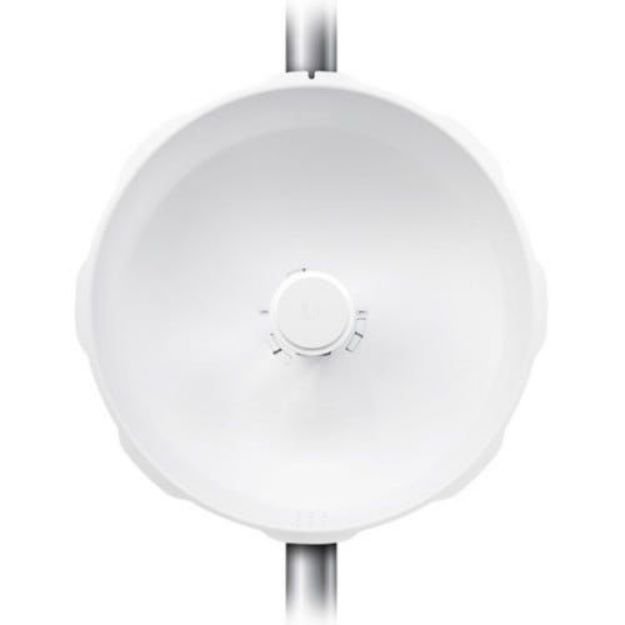

Ubiquiti PBE‑M5‑300‑ISO – UniFi PowerBeam M5, 300 mm Dish with Integrated RF Isolator Shield
📦 Product Overview
The Ubiquiti PowerBeam M5 300 ISO is a 5 GHz airMAX CPE featuring a 300 mm dish antenna with an integrated RF isolator shield. Designed for point‑to‑point and point‑to‑multipoint links, it delivers improved noise immunity, higher throughput, and stable connectivity in high‑interference environments. Compact and efficient, it is ideal for ISPs and enterprise outdoor deployments.
🌟 Top Highlights
📡 Integrated RF Isolator – Reduces interference for cleaner signals
⚡ airMAX Technology – Optimized TDMA protocol for throughput and scalability
🔧 300 mm Dish Antenna – Provides focused beam and improved gain
🏢 Enterprise‑Grade Design – Reliable outdoor connectivity for ISPs
🌐 Point‑to‑Point & PtMP – Flexible deployment options
📐 Technical Details
| Specification | Details |
|---|---|
| Model | PBE‑M5‑300‑ISO |
| Frequency Band | 5 GHz |
| Antenna Diameter | 300 mm |
| Antenna Gain | 22 dBi |
| Networking Interface | (1) 10/100 Mbps RJ45 Ethernet port |
| Processor | Atheros MIPS 24Kc, 560 MHz |
| Memory | 64 MB DDR2 RAM, 8 MB Flash |
| Max Throughput | 150+ Mbps |
| Channel Widths | 10 / 20 / 30 / 40 MHz |
| Power Method | Passive PoE (24V, 0.5A) |
| Power Consumption | Max 6 W |
| Mounting | Dish and radio integrated, pole mount kit included |
| Dimensions | 325 × 325 × 256 mm |
| Weight | ~1.8 kg |
| Operating Temperature | ‑40 to 70 °C |
| Operating Humidity | 5 to 95% non‑condensing |
| Certifications | FCC, CE, IC |
💡 Why You Should Buy It
✅ Integrated RF isolator for noise reduction
✅ Compact 300 mm dish with strong gain
✅ Reliable throughput with airMAX technology
✅ Rugged outdoor design for ISP deployments
🎯 Recommended Use Cases
➤ Point‑to‑point wireless bridges
➤ ISP subscriber stations
➤ Rural broadband connectivity
➤ High‑interference outdoor environments
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Deploy interference‑resistant wireless links with the Ubiquiti PowerBeam M5 300 ISO.
