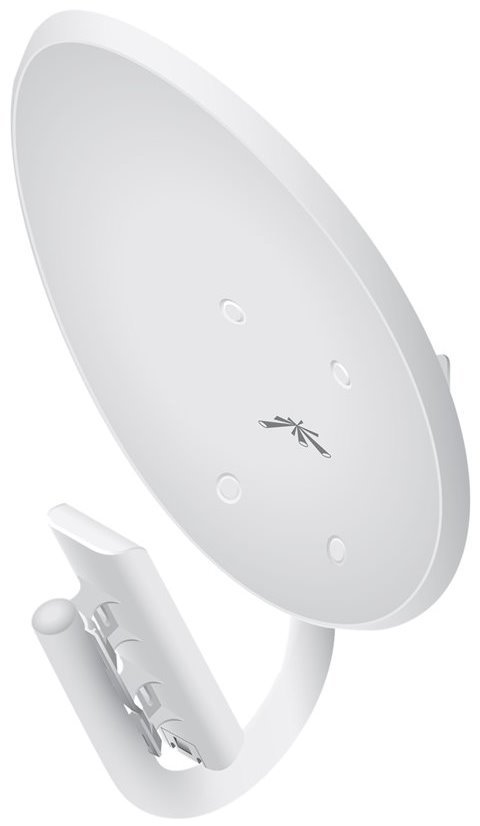

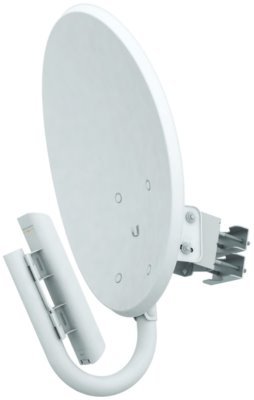

Ubiquiti UniFi NanoBridgeM3

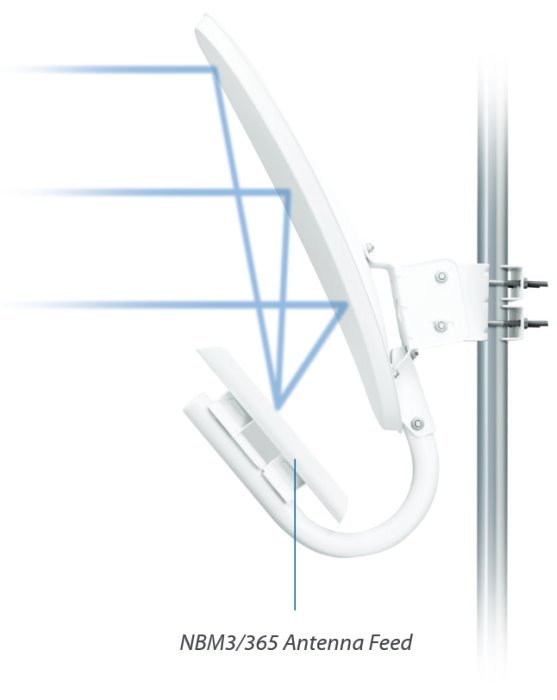

- InnerFeed antenna technology with complete radio system integration.
- Breakthrough speed 150+ Mbps real TCP/IP throughput.
- 20+ km Long Range – The device was specifically designed for outdoor PtP bridging and PtMP airMAX base-station applications.
- +/- 15kV radio frequency and Ethernet Electrostatic Discharge (ESD) protection.
- Intelligent QoS – Priority is given to voice/video seamless streaming.
- Scalability – High capacity and scalability.
- Long Distance – Capable of high-speed, carrier-class links.
SPECIFICATIONS
| Manufacturer’s Code | NBM3 |
| Chipset | Atheros MIPS 24KC, 400 MHz |
| Output Power | 25 dBm |
| Operating Modes | AP/Station/WDS |
| Frequency Range | 3370 – 3730MHz |
| Interfaces | (2) 10/100 Ethernet Ports |
| Temperature Range | -30 to 75° C |
| PoE In | Yes, 12-24V |
| Operating System | Ubiquiti airOS V |
| Antenna gain dBi | 21.5 – 22.5 dBi |
| Max Power consumption | 8 W |
| Number of chains | 2 |
| Polarisation | Dual Linear |
