🛍️ Product Name
Ubiquiti UF‑Nano UniFi Fiber Nano
📦 Product Overview
The Ubiquiti UF‑Nano is a GPON customer premises equipment (CPE) device designed for fiber‑to‑the‑home and enterprise deployments. Featuring an SC/APC GPON WAN port, Gigabit Ethernet LAN port, and an integrated LED display for real‑time status monitoring, it delivers downstream speeds up to 2.488 Gbps and upstream speeds up to 1.244 Gbps. Its compact design and flexible power options make it ideal for modern fiber installations.
🌟 Top Highlights
⚡ High‑Speed GPON – 2.488 Gbps downstream / 1.244 Gbps upstream
🔌 SC/APC Fiber Port – Reliable GPON WAN connectivity
🌐 Gigabit Ethernet LAN – Fast wired access for local devices
📺 Integrated LED Display – Real‑time status and signal strength
🔋 Dual Power Options – Micro‑USB or 24V Passive PoE
📐 Technical Details
| Specification | Details |
|---|---|

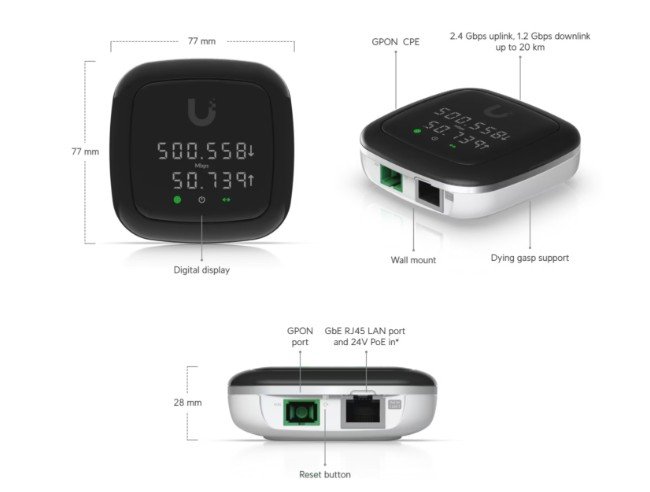

| Dimensions | 77 × 77 × 27 mm (3 × 3 × 1.1″) |
| Weight | 80 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| WAN Interface | (1) SC/APC, ITU‑G.984 GPON |
| LAN Interface | (1) GbE RJ45 |
| Display | Integrated LED screen for status and signal strength |
| Power Method | Micro‑USB: 5V, 1A; 24V Passive PoE |
| Max Power Consumption | 3.5W |
| Line Rate | 2.488 Gbps downstream / 1.244 Gbps upstream |
| Optical TX Range | 1.5 to 5 dBm |
| Optical RX Range | ‑8 to ‑28 dBm |
| Operating Temperature | ‑10 to 45 °C (14 to 113 °F) |
| Operating Humidity | 10 to 90% non‑condensing |
| Certifications | CE, FCC, IC; NDAA Compliant |
💡 Why You Should Buy It
✅ Delivers high‑speed fiber connectivity for UniFi networks
✅ Integrated LED display for easy monitoring
✅ Compact and lightweight for simple installation
✅ Flexible power options for diverse setups
🎯 Recommended Use Cases
➤ Fiber‑to‑the‑home deployments
➤ Enterprise GPON installations
➤ ISP rollouts requiring compact CPE
➤ Lab or test environments needing GPON connectivity
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via your reseller or distributor
👉 Call to Action
Enhance your UniFi fiber deployment with the advanced UF‑Nano today
