🛍️ Product Name

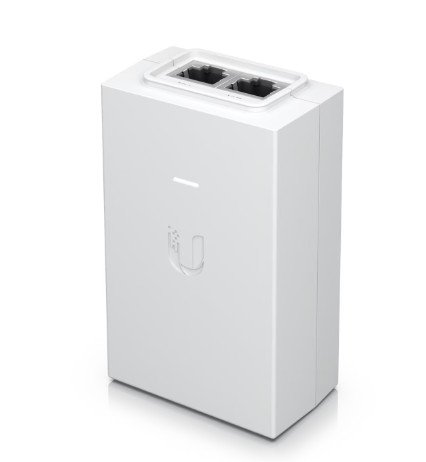

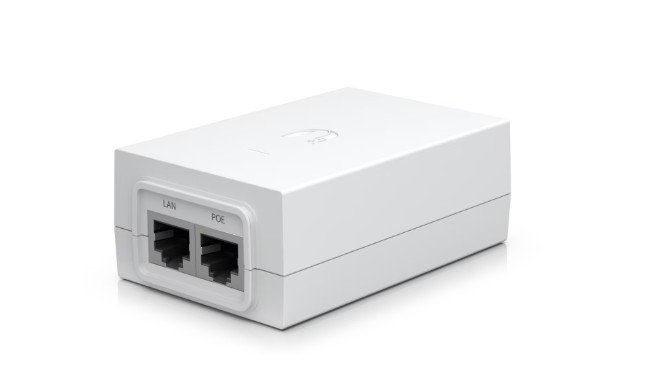

Ubiquiti POE-24-30W-G-WH UniFi PoE Injector – 24V DC, 1.25A, 30W Output, Gigabit LAN, White
📦 Product Overview
The Ubiquiti POE-24-30W-G-WH is a high-performance Gigabit PoE injector engineered to provide 24V DC power at 1.25A for UniFi and other compatible devices. Compact and efficient, it integrates surge protection, grounding, and reliable power conversion, making it ideal for professional networking setups and home installations.
🌟 Top Highlights
⚡ 30W Output Capacity – Powers demanding PoE devices
🌐 Gigabit Data Support – Ensures high-speed connectivity
🛡️ Surge Protection – Safeguards connected equipment
🔌 Wide AC Input Range – Operates from 100–240V AC
📏 Compact Housing – Easy to install in any environment
📐 Technical Details
| Specification | Details |
|---|---|
| Model | POE-24-30W-G-WH |
| Dimensions | 94 × 60 × 33 mm (3.70 × 2.36 × 1.30 in) |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 24V DC (25VDC @ 1.25A) |
| Output Power | 30W |
| Input Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 0.6A @ 120V AC, 0.4A @ 240V AC |
| Efficiency | 83%+ |
| Switching Frequency | 65 kHz |
| Output Ripple | ≤ 1% Max |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Powering Pins | Pins 4,5 (+) and Pins 7,8 (−) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | −30 to 70 °C (−22 to 158 °F) |
| Operating Humidity | 35 to 95% Non-condensing |
| AC Connector | IEC-320 C6 |

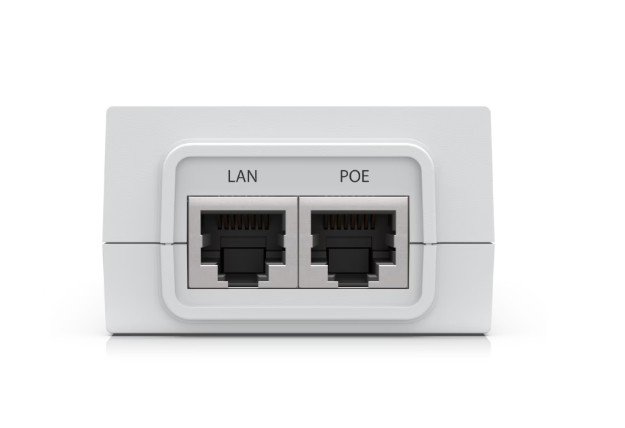

| Data/PoE Port | RJ45 Shielded Socket (Gigabit) |
| Color | White |
💡 Why You Should Buy It
✅ Stable 24V PoE power for UniFi devices
✅ Built-in surge and grounding protection
✅ Compact, efficient design for easy deployment
✅ Gigabit throughput for modern high-speed networks
🎯 Recommended Use Cases
➤ Powering UniFi access points
➤ Supporting IP cameras and VoIP phones
➤ Extending PoE to remote devices
➤ Reliable power for small office/home networks
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Manufacturer-backed coverage available
🔄 Returns Policy: Returns accepted under reseller terms and conditions
🚚 Shipping Info: Secure delivery with tracking support
📞 Customer Support: Assistance available via authorized resellers and support channels
👉 Call to Action
Choose the Ubiquiti POE-24-30W-G-WH for dependable Gigabit PoE power in your network.
