🛍️ Product Name
Ubiquiti UACC-CWDM-8 CWDM Mux Demux 8 – Rack-Mountable, 8-Channel 1450–1590 nm, Duplex LC UPC Ports, Single-Mode Fiber, SGCC Steel Enclosure
📦 Product Overview

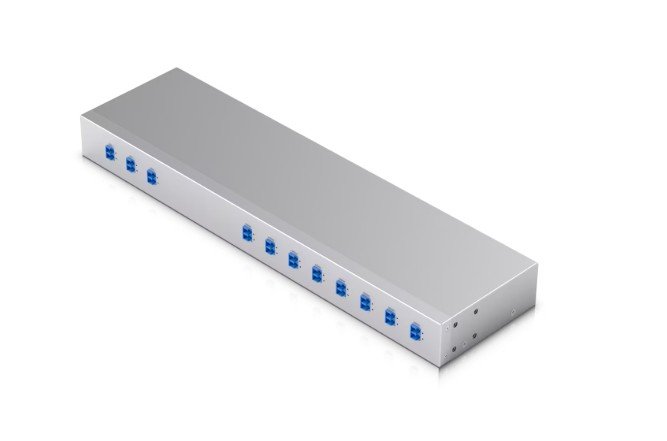

The Ubiquiti UACC-CWDM-8 is a rack-mountable CWDM multiplexer/demultiplexer designed to expand fiber capacity by combining or separating up to 8 wavelengths across a single fiber link. Engineered for single-mode fiber deployments, it supports channel wavelengths from 1450 to 1590 nm and includes COM, MON, and EXP ports for flexible monitoring and expansion. Ideal for enterprise and carrier-grade networks requiring scalable fiber infrastructure.
🌟 Top Highlights
🔗 8 CWDM Channels – Supports 1450 to 1590 nm wavelengths for fiber multiplexing
📏 Rack-Mountable Design – Fits standard 19″ racks for streamlined deployment
🧵 Single-Mode Fiber Support – Optimized for long-distance, low-loss transmission
📡 COM, MON, EXP Ports – Enables monitoring and expansion with LC UPC connectors
🛠️ Durable SGCC Steel Enclosure – Provides robust protection in demanding environments
📐 Technical Details
| Specification | Details |
|---|---|
| Product Type | CWDM Mux/Demux |
| Channel Count | 8 Channels |
| Channel Wavelengths | 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 nm |
| Connector Type | LC UPC (COM, MON, EXP) |
| Fiber Type | Single-Mode (SMF-28e) |
| Insertion Loss | ≤ 2.5 dB |
| Return Loss | ≥ 50 dB |
| Isolation (Adjacent) | ≤ 30 dB |
| Isolation (Non-Adjacent) | ≥ 40 dB |
| Passband Ripple | ≤ 0.3 dB |
| Polarization Dependent Loss | ≤ 0.1 dB |
| Polarization Mode Dispersion | ≤ 0.1 ps |
| Max Power Handling | 500 mW |
| Dimensions | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7 in) |
| Weight | 1.4 kg (3.2 lb) |
| Enclosure Material | SGCC Steel |
💡 Why You Should Buy It
✅ Expands fiber capacity without additional cabling
✅ Supports 8 CWDM channels for scalable deployments
✅ Includes monitoring and expansion ports for advanced network management
✅ Durable rack-mountable design for professional installations
🎯 Recommended Use Cases
➤ Fiber infrastructure expansion in enterprise networks
➤ Carrier-grade CWDM deployments
➤ Long-distance single-mode fiber multiplexing
➤ Rack-mounted fiber distribution systems
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted as per standard reseller terms and conditions
🚚 Shipping Info: Delivery handled by reliable logistics partners with tracking support
📞 Customer Support: Assistance available via official support channels and authorized resellers
👉 Call to Action
Scale your fiber network with precision CWDM technology built for performance and flexibility
