🛍️ Product Name

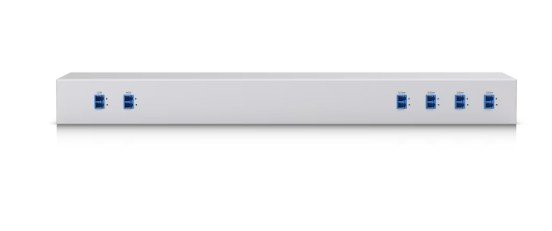

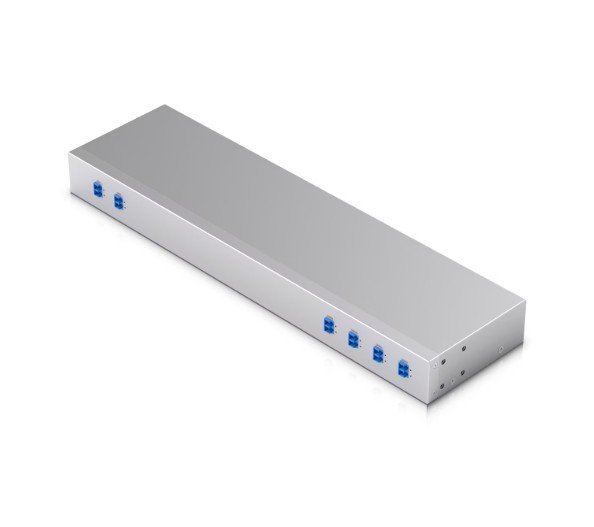

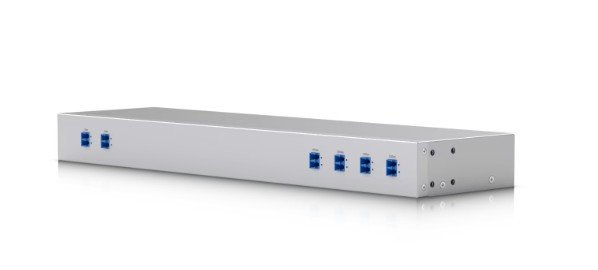

Ubiquiti UACC-CWDM-4 CWDM Mux Demux 4, 4‑Channel Passive Multiplexer/Demultiplexer, Rack‑Mountable
📦 Product Overview
The UACC-CWDM-4 is a passive coarse wavelength division multiplexer/demultiplexer designed to combine or separate up to four optical wavelengths over a single fiber. It enables efficient fiber utilization, reduces infrastructure costs, and supports high‑capacity networking in enterprise and data center environments.
🌟 Top Highlights
⚡ 4‑Channel CWDM – Supports multiplexing/demultiplexing of four wavelengths
🔌 Passive Design – No external power required for operation
📏 Compact Form Factor – Rack‑mountable for easy integration
🔗 High Compatibility – Works with CWDM optical modules
🛡️ Reliable Performance – Low insertion loss and stable operation
📐 Technical Details
| Specification | Details |
|---|---|
| Type | CWDM Passive Multiplexer/Demultiplexer |
| Channel Count | 4 |
| Wavelength Range | 1270 nm – 1610 nm (CWDM grid) |
| Connector Type | LC/UPC Duplex |
| Insertion Loss | ≤ 1.5 dB |
| Return Loss | ≥ 45 dB |
| Isolation | ≥ 30 dB adjacent channel |
| Operating Temperature | -20°C to 70°C |
| Mounting | Rack‑mountable enclosure |
| Application | Fiber multiplexing/demultiplexing for enterprise and data center networks |
💡 Why You Should Buy It
✅ Maximizes fiber utilization by combining multiple wavelengths
✅ Passive design reduces complexity and power requirements
✅ Compact rack‑mountable unit integrates easily into existing setups
✅ Ensures stable, low‑loss optical performance for critical applications
🎯 Recommended Use Cases
➤ Expanding fiber capacity in enterprise networks
➤ Data center interconnects requiring multiple wavelengths
➤ Metro or campus fiber backbone deployments
➤ Cost‑effective wavelength management without active equipment
🤝 Customer Assurance
🛡️ Warranty / Guarantee: Coverage available through manufacturer support
🔄 Returns Policy: Returns accepted under standard reseller terms and conditions
🚚 Shipping Info: Secure delivery with tracking via trusted logistics partners
📞 Customer Support: Assistance available via authorized support channels and resellers
👉 Call to Action
Optimize your fiber infrastructure with this efficient 4‑channel CWDM mux demux today.
