EAP223

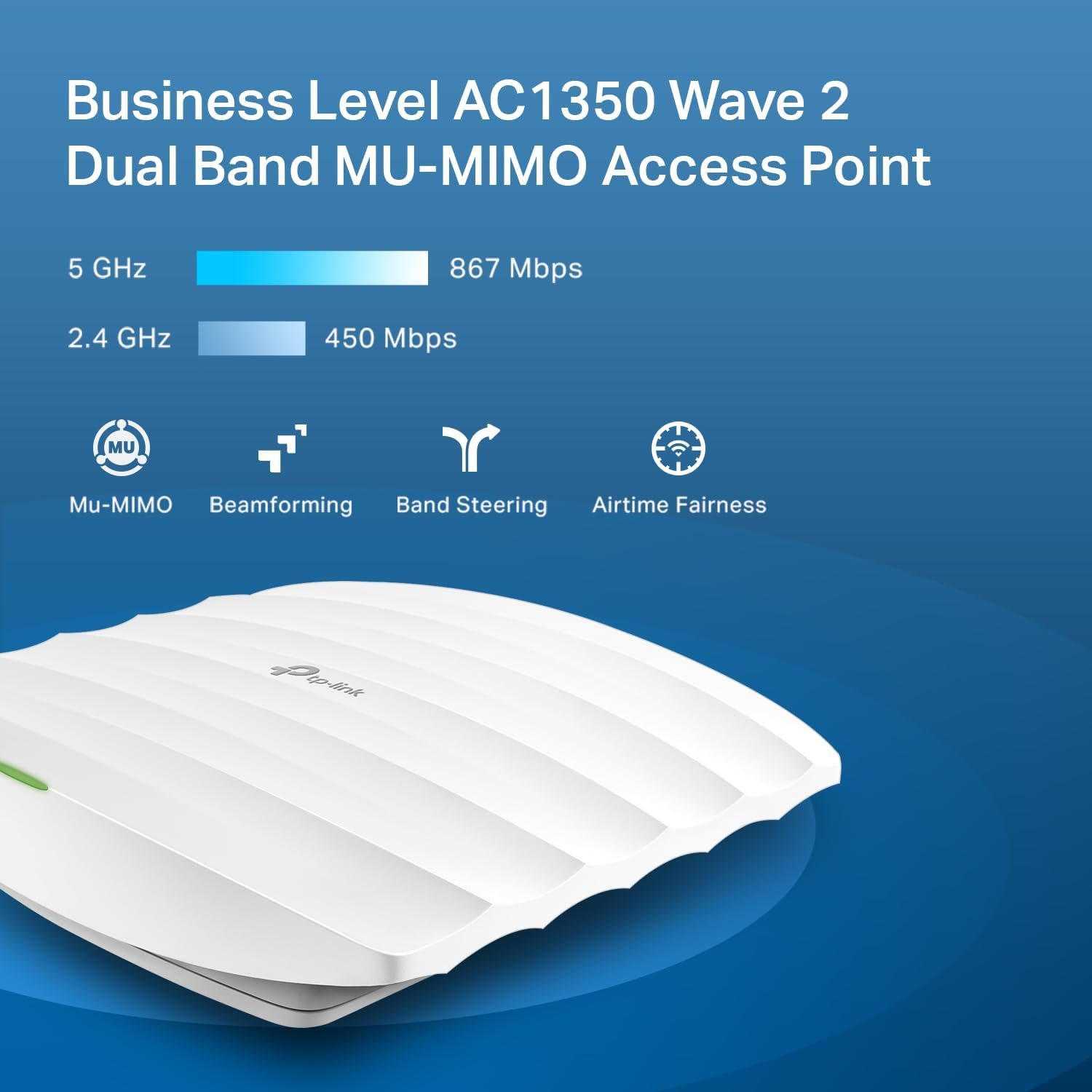

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Fast Dual-Band Wi-Fi:?Simultaneous 450 Mbps on 2.4 GHz?and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.?
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)?, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoE?Support: Support both?standard 802.3af/at and Passive PoE (PoE adapter is not included)?for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
| HARDWARE FEATURES | |
|---|---|
| Interface | Gigabit Ethernet (RJ-45) Port?1 (Support IEEE802.3af/at PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | ? 802.3af/at PoE ? 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included) |
| Power Consumption | EU: 9.7W US: 12.1W |
| Dimensions ( W x D x H ) | 8.1 ? 7.1 ? 1.5 in (205.5 ? 181.5 ? 37.1 mm) |
| Antenna Type | 3 Internal Omni ? 2.4 GHz: 4 dBi ? 5 GHz: 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | ? 5 GHz:Up to 867 Mbps ? 2.4 GHz:Up to 450 Mbps |
| Wireless Functions | ? Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band) ? Enable/Disable Wireless Radio ? Automatic Channel Assignment ? Transmit Power Control (Adjust Transmit Power on dBm) ? QoS(WMM) ? Seamless Roaming* ? Omada Mesh* ? Band Steering ? Load Balance ? MU-MIMO ? Airtime Fairness ? Beamforming ? Rate Limit ? Reboot Schedule ? Wireless Schedule ? Wireless Statistics based on SSID/AP/Client |
| Wireless Security | ? Captive Portal Authentication* ? Access Control ? Wireless Mac Address Filtering ? Wireless Isolation Between Clients ? SSID to VLAN Mapping ? Rogue AP Detection ? 802.1X Support |
| Transmission Power | ? CE: ?20 dBm(2.4 GHz, EIRP) ?23 dBm(5 GHz, EIRP) ? FCC: ?24 dBm(2.4 GHz) ?22 dBm(5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | ? Omada Hardware Controller OC300 ? Omada Hardware Controller OC200 ? Omada Software Controller ? Omada Cloud-Based Controller |
| Cloud Access | Yes, through ? OC300 ? OC200 ? Omada Software Controller ? Omada Cloud-Based Controller |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | ? AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223 ? Mounting Kits ? Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | ? Operating Temperature: 0?40 ? (32?104 ?) ? Storage Temperature: -40?70 ? (-40?158 ?) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
