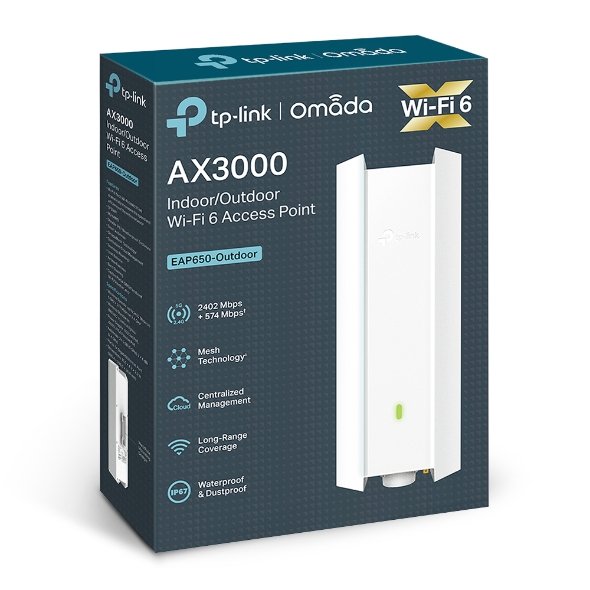

EAP650-Outdoor
AX3000 Indoor/Outdoor WiFi 6 Access Point
- Superior WiFi 6 Speeds:?Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
- Higher Network Efficiency:?Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
- 160 MHz Bandwidth Channel:?Double the data at peak transmission times on a single stream with HE160.2
- Long-Range Coverage:?Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
- Omada Mesh Technology:?Enables wireless connectivity between access points for extended range and flexible deployment.3
- Stay Smooth with Seamless Roaming:?Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
- PoE Powered:?: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1? Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Button | Reset |
| Power Supply | ? 802.3at PoE ? 48V Passive PoE (PoE Adapter Included) |
| Power Consumption | ? EU: 12.5W (802.3at PoE or Passive PoE) ? US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | ? 280.4?106.5?56.8 mm (without antenna & mounting kit) |
| Antenna | ? 2.4 GHz: 2? 4 dBi ? 5 GHz: 2? 5 dBi |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Client Capacity | 250+6 |
| Concurrent Clients | 250+6 |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | ? 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) ? 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) ? 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) ? 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps ? 802.11b: 1, 2, 5.5, 11 Mbps ? 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Transmit Power | ? CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) ? FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
| Wireless Functions | ? 1024-QAM ? 4? Longer OFDM Symbol ? OFDMA ? Multiple SSIDs (Up to 16 SSIDs, 8 for each band) ? Enable/Disable Wireless Radio ? Automatic Channel Assignment ? Transmit Power Control (Adjust Transmit Power on dBm) ? QoS (WMM) ? MU-MIMO ? Omada Mesh3 ? Seamless Roaming3 ? Band Steering ? Load Balance ? Airtime Fairness ? Beamforming ? Rate Limit ? Reboot Schedule ? Wireless Schedule ? Wireless Statistics based on SSID/AP/Client |
| Wireless Security | ? Captive Portal Authentication3 ? Access Control ? Wireless Mac Address Filtering ? Wireless Isolation Between Clients ? SSID to VLAN Mapping ? Rogue AP Detection ? 802.1X Support ? WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | ? Omada Cloud-Based Controller ? Omada Hardware Controller (OC300) ? Omada Hardware Controller (OC200) ? Omada Software Controller |
| Cloud Access | Yes, through ? Omada Cloud-Based Controller ? OC300 ? OC200 ? Omada Software Controller |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | ? Access Point EAP650-Outdoor ? Passive PoE Adapter ? Power Cord ? Mounting Kits ? Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | ? Operating Temperature: -30?70 ? (-22?158 ?) ? Storage Temperature: -40?70 ? (-40?158 ?) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
