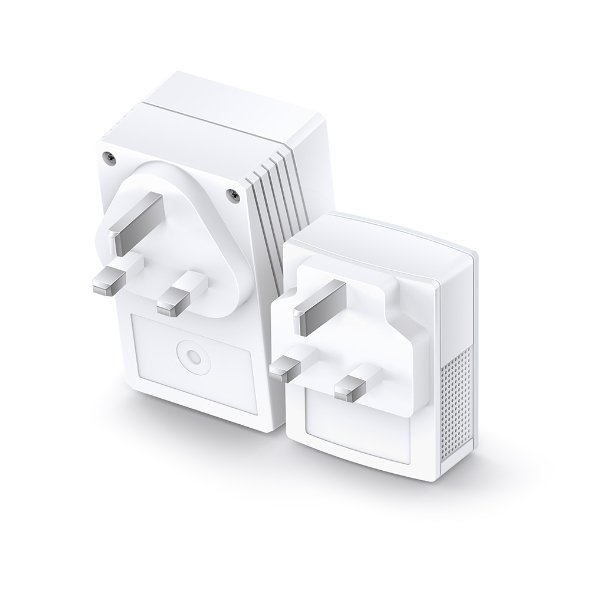

AV600 Powerline Wi-Fi Kit
- HomePlug AV2 Standard – Provides fast powerline transfer speeds of up to 600 Mbps*
- 300Mbps Wi-Fi – Extend 300 Mbps wireless connections to previously hard-to-reach areas of your home and office*

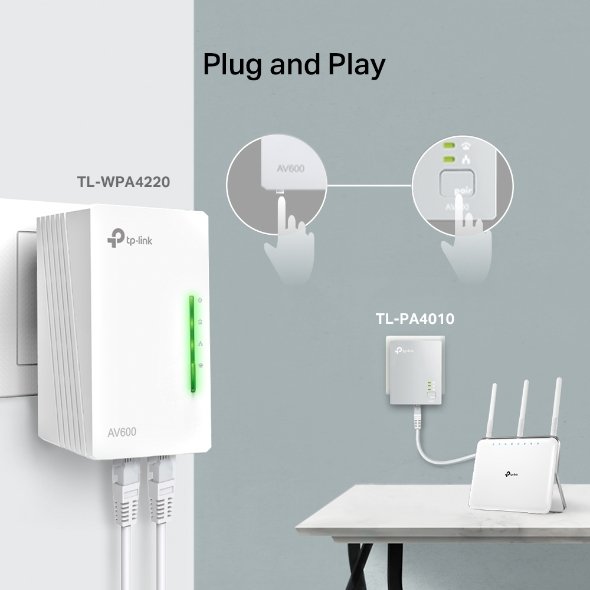

- Plug and Play – Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes.
- 2 Ethernet Ports – The TL-WPA4220 (Wi-Fi?extender) provides reliable high-speed wired connection for game consoles, smart TVs and more.
- One-Touch Wi-Fi Configuration – One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network.
- Wi-Fi Auto-Sync – Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
- Easy Management – Gives you easy control of your network through a powerful web interface, the user-friendly tpPLC Utility and the intuitive tpPLC mobile app
| HARDWARE FEATURES | |
|---|---|
| Transmission Speeds | Powerline: up to 600 Mbps Ethernet: 10/100 Mbps |
| Standards and Protocols | HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n |
| Compatibility | Compatible with all HomePlug AV & AV2 standard powerline adapters |
| Plug Type | EU |
| Interface | TL-WPA4220: 2 Ethernet Ports TL-PA4010: 1 Ethernet Port |
| Button | Pair, Reset, Wi-Fi Clone |
| Power Consumption | TL-WPA4220: Maximum: 5.6W, Typical: 5.2W TL-PA4010: Maximum: 2.6W, Typical: 2.3W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi |
| Dimensions ( W x D x H ) | TL-WPA4220: 2.1 ? 1.6 ?3.7 in (54 ? 40 ? 94 mm) TL-PA4010: 2.0 ? 1.1 ? 2.6 in (52 ? 28.5 ? 65 mm) |
| Range | Up to 300 meters/1000 feet over existing electrical wiring |
| WIRELESS FEATURES | |
|---|---|
| Wireless Security | WPA-PSK / WPA2-PSK, WEP Encrptions |
| SOFTWARE FEATURES | |
|---|---|
| Management | tpPLC-Scan the QR code to download TP-Link tpPLC App. Or download new tpPLC Utility on PCs: www.tp-link.com. |
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES Encryption Wireless Security:WPA-PSK / WPA2-PSK, WEP Encrptions |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010 2? Ethernet Cables 1? Quick Installation Guide |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | Operating Temperature: 0?C~40?C (32?F~104?F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
