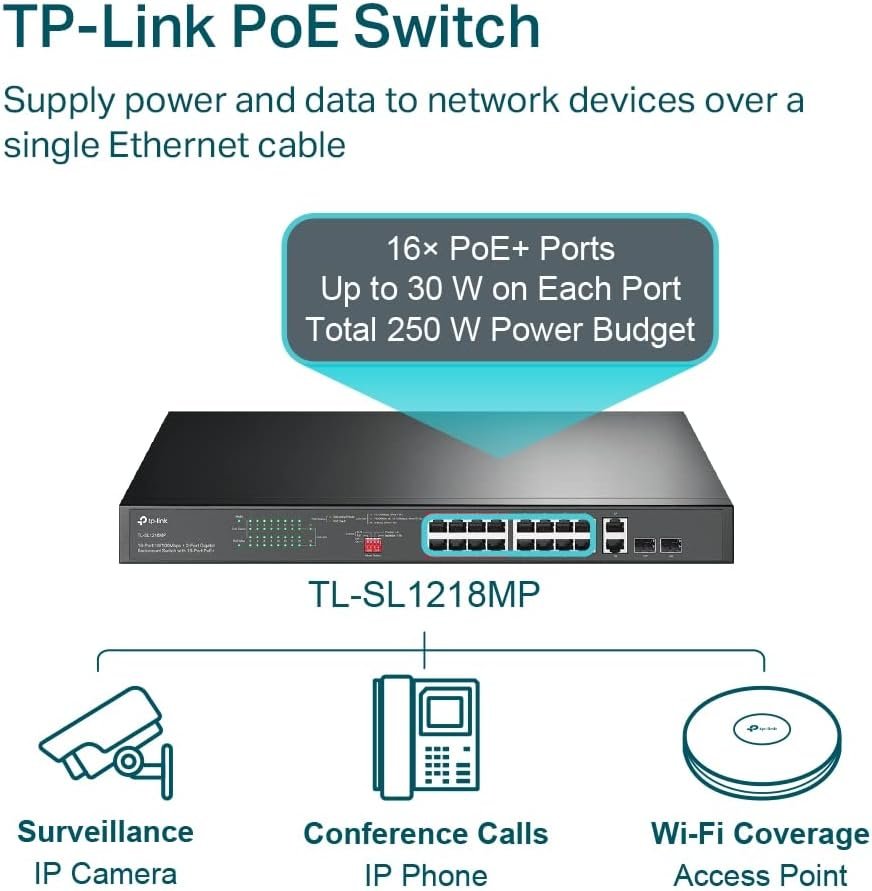

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
- 16? PoE+ 10/100 Mbps RJ45 ports, 2? Gigabit RJ45 ports,?and 1× combo Gigabit SFP slot.
- High PoE power budget with up to 30 W for each PoE port and 150?W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
- Priority mode for ports 1?8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
SPECIFICATIONS
| Interface | ? 16? PoE+ 10/100 Mbps RJ45 Ports ? 2? 10/100/1000 Mbps RJ45 Ports ? 1? Combo Gigabit SFP Slot |
|---|---|
| Network Media | ? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100?240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | ? Standard: 802.3at/802.3af compliant ? PoE Ports: Ports 1?16 ? PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 17.3 ? 7.1 ? 1.7 in (440 ? 180 ? 44 mm) |
| Max Power Consumption | ? 12.7 W (no power device connected) ? 172.8 W (with 150W power devices connected) |
| Max Heat Dissipation | ? 43.3 BTU/h (no power device connected) ? 589.3 BTU/h (with 150W power devices connected) |
