THERMALRIGHT TR-TG 650-W
- 80PLUS gold certification, 50% load, beyond 90% conversion efficiency
- Support ATX3.0, 200% peak output of the whole power consumption
- LLC resonance + DC-DC circuit design
- 105° temperature-resistant Japanese electrolytic capacitors, stable power supply

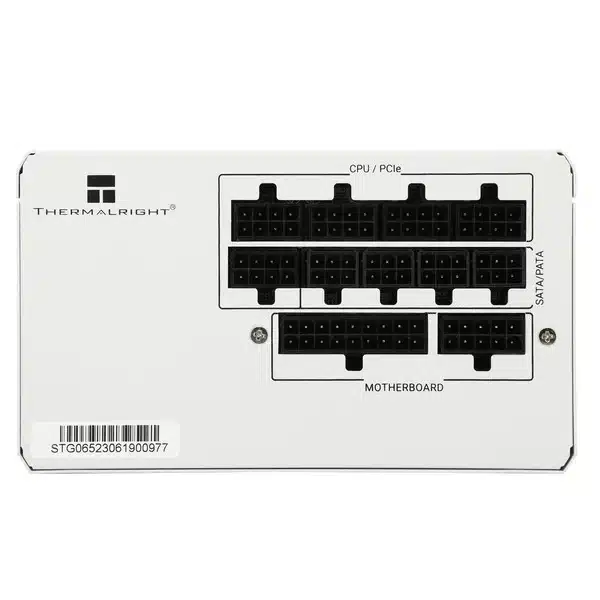

- Full-module cable design, customized full-module flat cable, reducing cable management troubles.
- Customized snow-white modular cables and plug wires to ensure a clean and white finish.
- Intelligent temperature-controlled start/stop 120mm fan, quiet low load, strong cooling high load
- Over-voltage, low-voltage, over-power, short-circuit, high-temperature multi-protection design, improve safety
- 100-240V full voltage design, multiple circuits, protection plus support.
Specifications
Dimension: L150 mm x W140 mm x H86 mm±1 mm
Wattage：650W
Efficiency：80 PLUS GOLD
Modular：Full-Modular
Input Voltage：100-240Vac
Input Current：10-5A
Input Frequency：47-63Hz
Fan Size：120 mm
Operating Temperature：0-40°C
MTBF：>100K Hours
Protections：OPP/OVP/OTP/OCP/SCP/UVP
