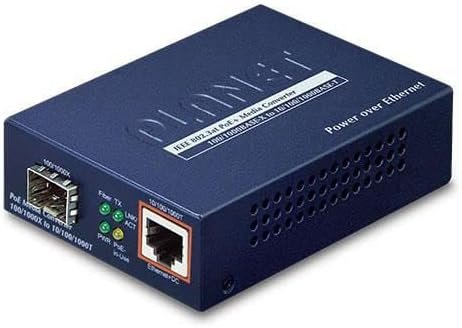

Planet GTP-805A 802.3at PoE+ Gigabit Media Converter – 10/100/1000Base-T to 1000Base-X SFP, 30W PoE Output, Compact Design
📦 Product Overview
The Planet GTP-805A is a single-port Gigabit media converter with built-in IEEE 802.3at PoE+ injector. It converts 10/100/1000Base-T copper Ethernet to 1000Base-X fiber via SFP slot, while supplying up to 30W of PoE power to connected PDs such as IP cameras, wireless APs, and VoIP phones. Designed for long-distance fiber deployments and remote PoE applications, it supports jumbo frames, auto MDI/MDI-X, and operates in harsh environments with wide temperature tolerance.
🌟 Top Highlights
🔌 PoE+ Injector Built-In – Supplies up to 30W per IEEE 802.3at
🔄 RJ45 to SFP Conversion – Converts 10/100/1000Base-T to 1000Base-X
📡 SFP Slot – Compatible with multi-mode and single-mode fiber modules
📦 Jumbo Frame Support – Up to 9K bytes for high-performance data
🧱 Compact Metal Housing – Ideal for desktop or DIN-rail mounting
📐 Technical Details
| Specification | Details |
|---|---|
| Model | GTP-805A |
| Copper Interface | 1 × RJ45 10/100/1000Base-T (PoE+) |
| Fiber Interface | 1 × SFP slot (1000Base-X) |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Output | Up to 30W |
| Jumbo Frame | Up to 9K bytes |
| Power Input | 48~56V DC |
| Dimensions | 94 × 70 × 26 mm |
| Weight | ~200g |
| Operating Temp | 0°C to 50°C |
| Certifications | FCC Class A, CE |
💡 Why You Should Buy It
✅ Combines fiber conversion and PoE+ injection
✅ Ideal for remote IP cameras and APs
✅ Compact and easy to deploy
✅ Supports long-distance fiber via SFP modules
🎯 Recommended Use Cases
➤ Remote IP surveillance
➤ Wireless AP deployments
➤ VoIP phone installations
➤ Industrial and campus fiber networks
