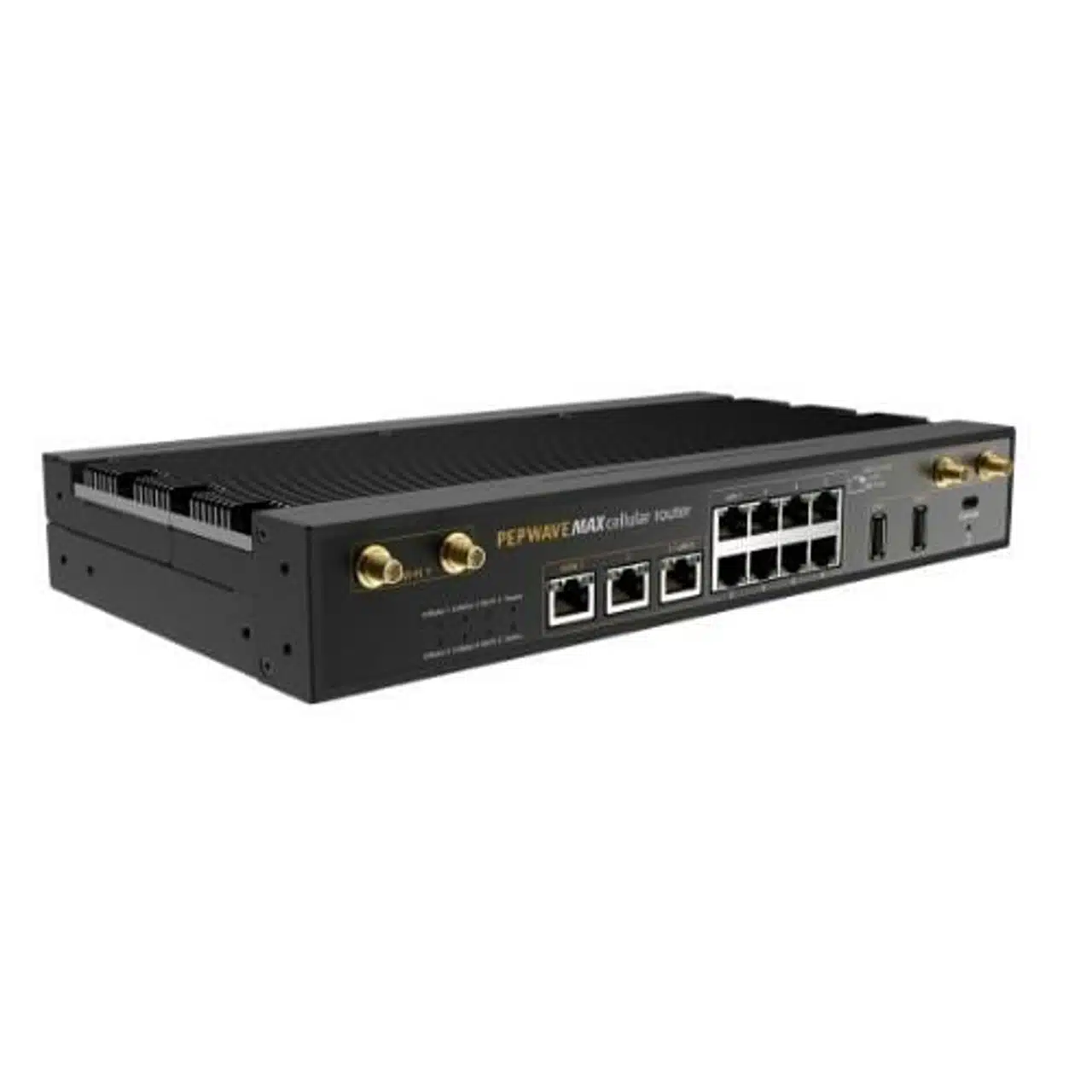

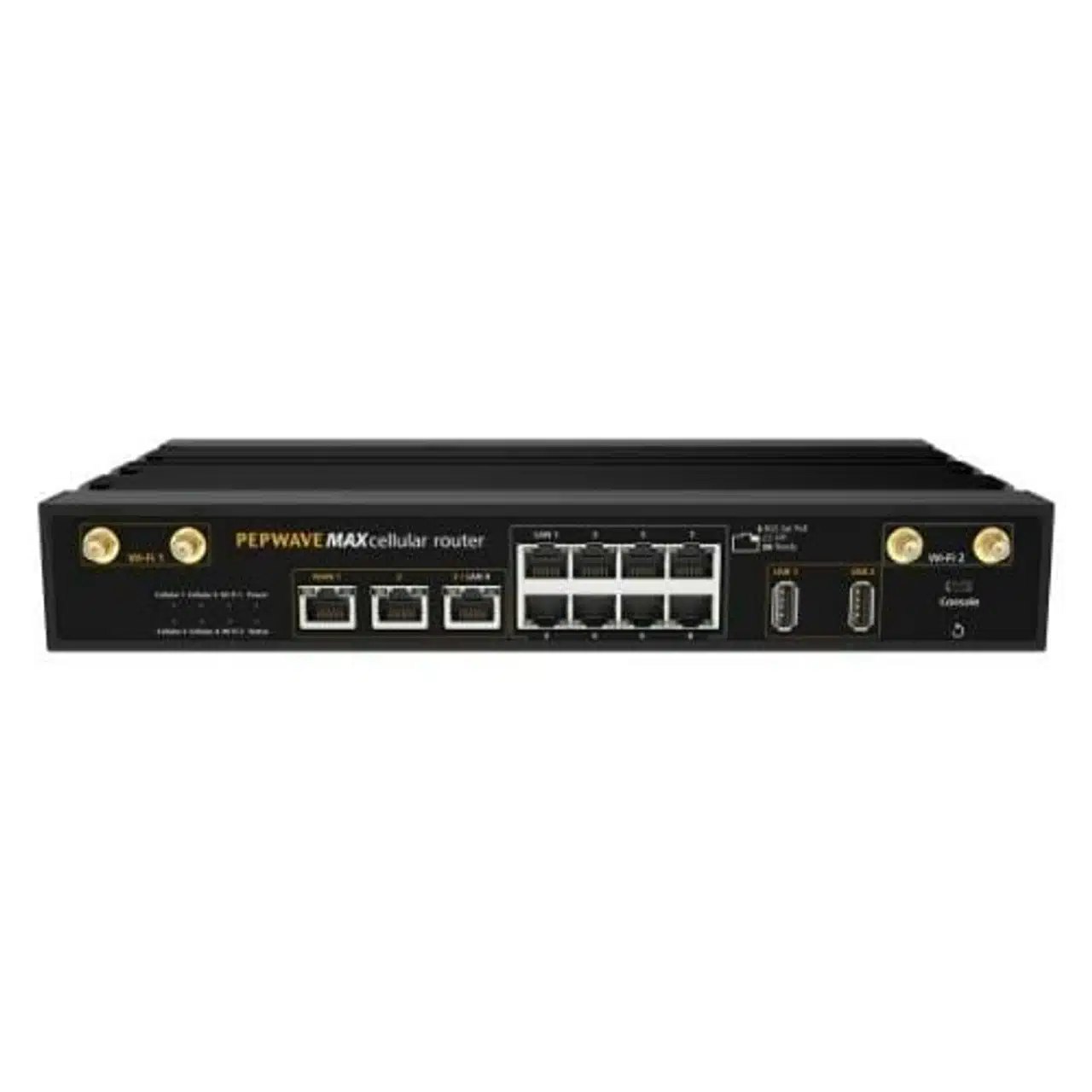

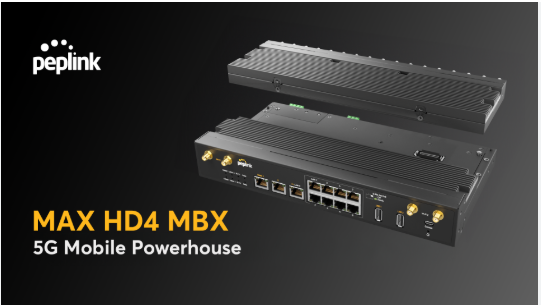

Peplink MAX HD4 MBX GLTE(MAX-HD4-MBX-5GN-T)
The Peplink MAX HD4 MBX 5G (MAX‑HD4‑MBX‑5GN‑T) is a quad cellular SD‑WAN powerhouse router, ideal for mobile, industrial, or mission-critical deployments where high bandwidth and redundancy matter.
SPECIFICATIONS
- WAN Interface: 3x 10/100/1000M Ethernet, 4x Embedded Cellular Modems with Redundant SIM Slots, 2x USB Interface
- LAN Interface: 9x 10/100/1000M Ethernet
- WiFi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 5 2×2 MIMO Wi-Fi WAN and/or AP
- SpeedFusion Features: Hot Failover, Smoothing, Bandwidth Bonding
- Number of SpeedFusion VPN Peers: 3 / 20
- Features: Ignition Sensing
- Router Throughput: 2.5Gbps
- SpeedFusion Throughput (No Encryption): 600 Mbps
- SpeedFusion Throughput (256-bit AES): 500 Mbps
- Recommended Users:50-500
- Cellular Data Rate (Downlink / Uplink): 5G: 4.1 Gbps / 900 Mbps CAT-20: 2 Gbps / 211 Mbps

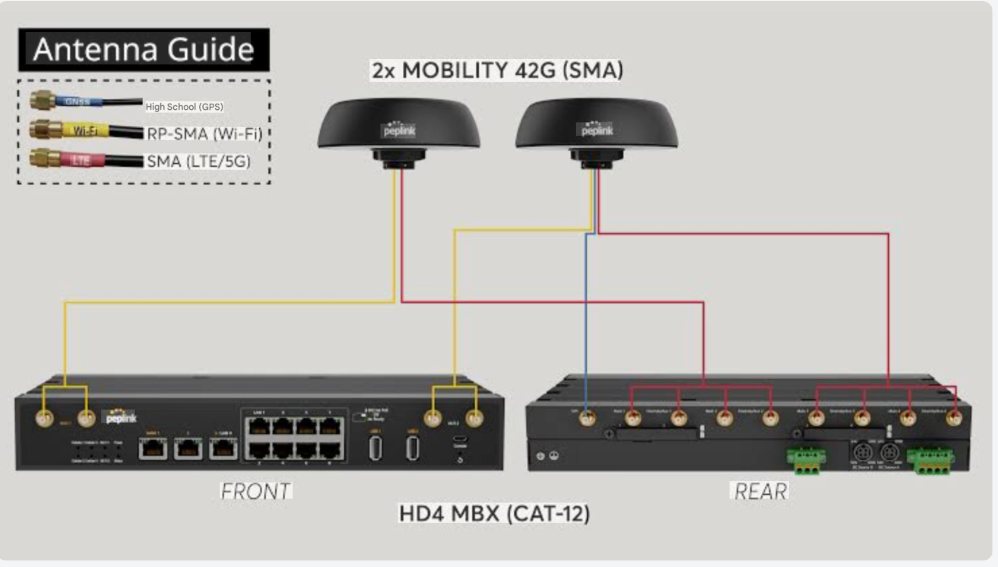

- Antenna Connectors: 16x QMA Cellular Antenna Connectors, 4x RP-SMA Wi-Fi Antenna Connectors, 1x QMA GPS Antenna Connector
- Power Input: Power Port: 12V – 56V DC AC Adapter: AC Input 100V–240V / DC Output 12V Terminal Block: 12V – 56V DC
- Power Output: Up to Eight 802.3at PoE Outputs
- Power Consumption: 55W (max.)
