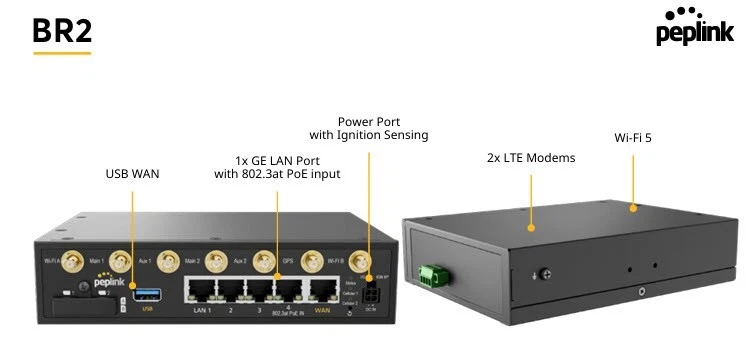

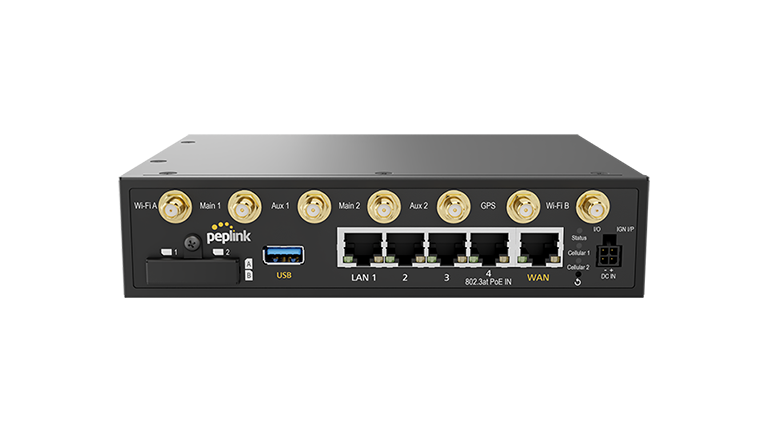

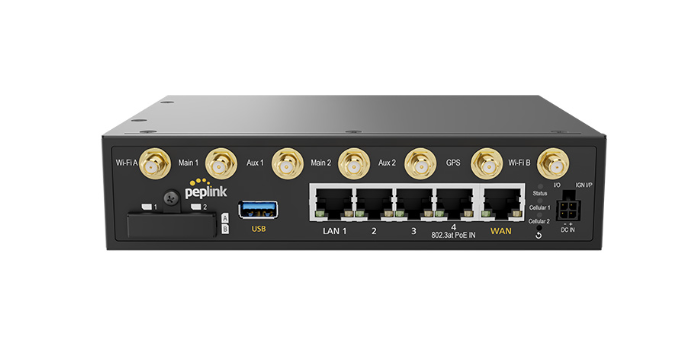

Peplink MAX BR2 LTE Router (MAX-BR2-LTE-E-T-PRM)
The Peplink MAX BR2 LTE Router is a rugged, dual-cellular LTE router designed for reliable connectivity in challenging environments. It features dual embedded CAT-4 LTE modems, multiple WAN options, and advanced SpeedFusion technology, making it suitable for deployments in vehicles, remote offices, and industrial applications.
SPECIFICATIONS
- WAN Interface: 1x 10/100/1000M Ethernet, 2x Embedded Cellular Modems with Redundant SIM Slots, 1x USB Interface
 - LAN Interface: 4x 10/100/1000M Ethernet
 - SpeedFusion features: Hot Failover / Smoothing / Bandwidth Bonding
 - Number of SpeedFusion VPN Peers: 2 / 5
 - Router Throughput: 300Mbps
 - SpeedFusion VPN Throughput – No Encryption – 256-bit AES: 80Mbps, 60Mbps
 - Recommended Users: 1-60
 - Cellular Data Rate (Downlink/Uplink): CAT-4: 150 Mbps / 50 Mbps
 - Antenna Connectors: 4x SMA Cellular Antenna Connectors, 2x RP-SMA Wi-Fi Antenna Connectors, 1x SMA GPS Antenna Connector
 - Power Input: Power Port: 12V – 30V DC, AC Adapter: AC Input 100V–240V / DC Output 12V, Terminal Block: 12V – 30V DC, Power over Ethernet 802.3at
 - Power Consumption: 8W (nominal) / 13W (max. without USB output)
 - Dimension: 6.89 x 5.12 x 1.61 inches / 175mm x 130mm x 41mm
 - Weight: 2.43 pounds / 1.1 kg
 - Operating Temperature: -40° – 149°F / -40° – 65°C
