Peplink Antenna MAX (ANT-MAX)

Original price was: $580.00.Current price is: $560.00. SGD

-3%

5 in stock

Less than 5 items left!
Peplink Antenna MAX (ANT-MAX)
Peplink Antenna MAX (ANT-MAX)
$580.00 Original price was: $580.00.$560.00Current price is: $560.00. SGD

Peplink Antenna MAX (ANT-MAX)

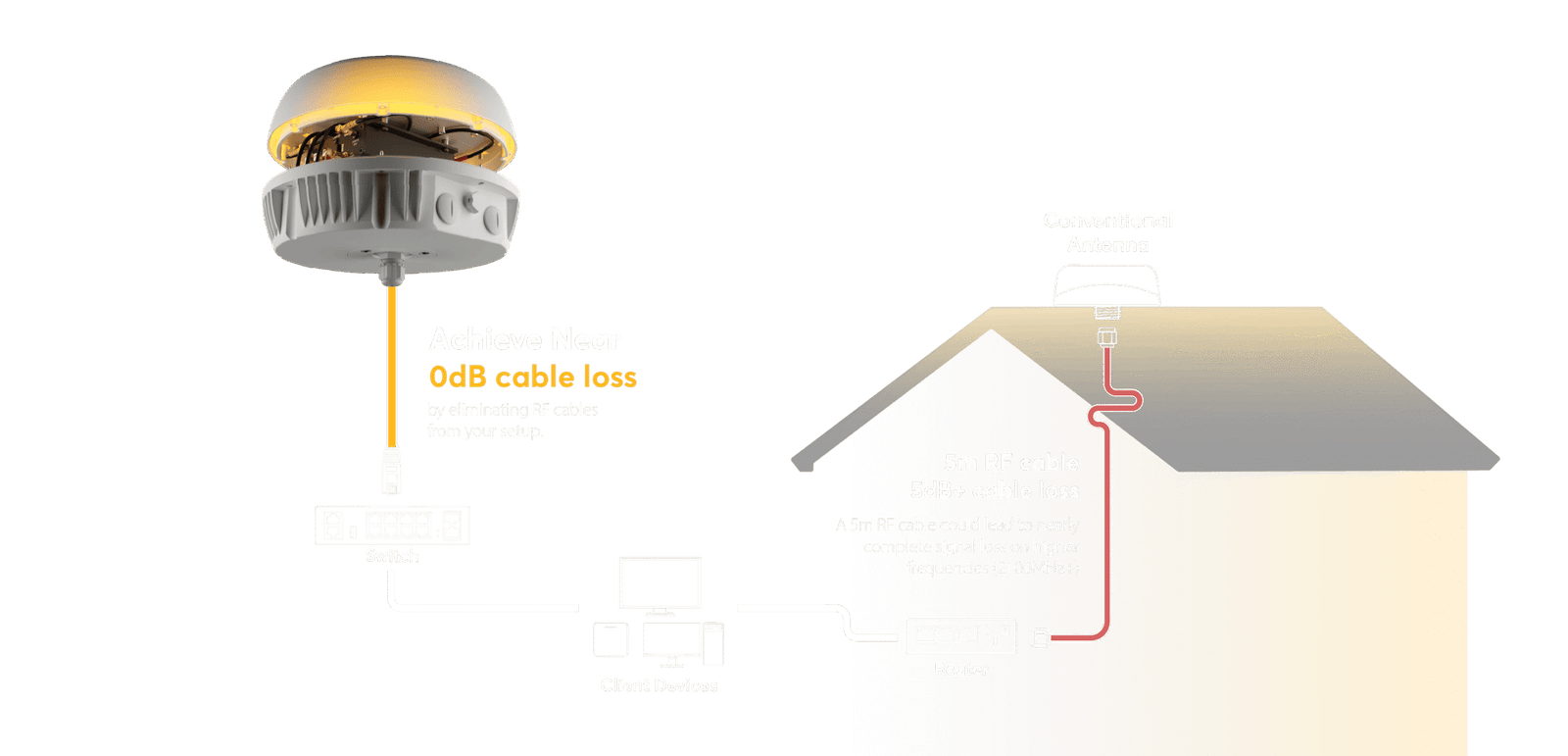

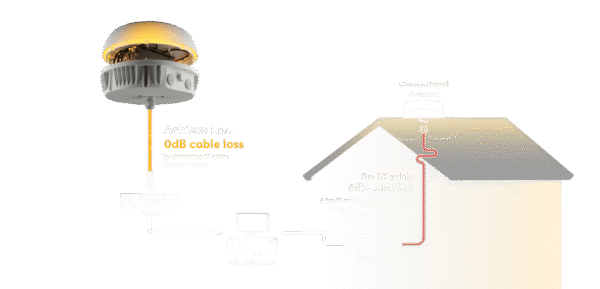

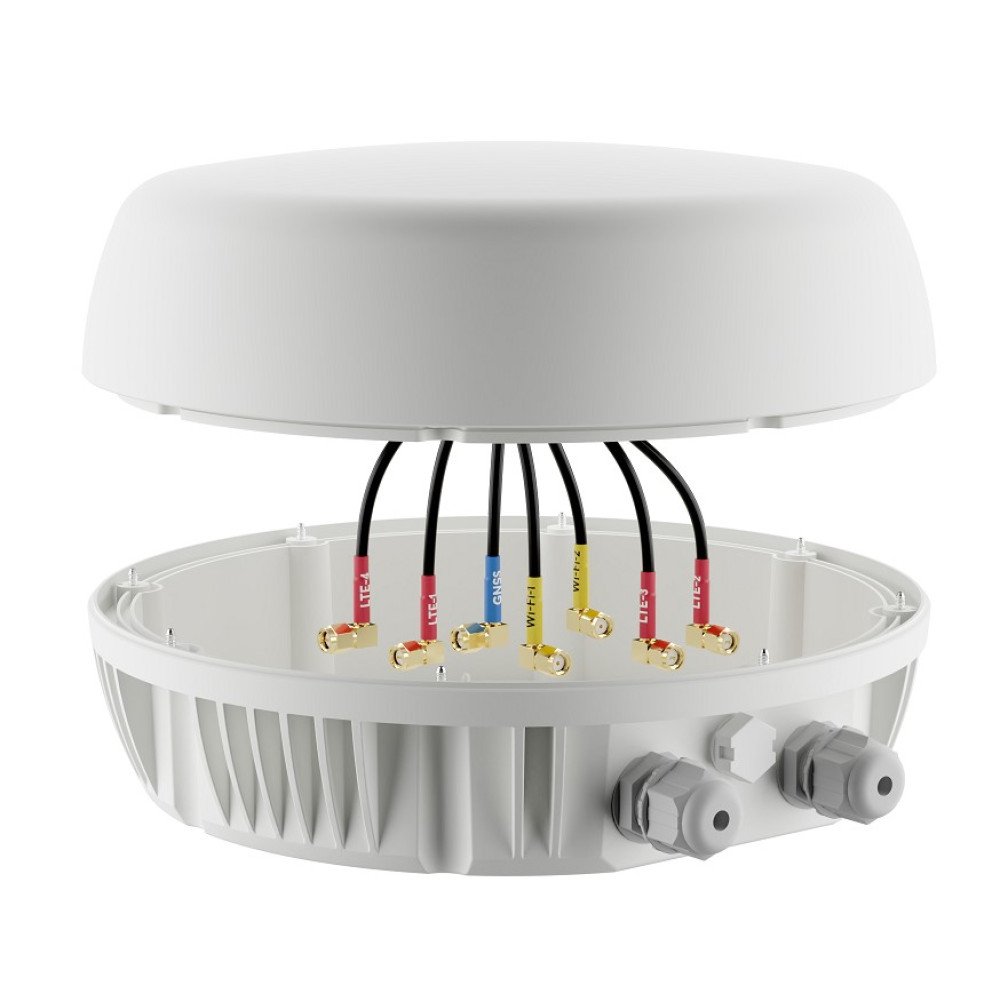

The Peplink Antenna MAX   is a rugged, all-in-one outdoor antenna enclosure designed to house compatible Peplink routers, such as the BR1 Mini Series, Transit Duo Pro, and BR1 Pro 5G. It integrates multiple high-performance antennas to enhance signal strength while minimizing cable loss by allowing the router to be installed directly within the enclosure.​

SPECIFICATIONS

  • Antenna Elements: 4 elements
  • Peak Gain & Frequencies: 3.0dBi: 617-960MHz, 6.2dBi: 1410-2700MHz, 5.7dBi: 3400-4400MHz, 6.6dBi: 5000-6000MHz
  • VSWR: < 2.5 over 95% of the band
  • Feed Power Handling: 10W
  • Input Impedance: 50 Ω
  • Polarisation: Linear
  • Connectors: Right angle SMA male
