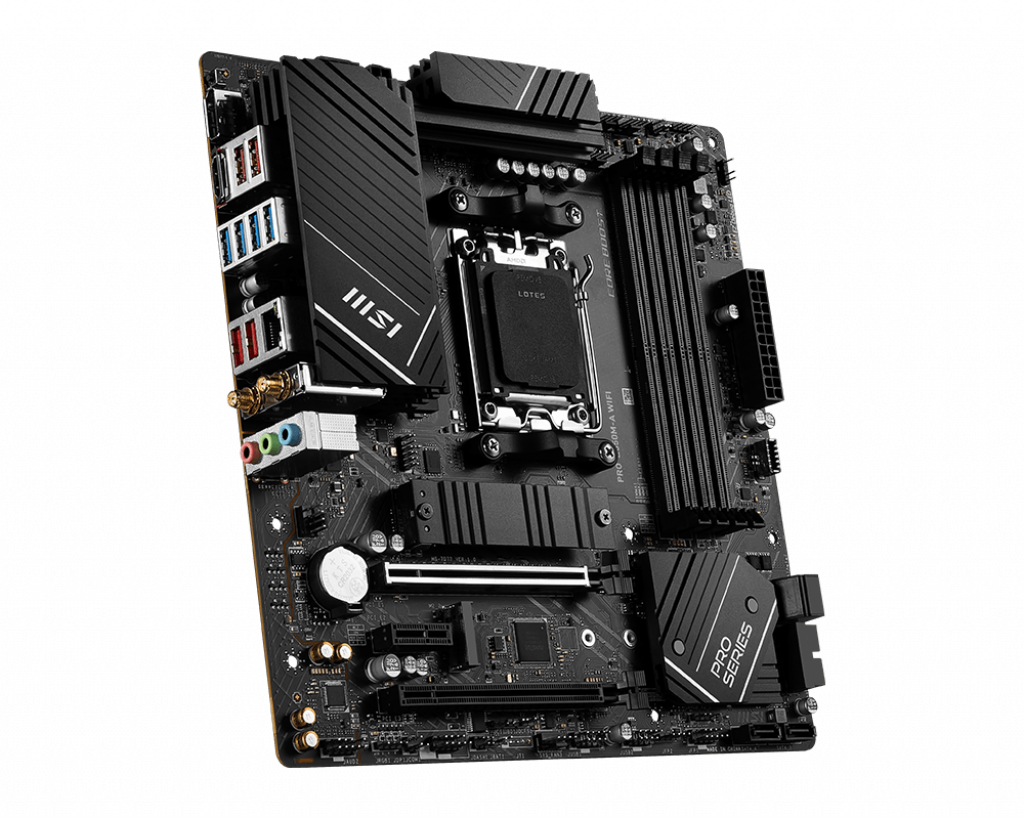

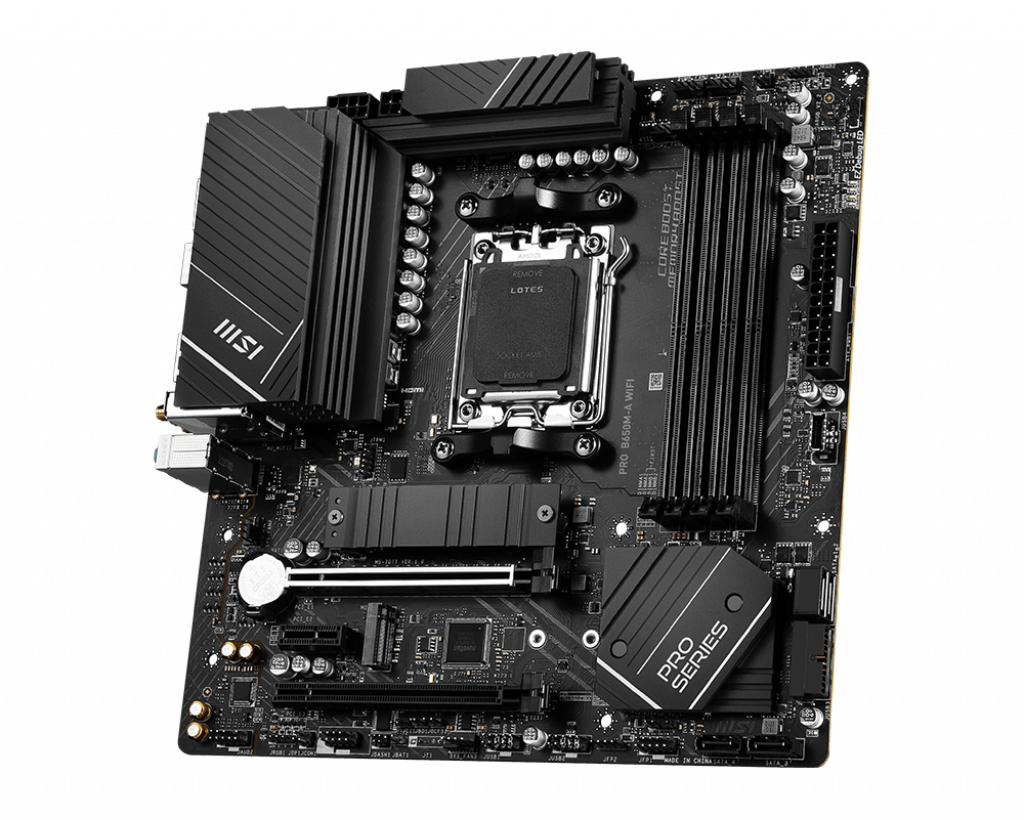

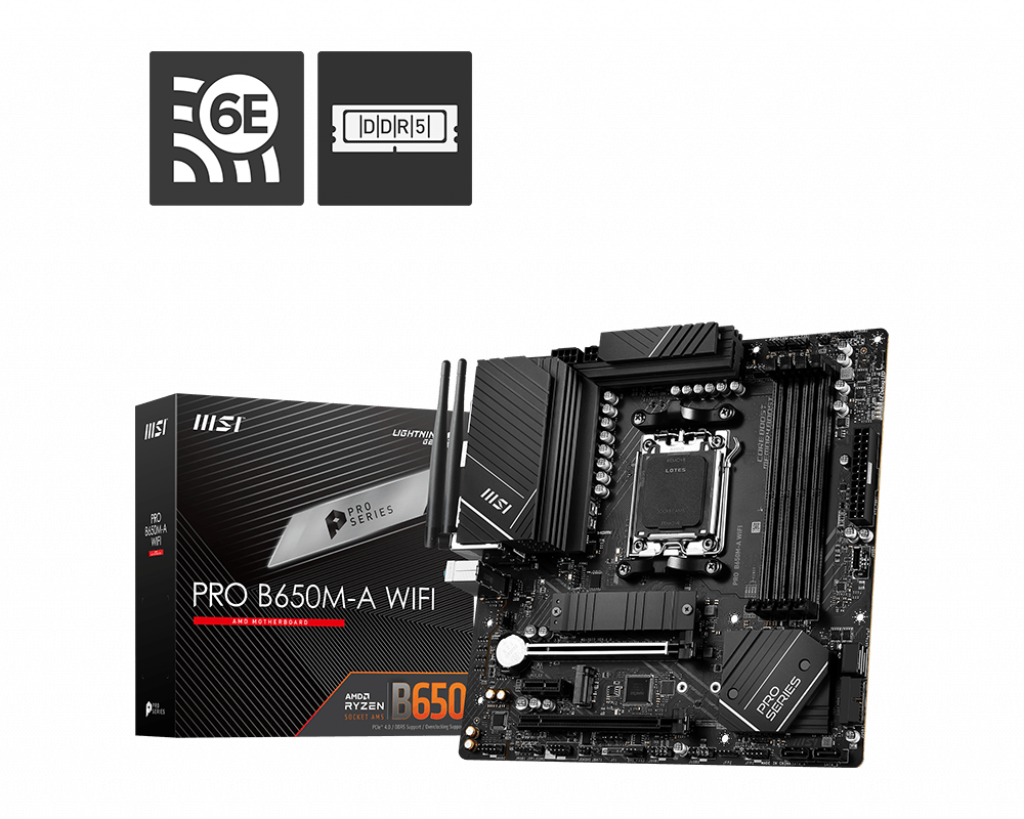

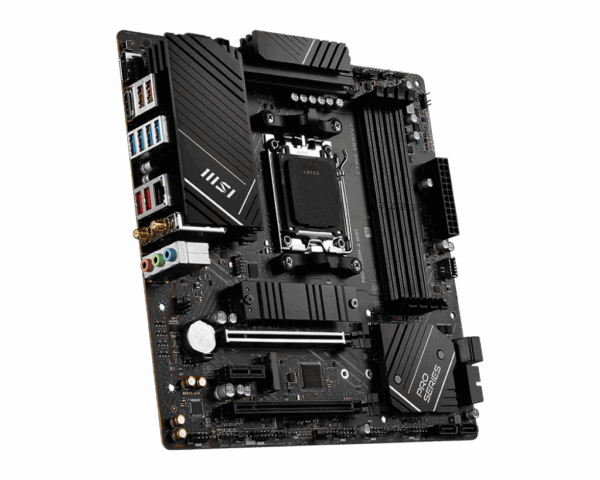

MSI Pro B650M-A Wi-Fi Motherboard
- Ryzen 7000 READY – The PRO B650M-A WIFI is a compact M-ATX motherboard outfitted with the AMD B650 chipset (AM5, Ryzen 7000 ready); The VRM features MSI Core Boost technology for improved stability & performance
- PASSIVE & AI COOLING – Passive cooling includes an extended heatsink design, M.2 Shield Frozr & an 6-layer PCB with 2 oz. thickened copper; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
- DDR5 MEMORY, DUAL PCI-E 4.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots enable high-speed memory and improve signal clarity (1DPC 1R, 6400+ MHz); 2 x PCIe 4.0 x16 slots (64GB/s) supports graphics cards
- DUAL M.2 CONNECTORS – Storage includes 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr (M2_1) to prevent SSD thermal throttling

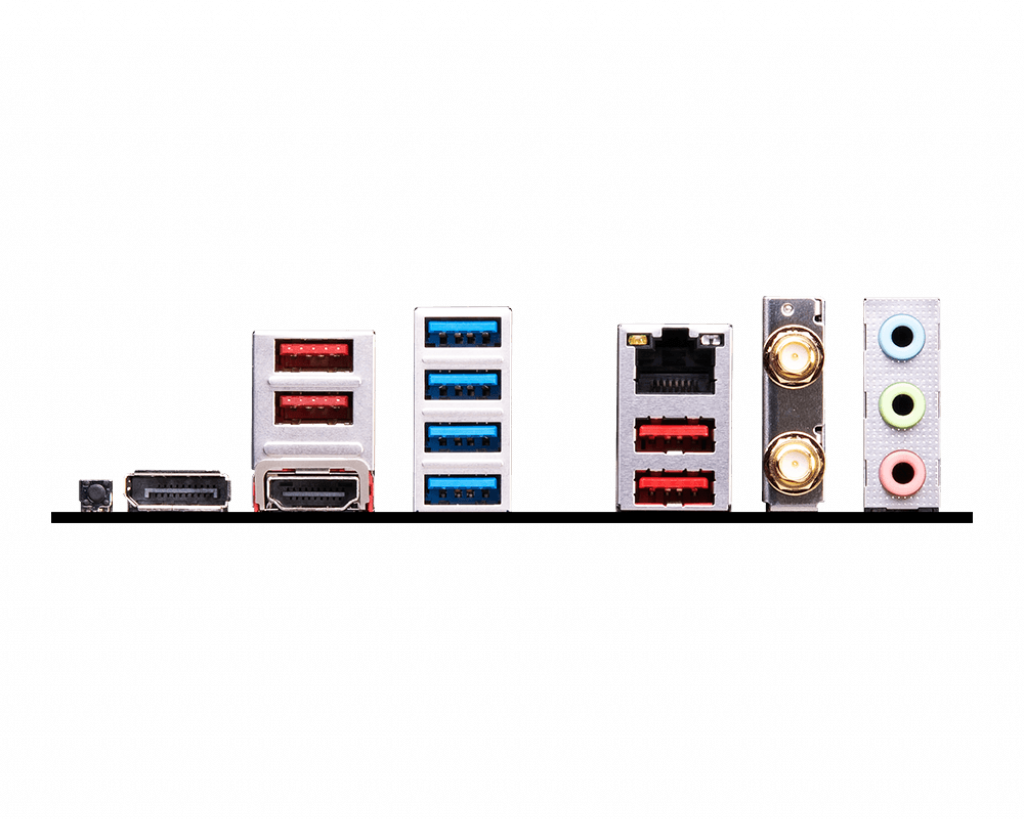

- WI-FI 6E CONNECTIVITY – Network hardware includes Wi-Fi 6E with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-A (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
SPECIFICATIONS
| Chipset | AMD B650 |
| CPU SUPPORT | Supports AMD Ryzen? 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: ? 1DPC 1R Max speed up to 6400+ MHz ? 1DPC 2R Max speed up to 5800+ MHz ? 2DPC 1R Max speed up to 6000+ MHz ? 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Onboard Graphics | 1x HDMI? 1x DisplayPort Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN | Realtek? 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth? 5.2** * Wi-Fi 6E 6GHz may depend on every country?s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek? ALC897 Codec 7.1-Channel High Definition Audio |
